Plan #2-20


  • 196,0 sq m/2110 sq ft
  • 16,6×13,6 m/54’6″×44’7″
  • 5 Beds
  • 2 Baths
  • 1 Garages
Floors: Features: ,

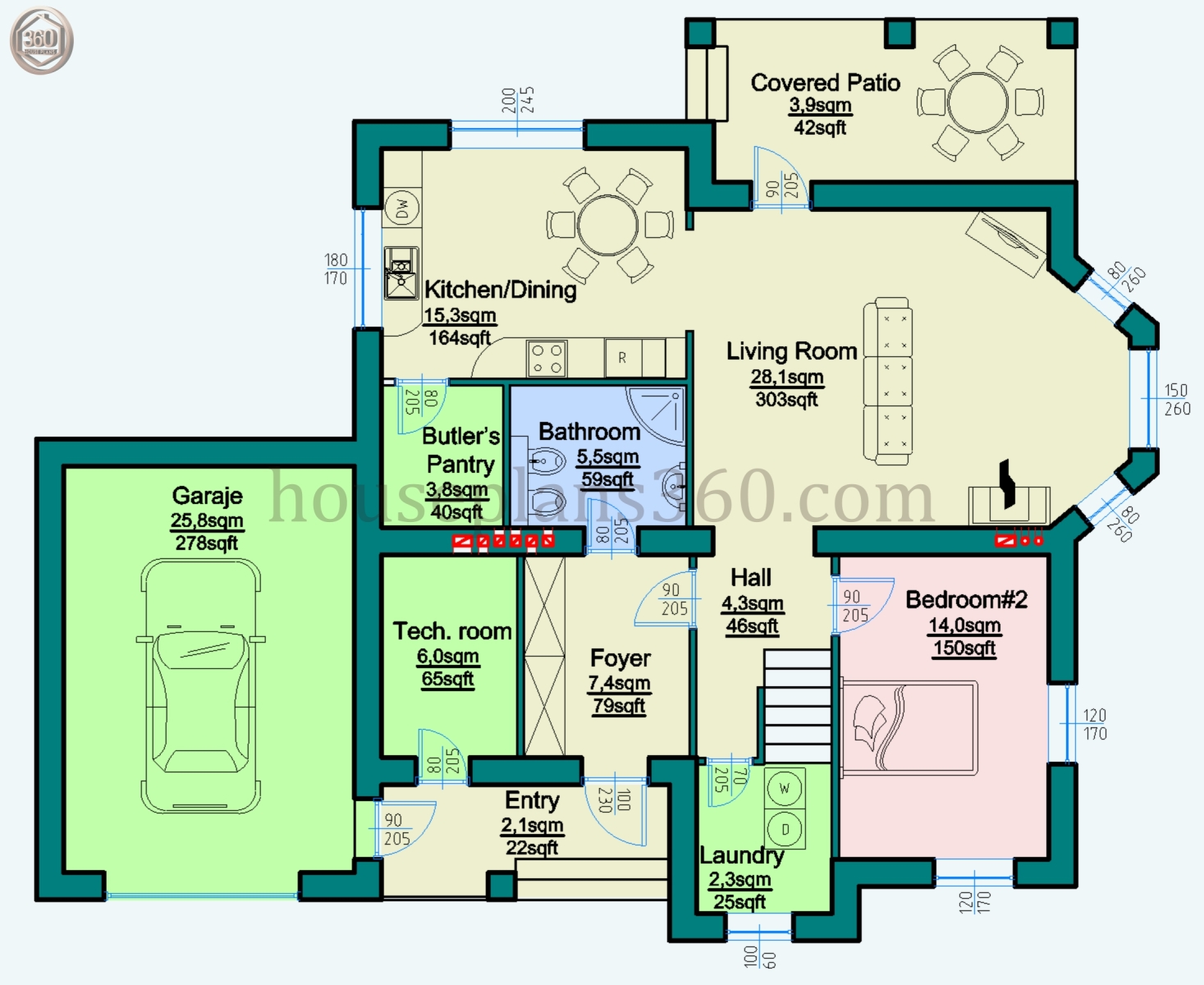

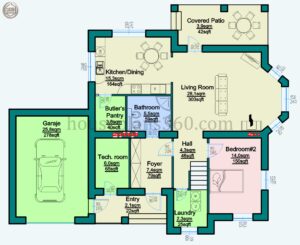

Main Floor

Image 1 of 2

Floor Area: 112.5sqm/1211sqft

We customize our house plans for all building materials and wall widths, tie the plans to the ground before selling them FREE of charge.

Edit the house plan according to your needs – Details.


mft' in"mft' in"mft' in"
16.654' 6"13.644' 7"9.731' 10"
Room Names:Width:Depth:
mft' in"mft' in"
Bathroom2.68' 6"2.16' 11"
Bathroom 2fl4.615' 1"2.37' 7"
Bedroom #23.110' 2"4.514' 9"
Bedroom #35.217' 1"3.210' 6"
Bedroom #44.615' 1"3.09' 10"
Bedroom #53.110' 2"4.514' 9"
Butler’s Pantry1.85' 11"2.16' 11"
Covered Patio5.417' 9"2.47' 10"
Entry4.314' 1"1.75' 7"
Foyer2.58' 2"3.09' 10"
Garaje4.314' 1"6.019' 8"
Hall2.06' 7"3.09' 10"
Hall 2fl2.06' 7"5.317' 5"
Kitchen/Dining4.514' 9"3.411' 2"
Laundry2.06' 7"2.27' 3"
Living Room6.521' 4"4.715' 5"
Master Bedroom4.715' 5"4.715' 5"
Technical room2.06' 7"3.09' 10"
Ground Floor:Main Floor:Upper floor:
mft' in"mft' in"mft' in"
0.00' 0"3.09' 10"2.89' 2"
Primary Tilt Angle:Secondary Tilt Angle:


5 bedroom house plans, five rooms

The presented of a beautiful two-storey house with garage is characterized by the presence of 5 bedroom house plans, one of which is on the first floor. If you need a house layout for 5 bedrooms – this is exactly the right option. Spacious rooms, the presence of all necessary auxiliary premises. Mandatory for a large family or a large number of guests. Garage as a necessary attribute of the modern family has become especially relevant, not only living outside the city and in urban areas.

Arrangement of rooms in the house (5 bedroom house plans)

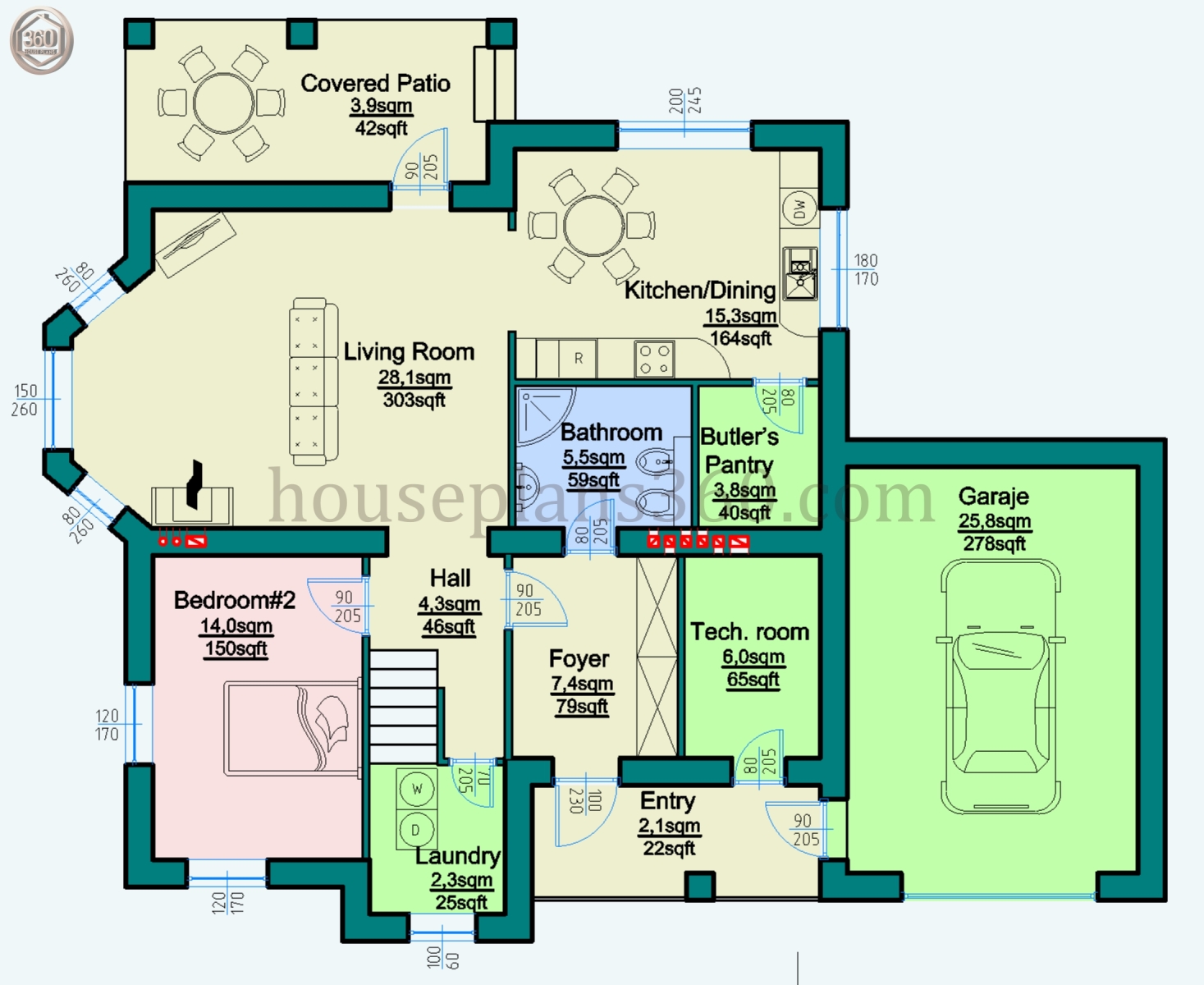

The first floor is represented by the presence of a large number of rooms, both main and auxiliary. Spacious living room, where there is a place for all the interior items, from the fireplace to the bookcase. From which there is an exit to a spacious terrace. It is also convenient in case of fireplace, when taking out the spent fuel. The kitchen-dining room is separated from the living room by a small partition, which can be done in different styles, such as glass. For the kitchen there is a pantry where you can place all the kitchen appliances and items. Also on this level is a garage for one car, which can easily be increased to 2 cars. The technical room can be used for various purposes. Such as for the placement of heating and other technical equipment, storage of garden tools or storage room. Placed under the staircase space laundry room, quite enough to accommodate two machines washing and drying.

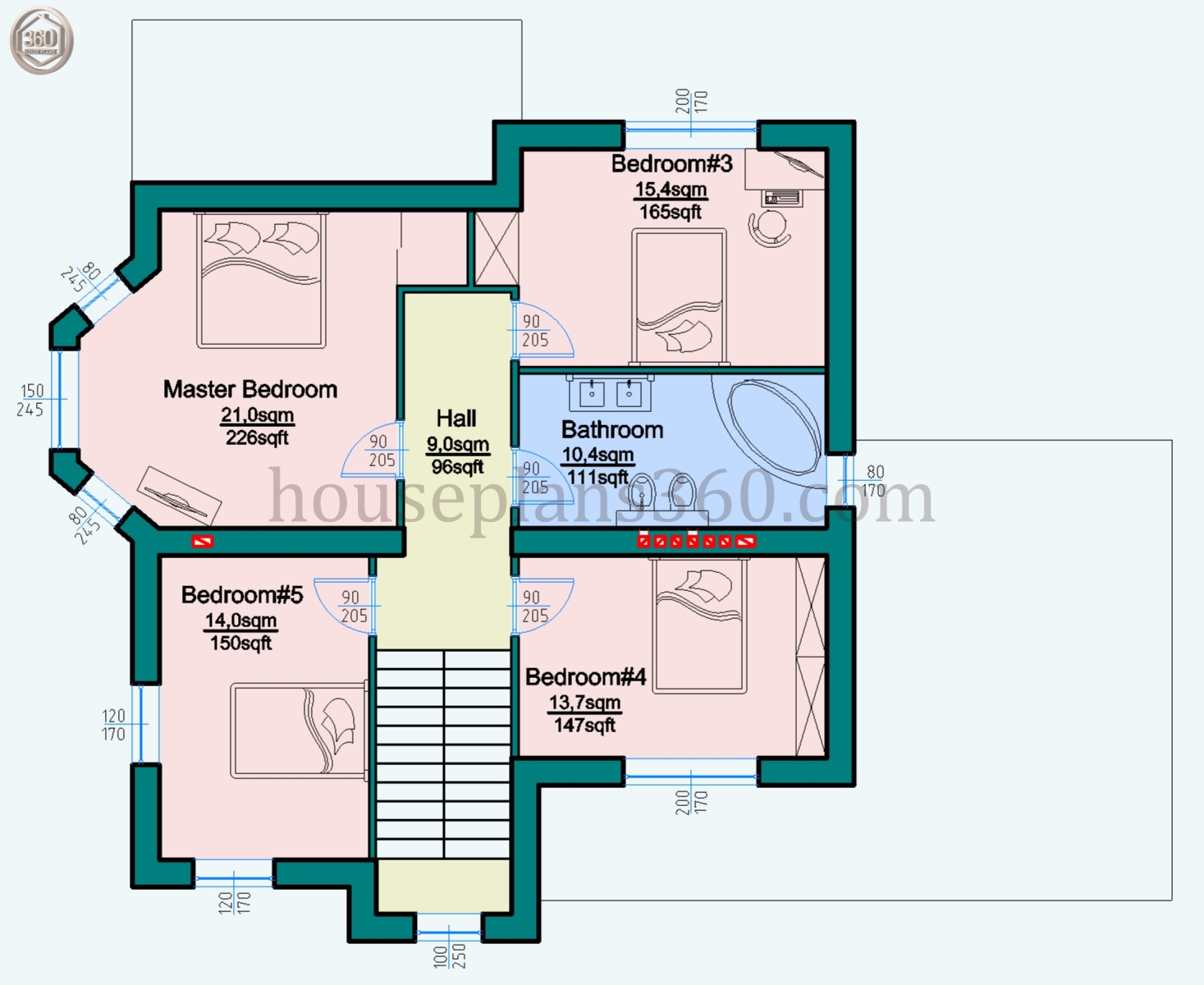

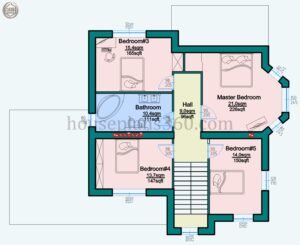

On the second floor, a spacious master bedroom in the bay window with its own small walk-in closet. And three other bedrooms, allowing for a closet in each room. A shared bathroom on the floor, located above the bathroom on the first floor, near the technical room. If necessary, there is a possibility to allocate space for an individual bathroom in the master bedroom. Also, if desired, it is possible to add a balcony with access to it from the master bedroom. This will be located above the first floor terrace. Thus, for a two-story house plan is quite spacious and at the same time compact house with five bedrooms and many additional rooms.



What's included?

All plans are at a scale of 1:50 or ¼”=1′-0″ or larger, such as architectural nodes.

The following pages are included:

  • A site plan showing where the house will be located on the property (developed even before the selected project is paid for).
  • Floor plan(s) showing the arrangement of furniture and other appliances shown on the website, as well as a description of the rooms.
  • Floor plan(s), detailed plans with all necessary axis dimensions (as determined by your builder), rooms, window and door openings, floor marks, vent and chimney locations.
  • Roof plan(s) with roof pitch marks and dimensions of all roof ribs.
  • Cross Sections: Vertical view of the house from foundation to roof, showing floor and roof markings. Floor elevations and other dimensions. Stair section, if any, is required.

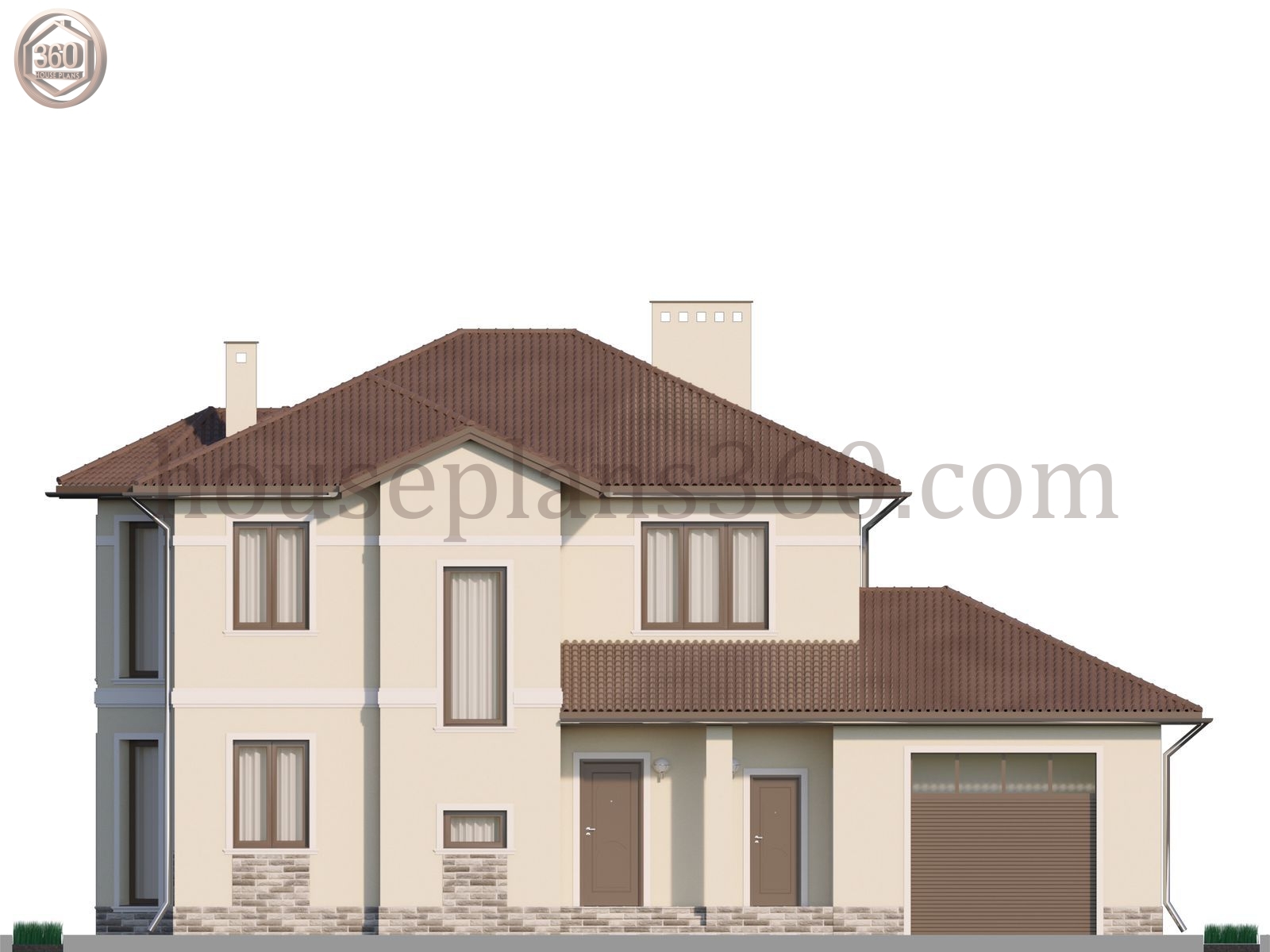

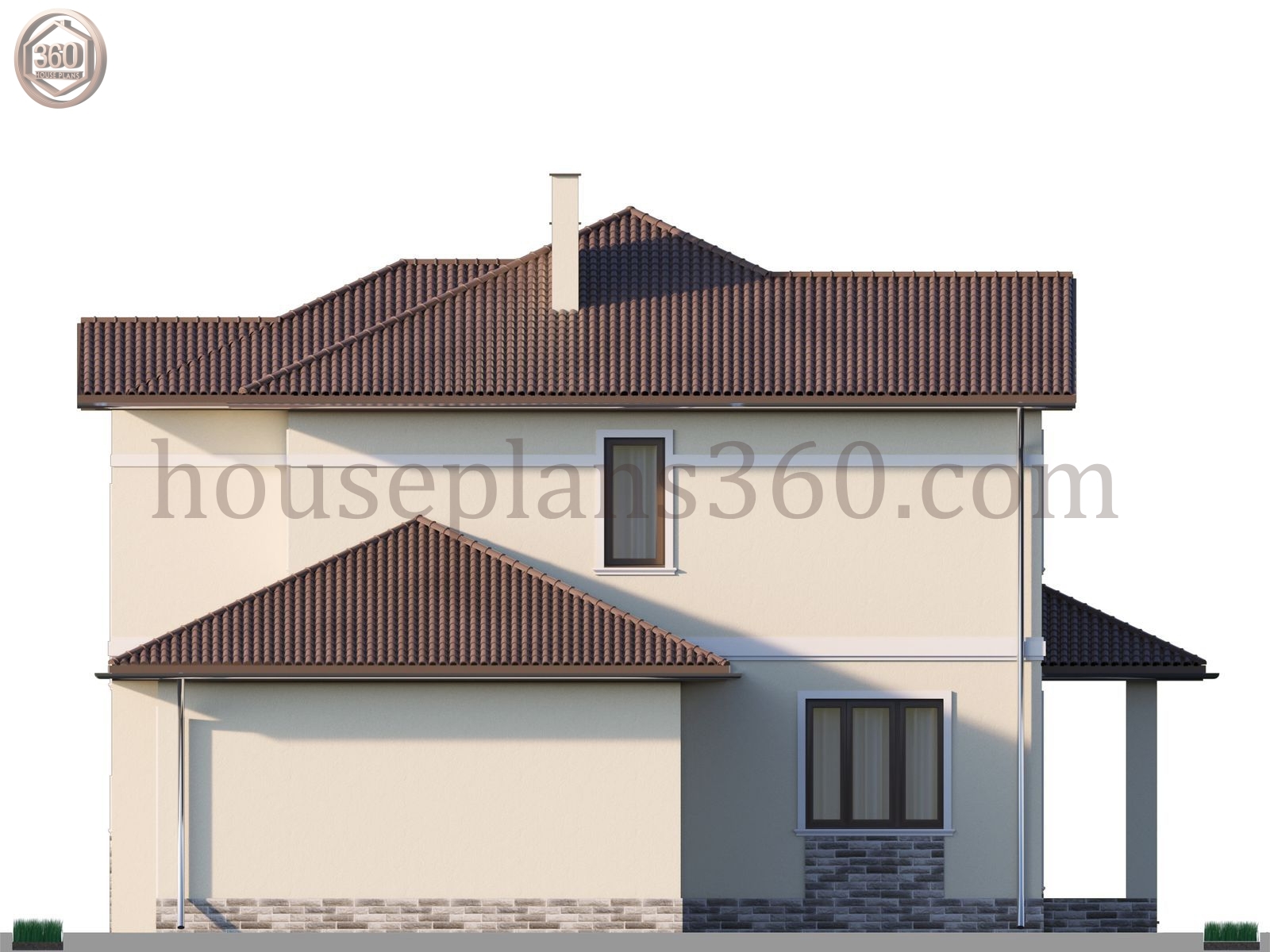

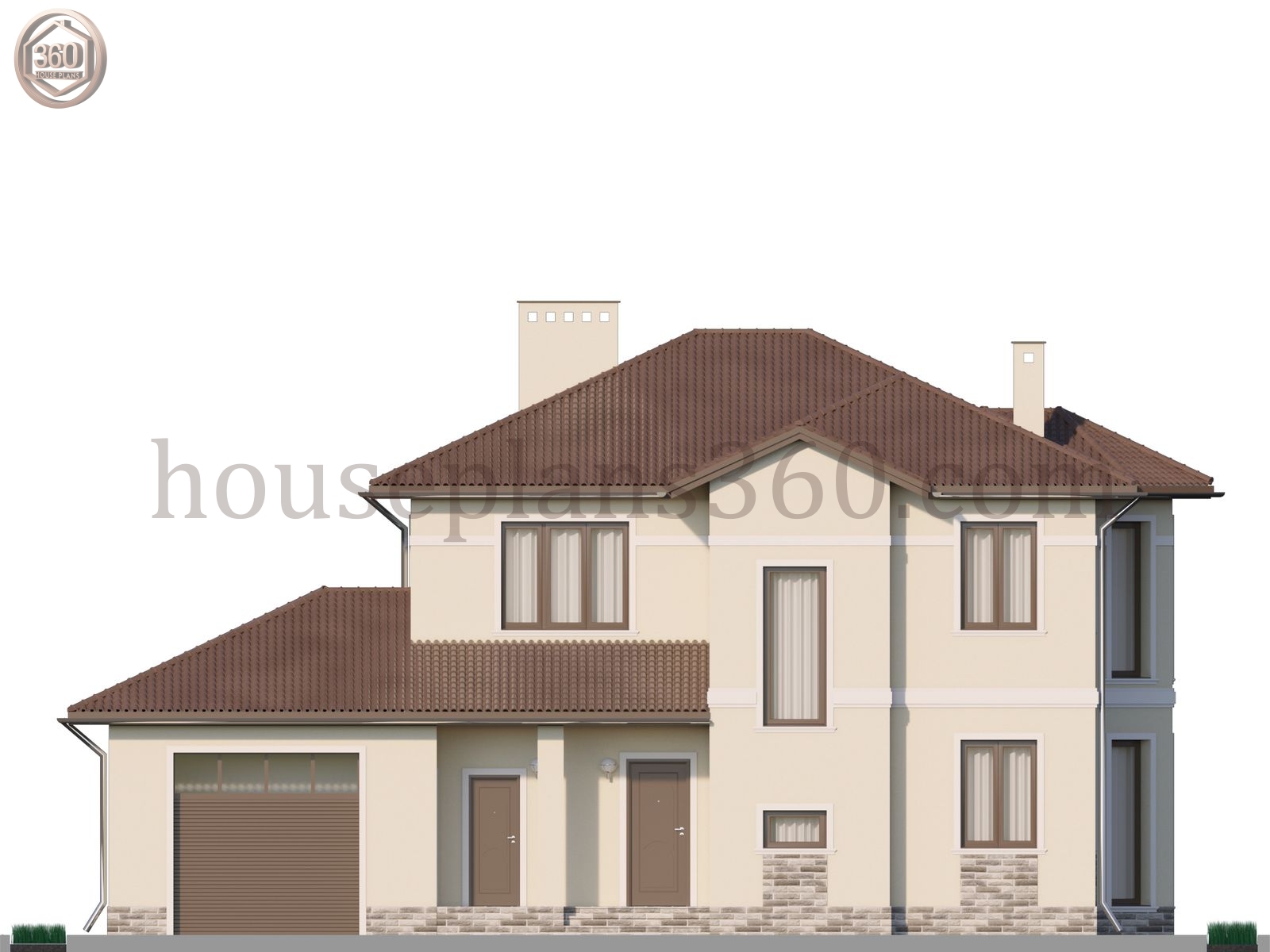

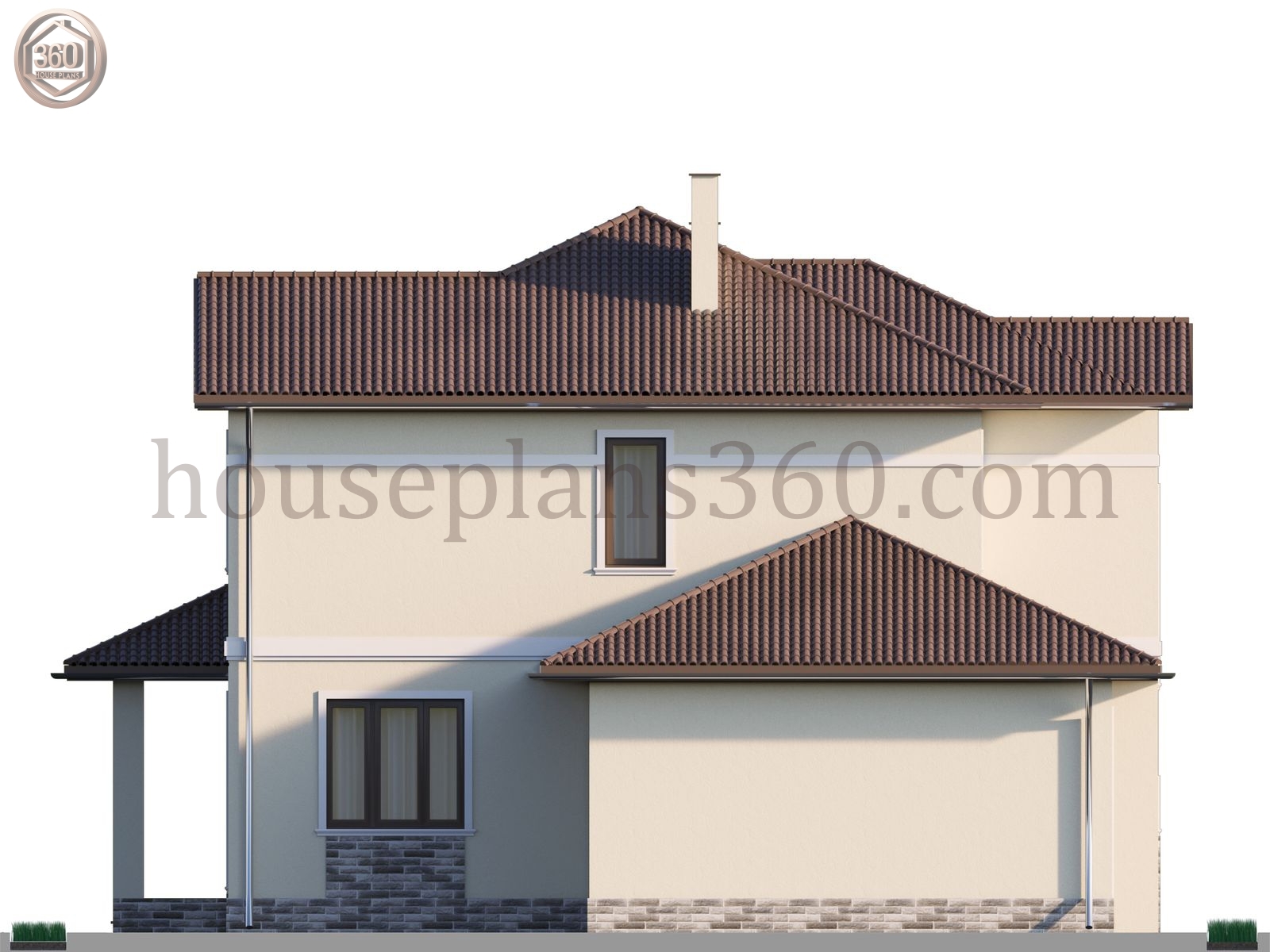

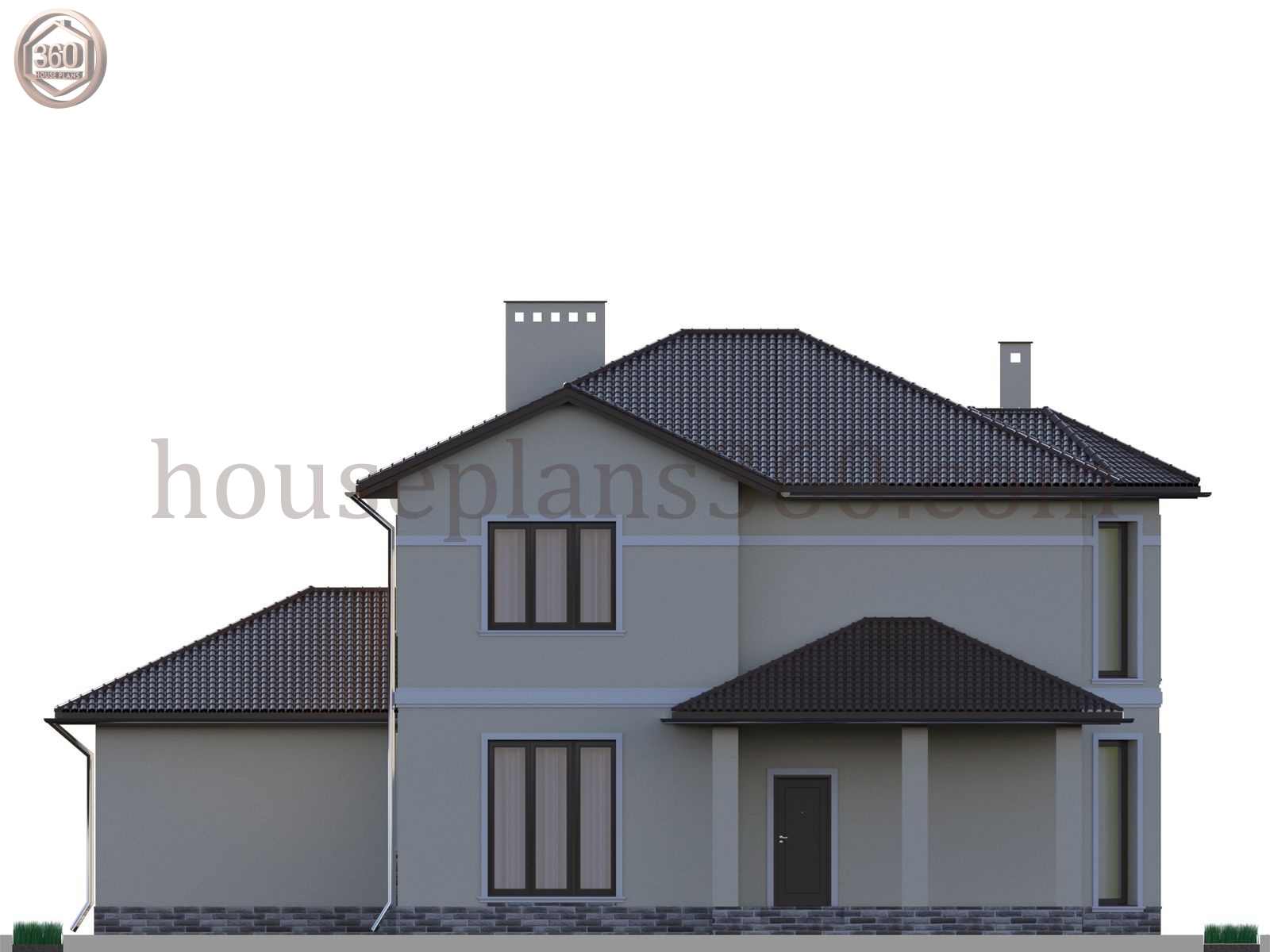

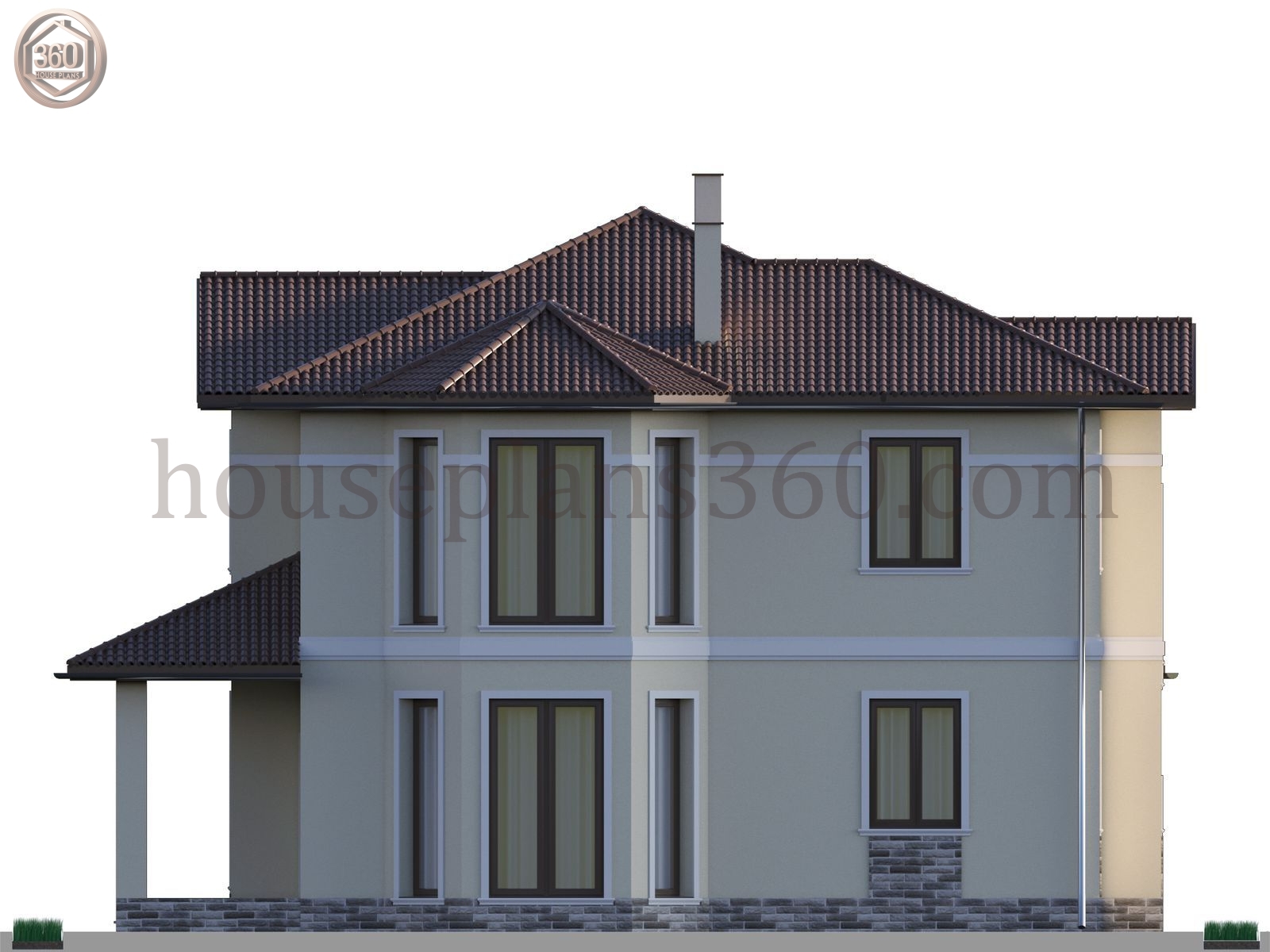

  • Exterior Views: Drawing showing all four sides with dimensions and elevations.
  • Cross section: Vertical section through groups of ducts and chimneys.
  • Elements for filling door and window openings.
  • 3D views presented on the website.

You may also need beams designed for roof loads, foundations based on an analysis of the soil conditions on the site specific to your region. Your home builder can usually help you with this.

Stock plans do not come with a professional stamp. If your building department requires one, they will only accept a stamp from a professional licensed in the state where you plan to build. In this case, you will need to take your home plans to a local engineer or architect to have them reviewed and stamped.
