Plan #1-110
Original price was: $299.0.$249.0Current price is: $249.0.
- 178,2 sq m/1918 sq ft
- 16,3×15,2 m/53’4″×49’8″
- 3 Beds
- 2.5 Baths
- 2 Garages
We customize our house plans for all building materials and wall widths, tie the plans to the ground before selling them FREE of charge.
Edit the house plan according to your needs – Details.
If you are interested in a custom home plan – we invite you to fill out a simple form on the Customize Home page and we will design a custom home for just $499!
SPECIFICATIONS & FEATURES
| Dimension | |||||
|---|---|---|---|---|---|
| Width: | Depth: | Height: | |||
| m | ft' in" | m | ft' in" | m | ft' in" |
| 16.3 | 53' 6" | 15.2 | 49' 10" | 8.5 | 27' 11" |
| Rooms | |||||
| Room Names: | Width: | Depth: | |||
| m | ft' in" | m | ft' in" | ||
| M.Bathroom | 2.6 | 8' 6" | 3.7 | 12' 2" | |
| Bath | 3.0 | 9' 10" | 2.1 | 6' 11" | |
| M.Bedroom | 3.8 | 12' 6" | 3.7 | 12' 2" | |
| Bedroom #2,3 | 4.3 | 14' 1" | 2.8 | 9' 2" | |
| Closet | 3.6 | 11' 10" | 1.8 | 5' 11" | |
| Closet#2,3 | 3.0 | 9' 10" | 1.1 | 3' 7" | |
| Front porch | 2.2 | 7' 3" | 2.7 | 8' 10" | |
| Garaje | 6.5 | 21' 4" | 7.2 | 23' 7" | |
| Kitchen/Dining | 5.1 | 16' 9" | 4.0 | 13' 1" | |
| Laundry | 2.9 | 9' 6" | 1.9 | 6' 3" | |
| Living Room | 5.1 | 16' 9" | 4.5 | 14' 9" | |
| Mudroom | 4.2 | 13' 9" | 5.1 | 16' 9" | |
| B. Pantry | 1.6 | 5' 3" | 2.2 | 7' 3" | |
| Rear porch | 5.3 | 17' 5" | 3.0 | 9' 10" | |
| W|C | 1.6 | 5' 3" | 1.6 | 5' 3" | |
| Ceiling | |||||
| Ground Floor: | Main Floor: | Upper floor: | |||
| m | ft' in" | m | ft' in" | m | ft' in" |
| 0.0 | 0' 0" | 3.0 | 9' 10" | 0.0 | 0' 0" |
| Roof | |||||
| Primary Tilt Angle: | Secondary Tilt Angle: | ||||
| 37 | 9/12 | 0 | 0/12 | ||
ABOUT THIS PLAN
3 bedroom apartment house plans
This single-story 3 bedroom apartment house plans is relatively small. Why is it only 178 square meters? The answer is obvious: with all the auxiliary rooms included in the design, the total area should be at least 200 square meters. The goal of the architectural design was to minimize the total area of the house while maximizing the number of rooms, including residential and auxiliary spaces. Considering the three bedroom apartment floor plan and spacious living room, we can safely say that the goal has been achieved. This is especially true since each room has sufficient space and is not reduced to the minimum possible size. Taking all of the above into account, this project is more affordable in terms of capital investment and subsequent operation.

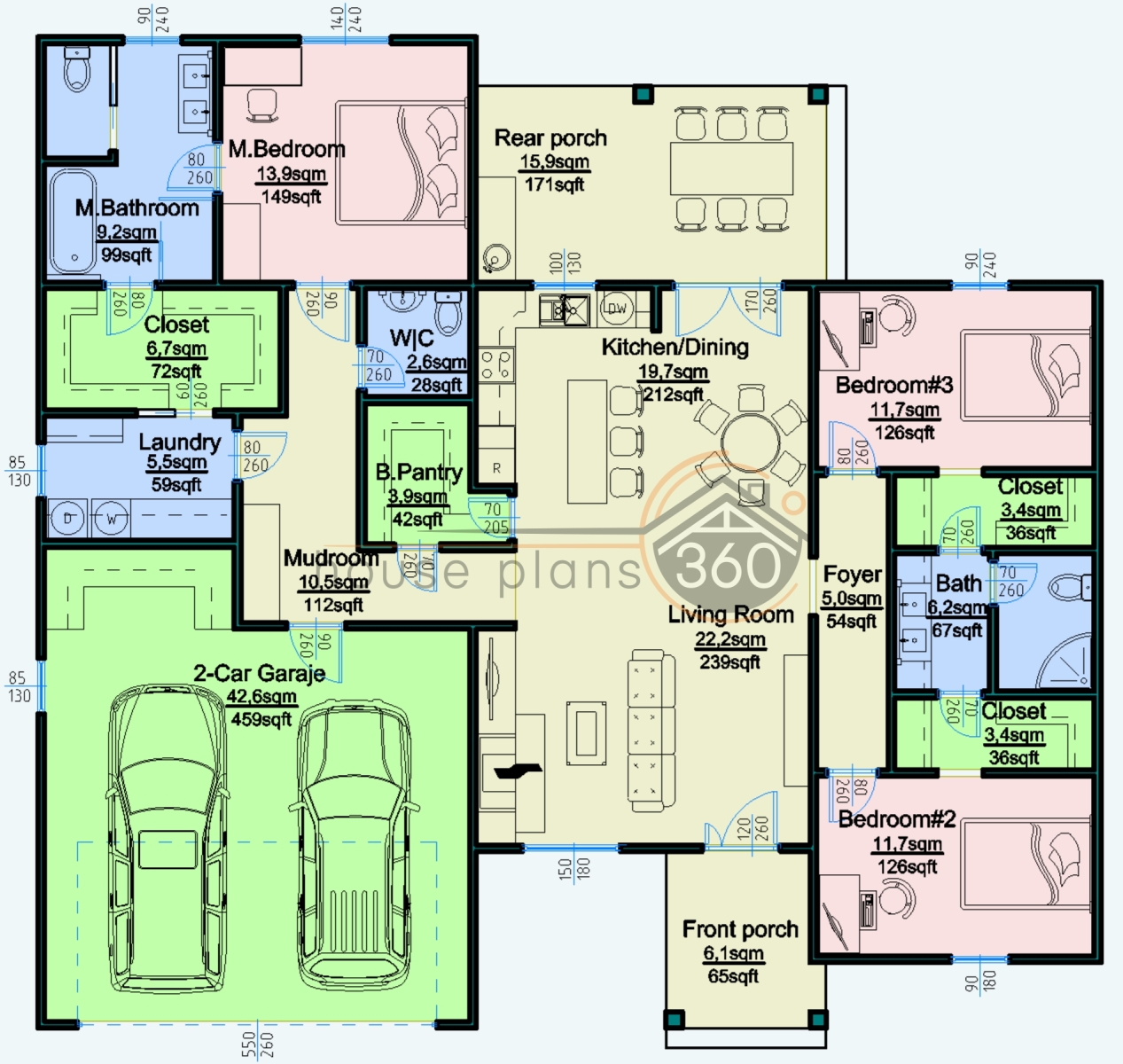

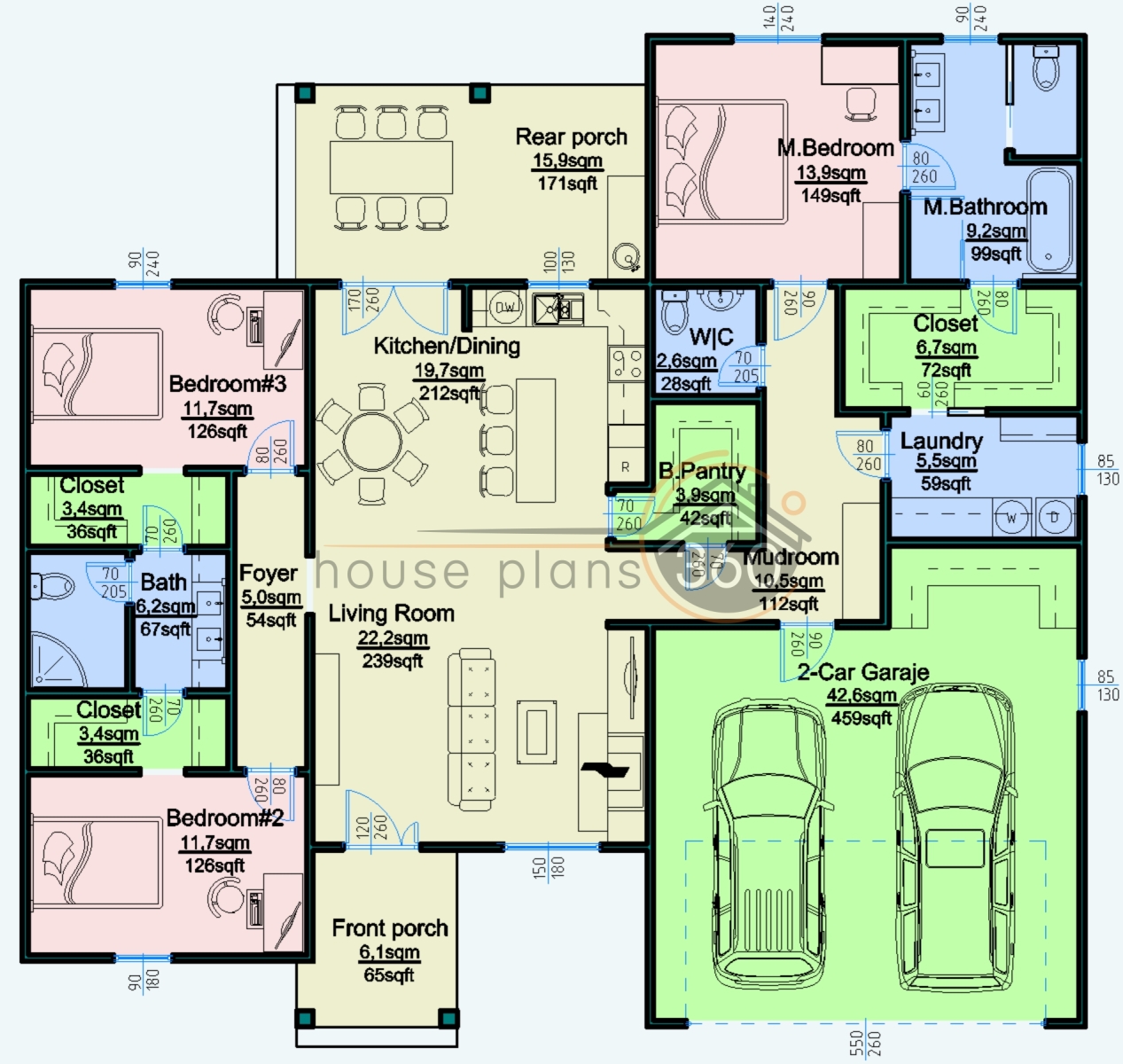

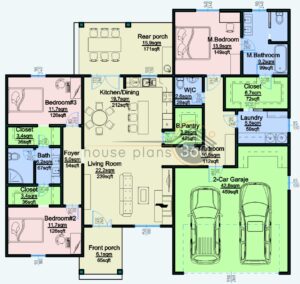

Arrangement of rooms in the house (3 bedroom apartment house plans)
Before discussing the layout of rooms in a one-story house, it’s important to note its compact design and suitability for most plots of land. The nearly square shape of the house makes it quite versatile.
Regarding the layout, note the two-car garage with a small workshop that can be used for various purposes. The garage leads to the house through a hallway that connects to several rooms and contains a closet for outerwear. There is also a door to the kitchen pantry with a door that leads directly to the kitchen. Considering the total area, the kitchen/dining room and living room are quite spacious at more than 40 square meters. The master bedroom is a separate unit with its own bathroom and wardrobe, as well as access to the shared laundry room. The laundry room is accessible to everyone living in the house. The other two bedrooms are identical in floor space and have small wardrobes. These two rooms share a bathroom with a toilet and shower in a separate room. A covered terrace built into the inner corner complements these rooms.

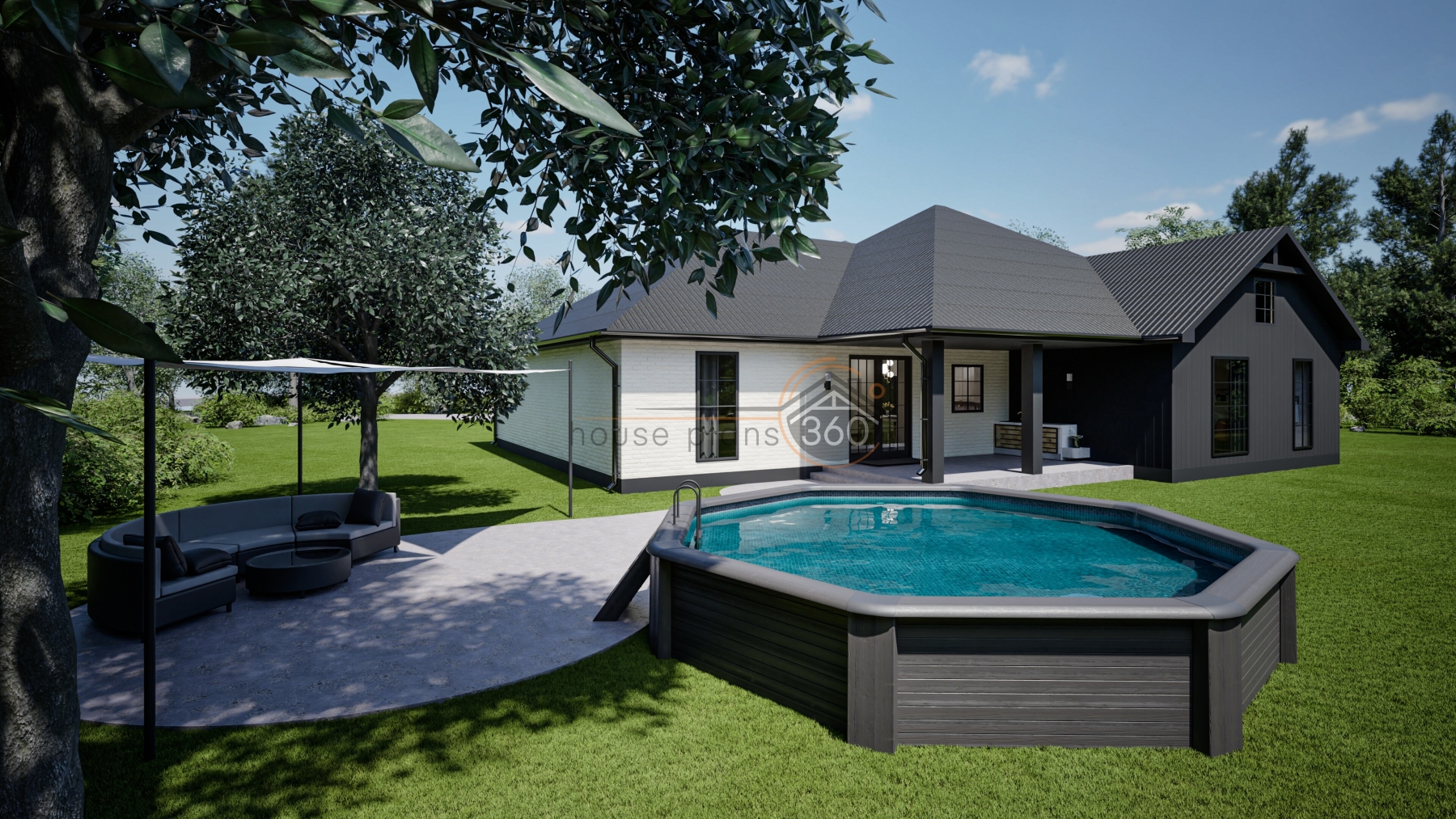

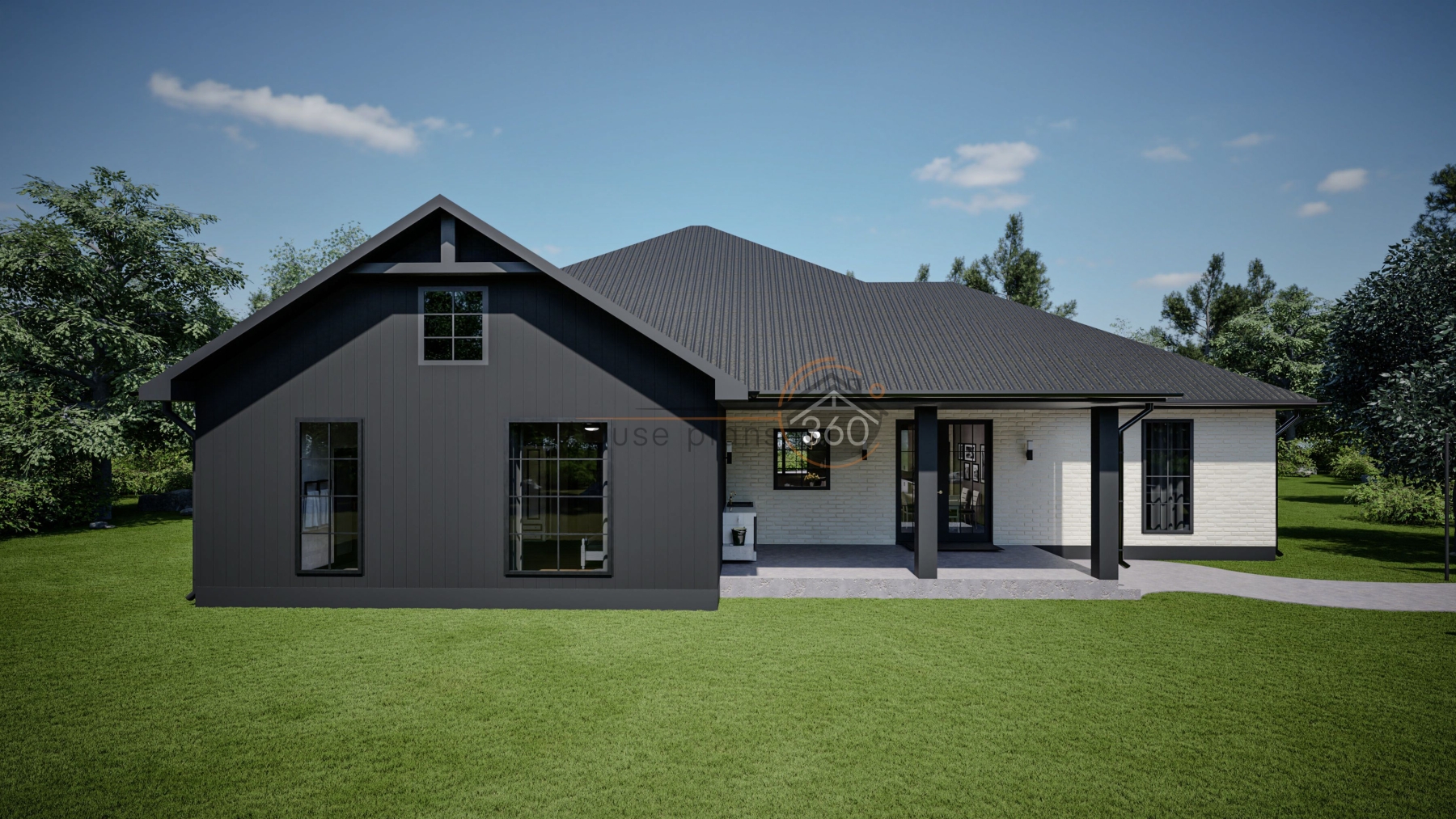

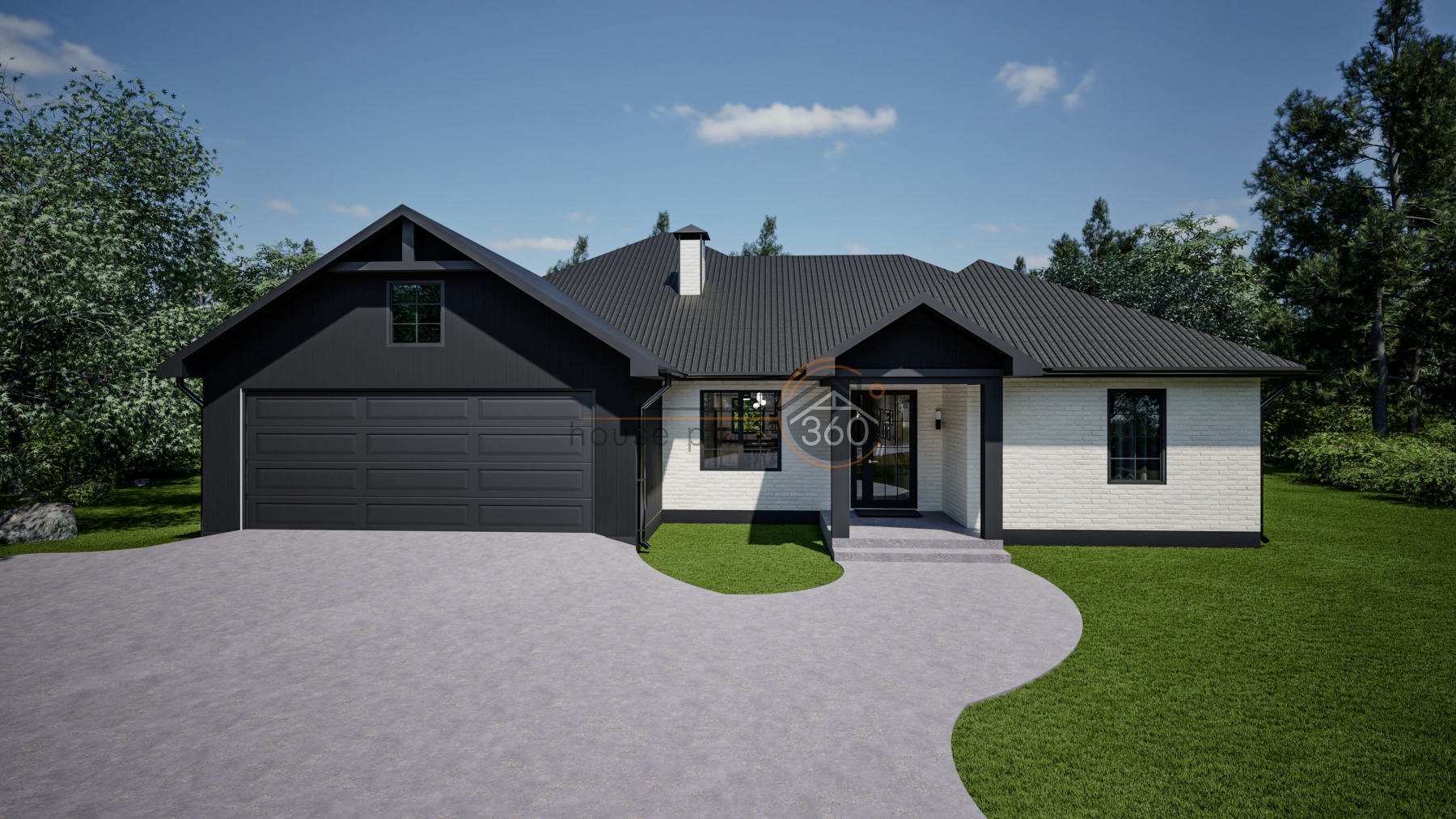

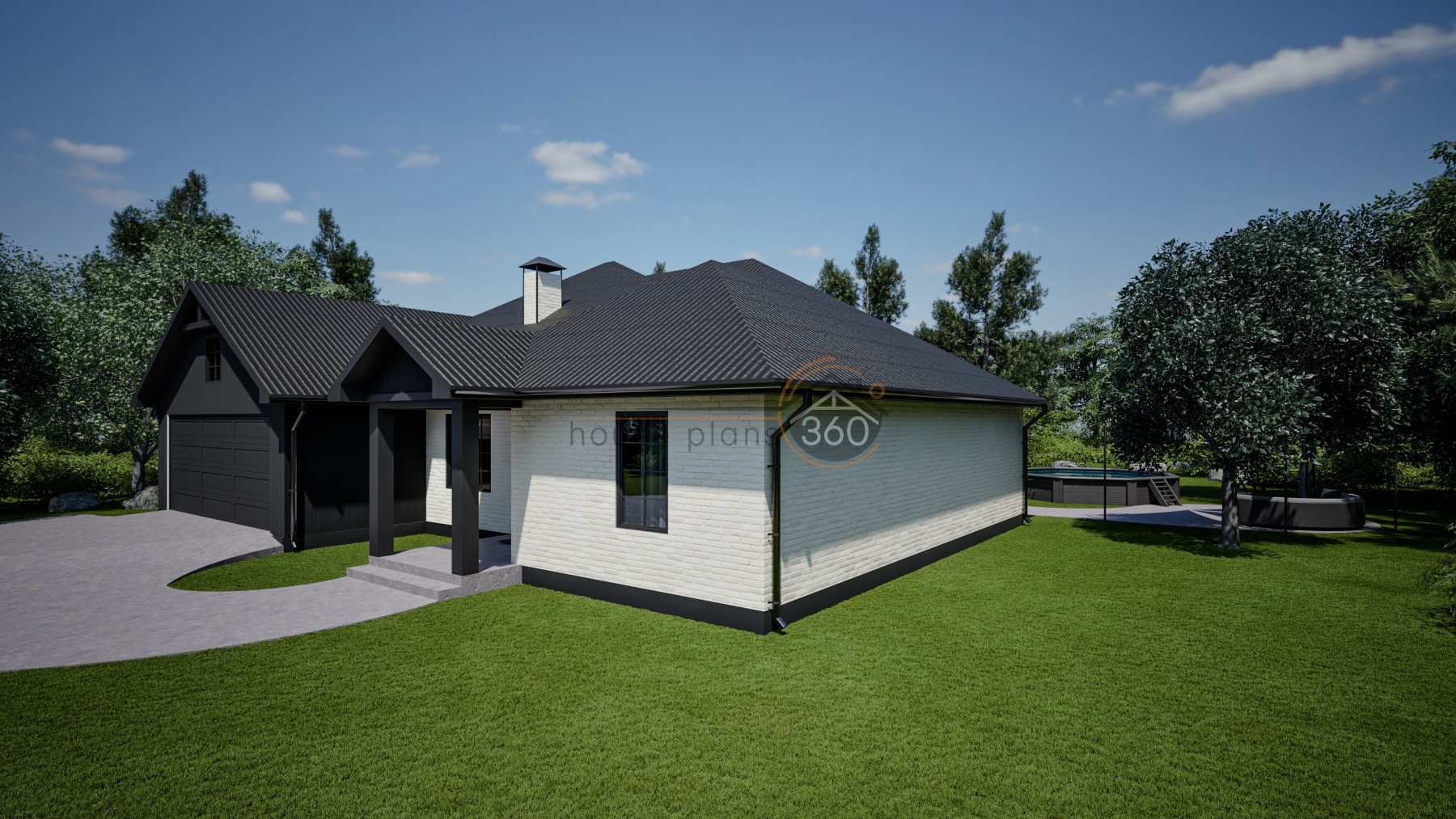

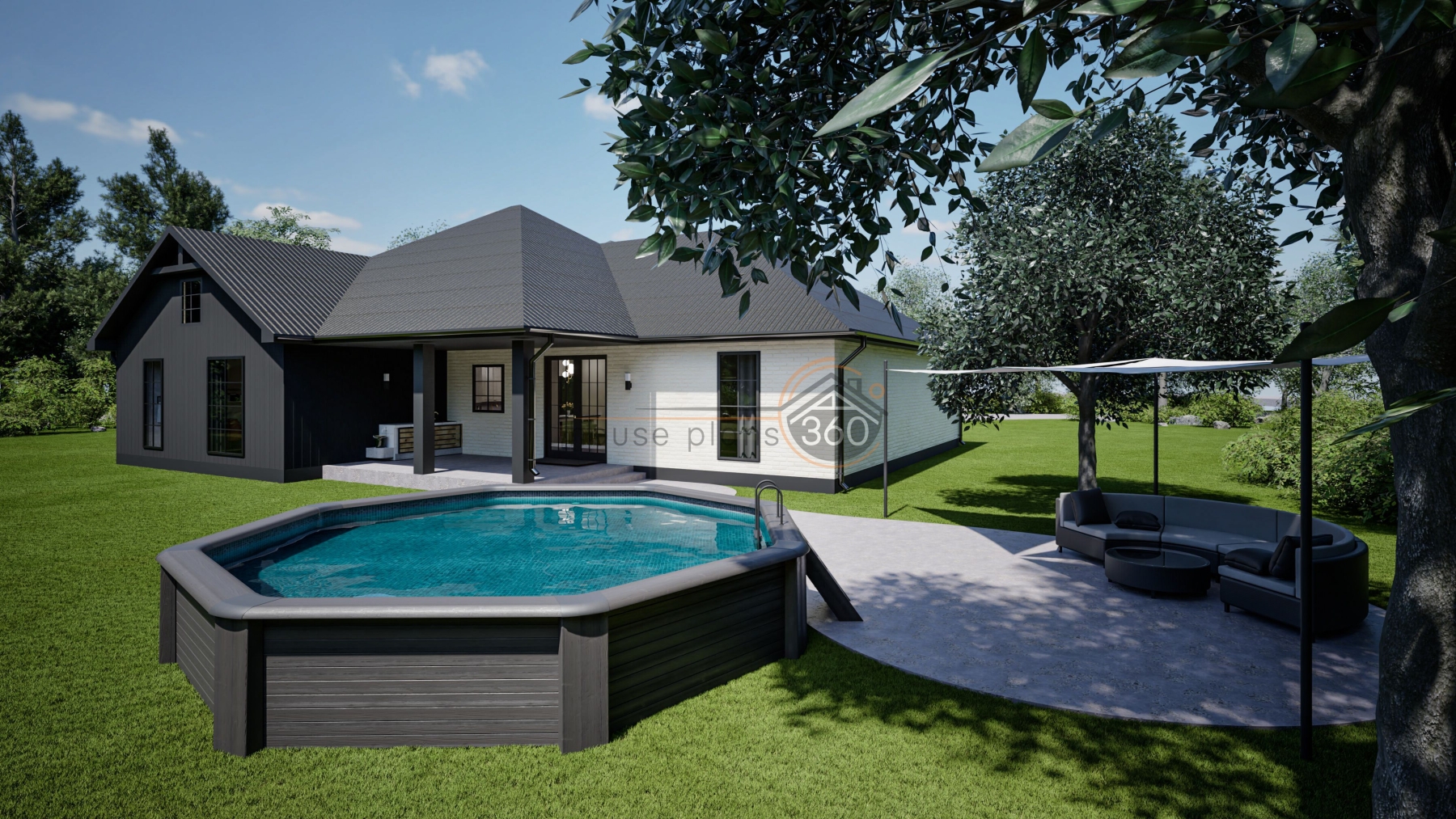

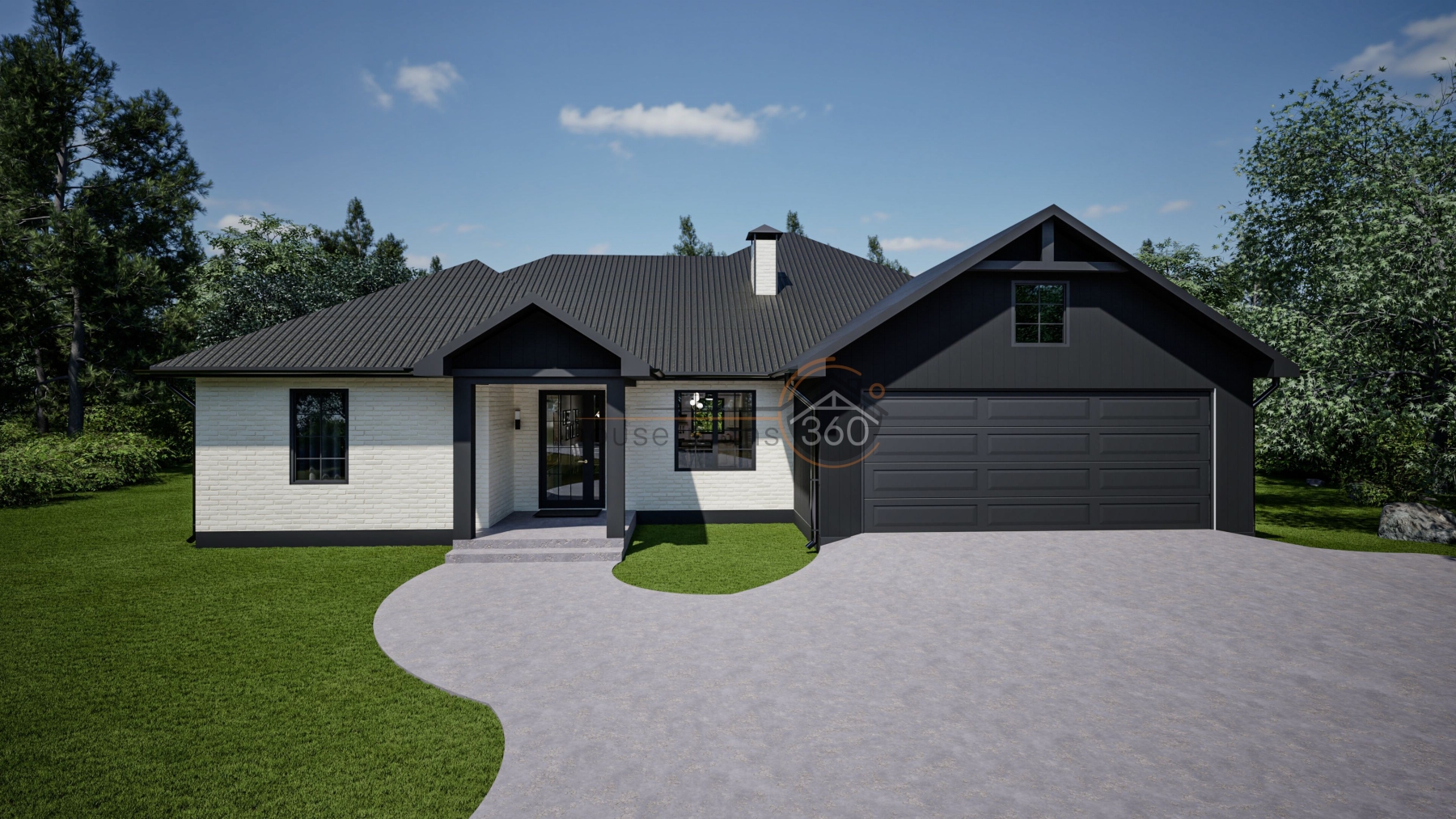

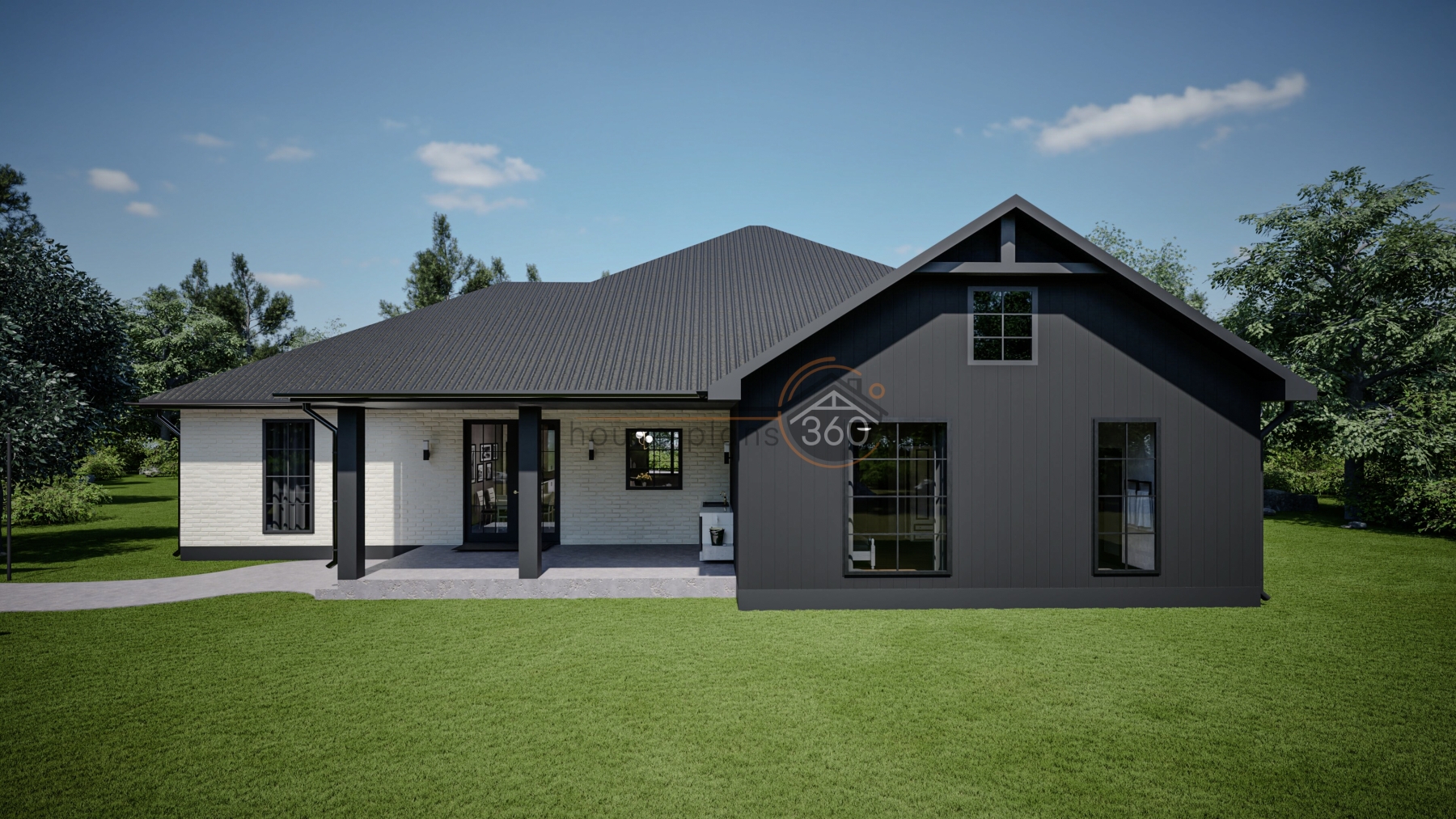

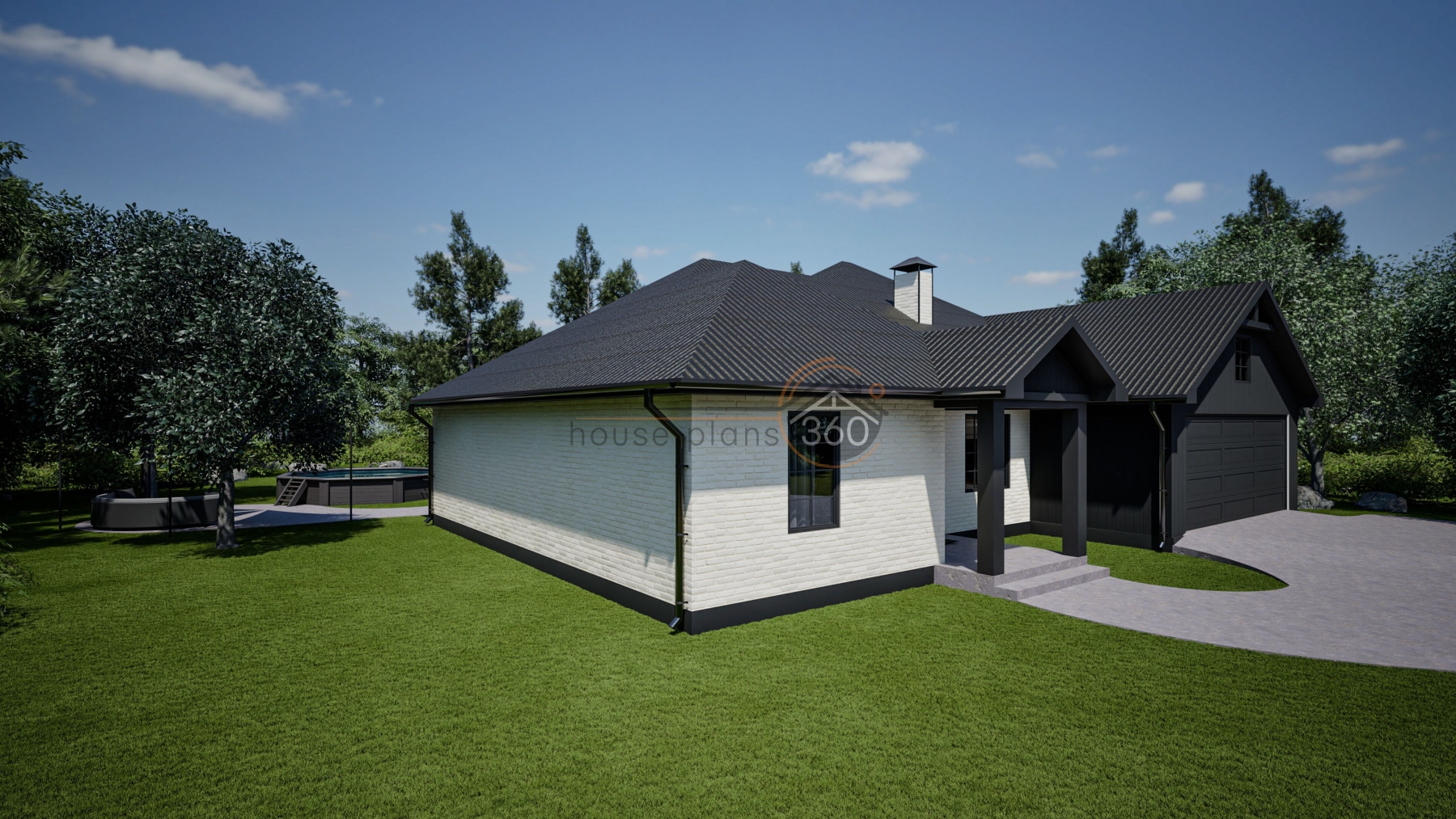

Exterior

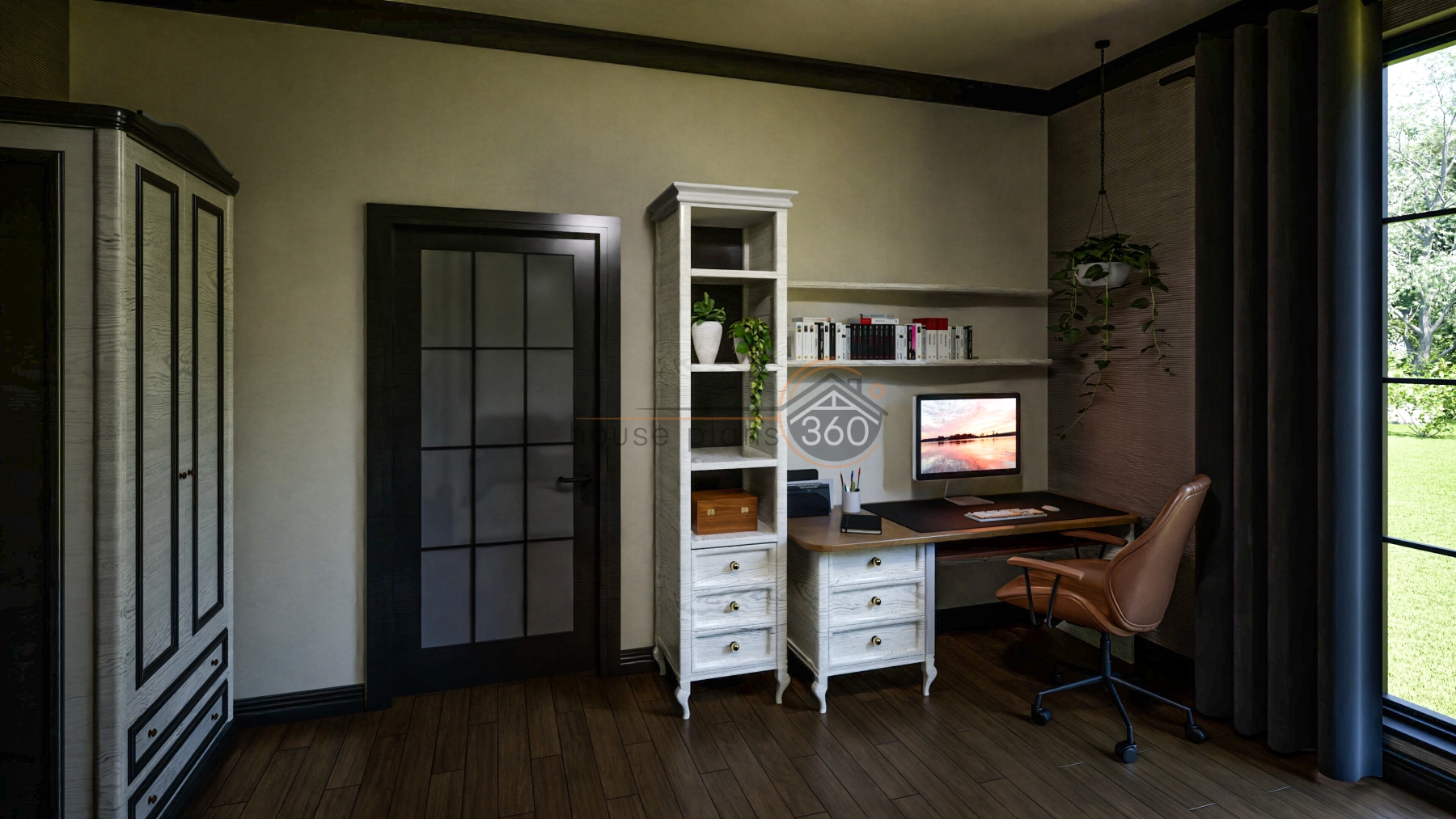

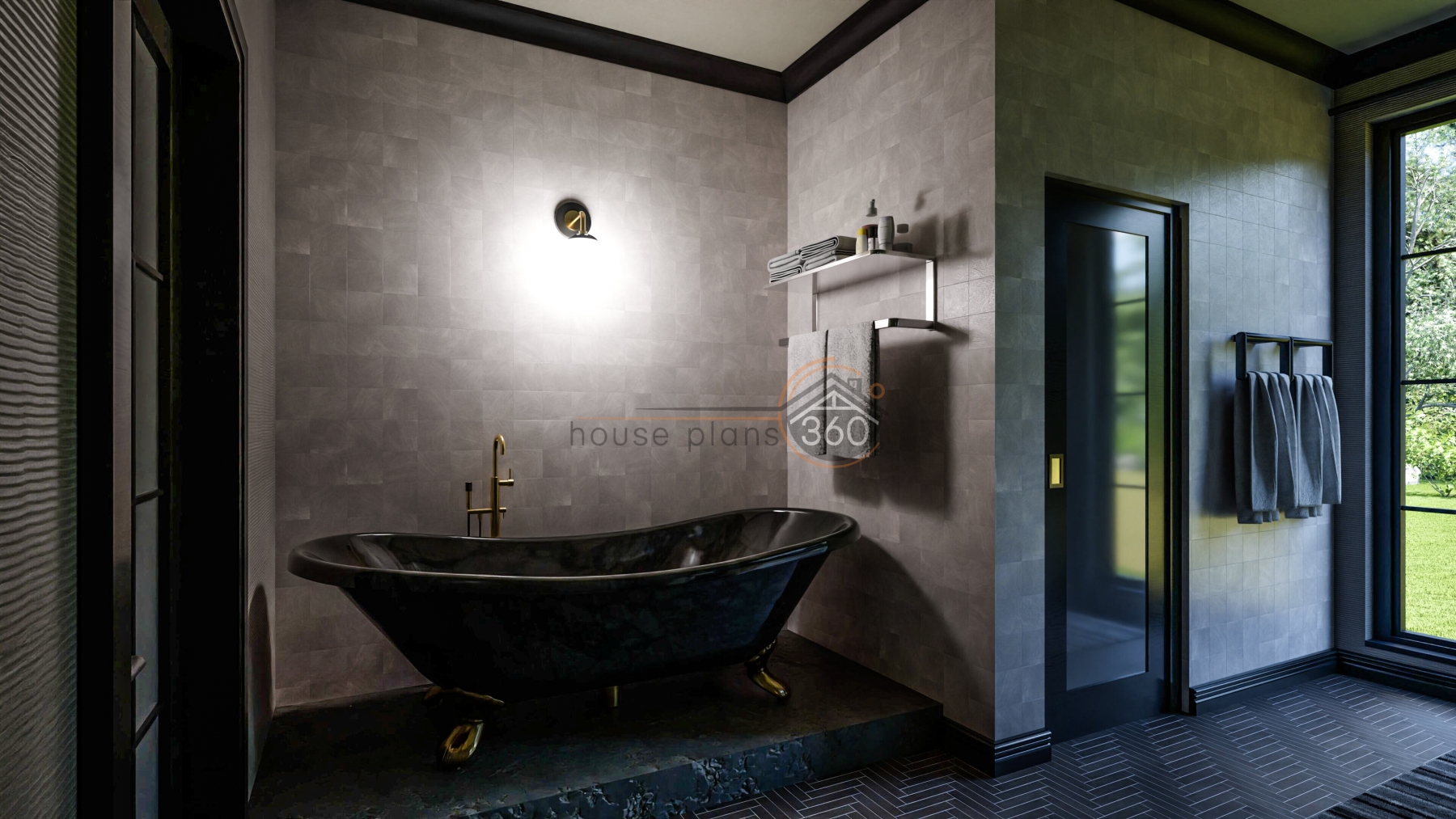

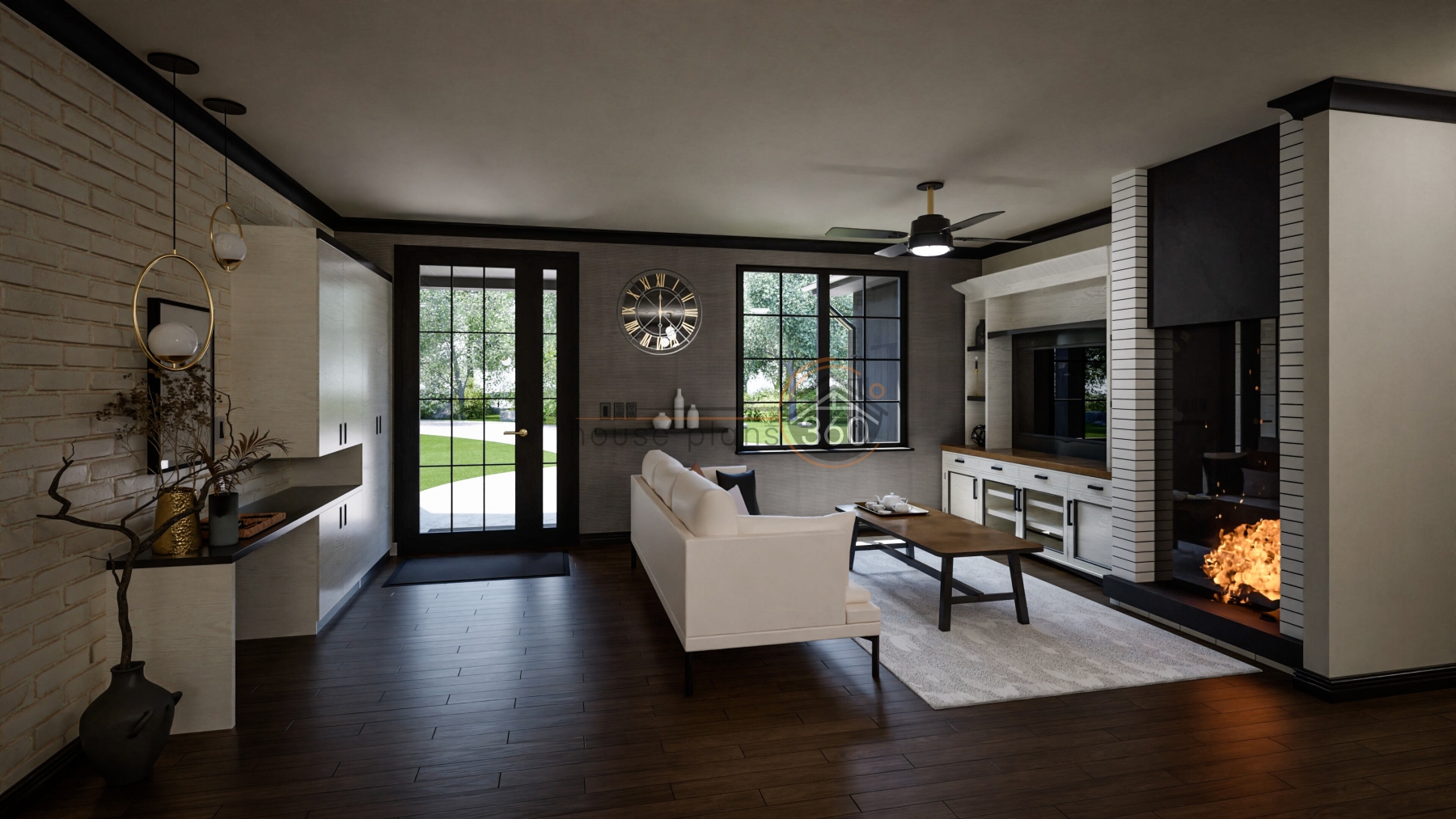

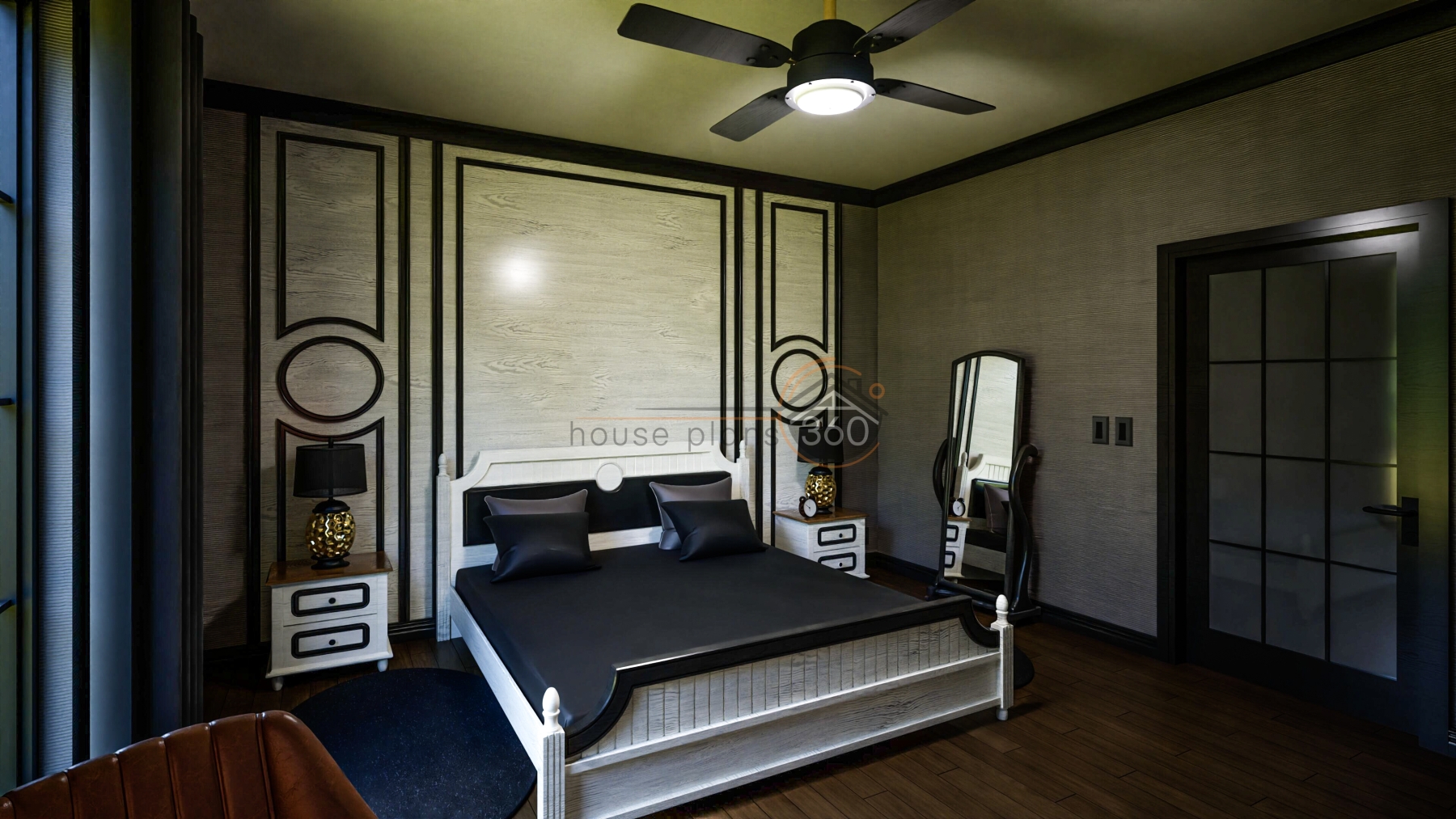

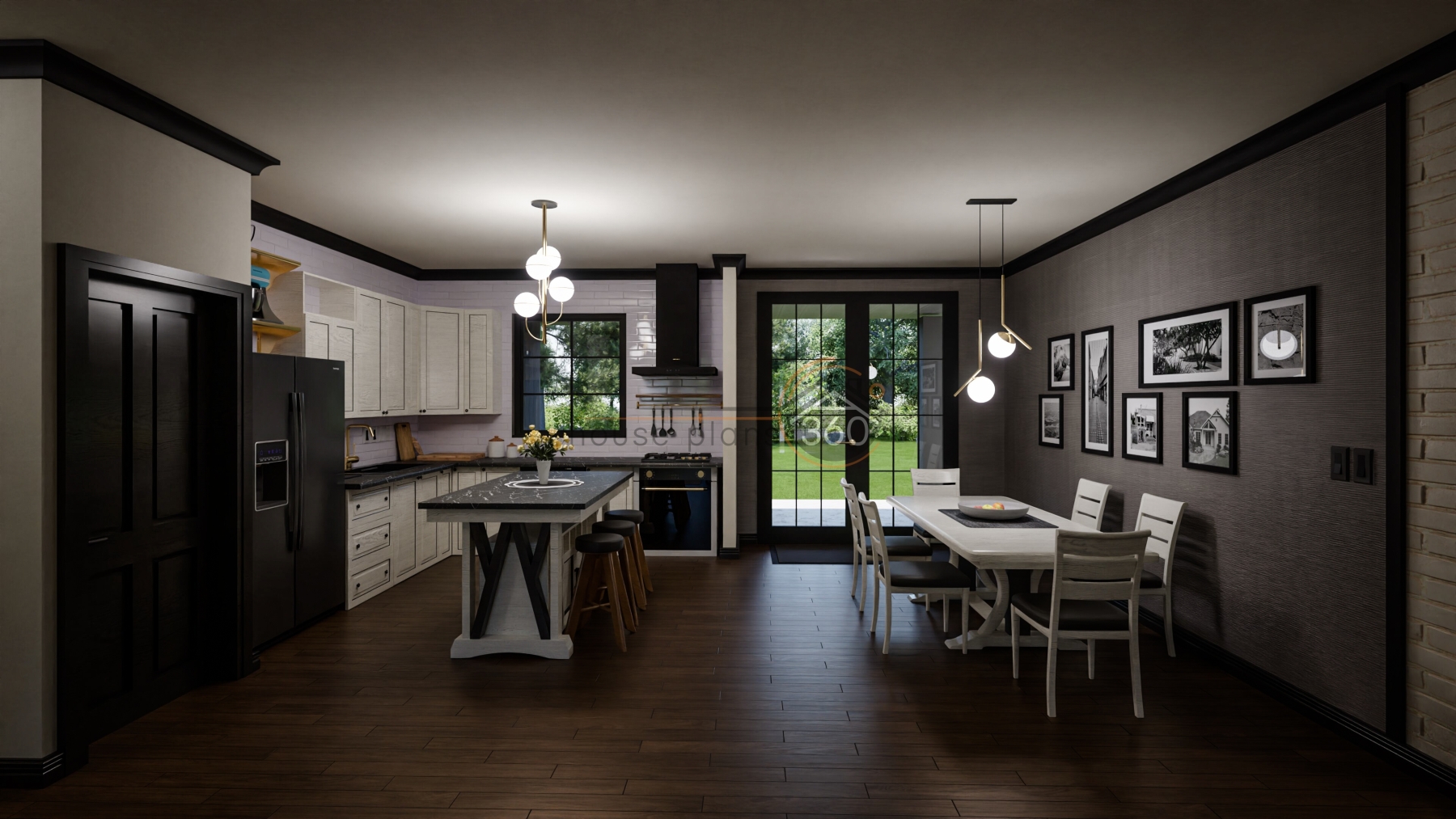

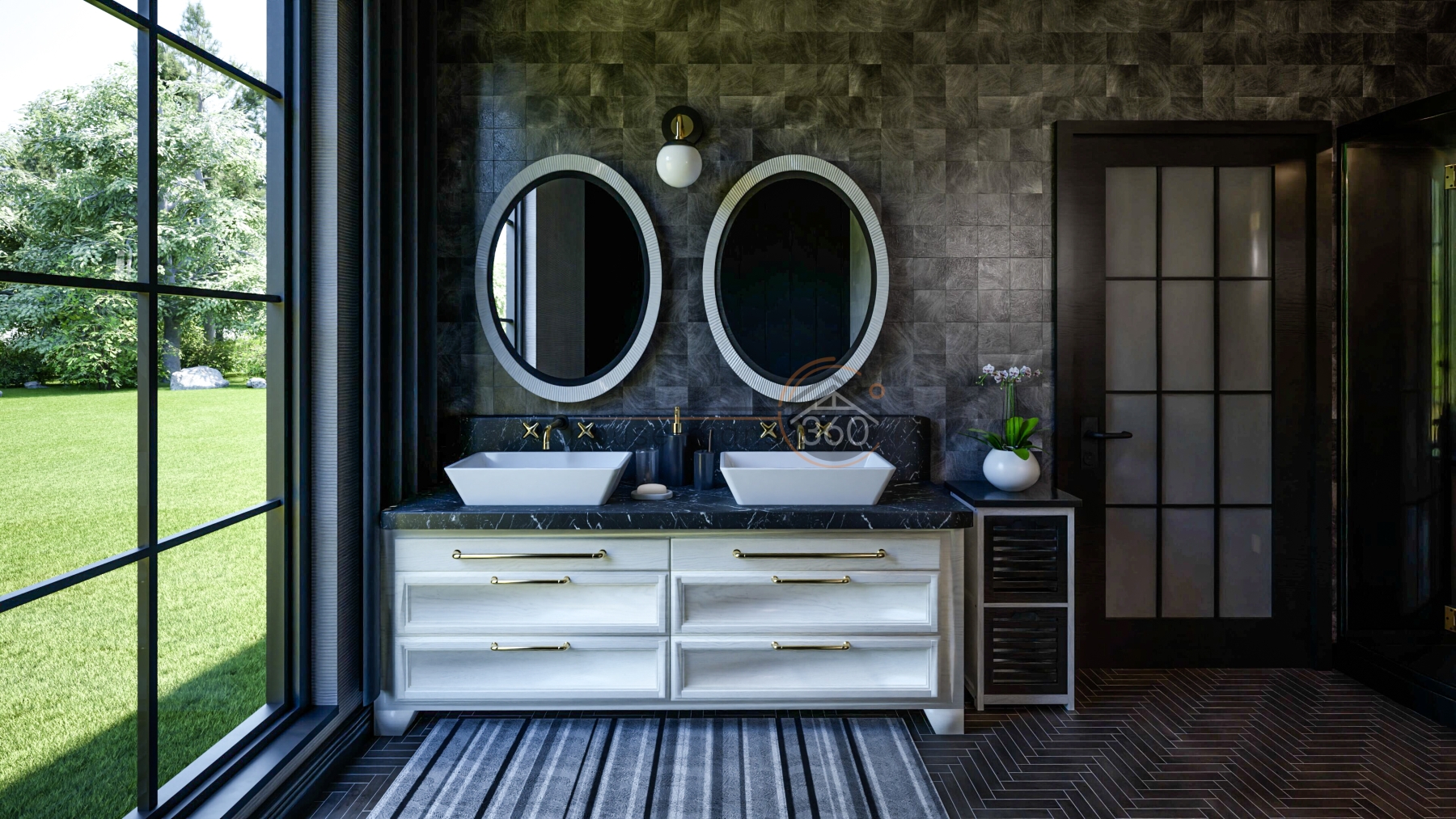

Interior
Reverse
What's included?
All plans are at a scale of 1:50 or ¼”=1′-0″ or larger, such as architectural nodes.
The following pages are included:
- A site plan showing where the house will be located on the property (developed even before the selected project is paid for).
- Floor plan(s), detailed plans with all necessary axis dimensions (as determined by your builder), rooms, window and door openings, floor marks, vent and chimney locations.
- Furniture plan(s) showing the arrangement of furniture and other appliances shown on the website, as well as a description of the rooms.
- Roof plan(s) with roof pitch marks and dimensions of all roof ribs.
- Exterior Views: Drawing showing all four sides with dimensions and elevations.
- Cross Sections: Vertical view of the house from foundation to roof, showing floor and roof markings. Floor elevations and other dimensions. Stair section, if any, is required.
- Cross section: Vertical section through groups of ducts and chimneys.
- Elements for filling door and window openings.
- 3D views presented on the website.
As an example, you can download House Plan #1-17 using this link at the bottom of the page.
You may also need beams designed for roof loads, foundations based on an analysis of the soil conditions on the site specific to your region. Your home builder can usually help you with this.
Stock plans do not come with a professional stamp. If your building department requires one, they will only accept a stamp from a professional licensed in the state where you plan to build. In this case, you will need to take your home plans to a local engineer or architect to have them reviewed and stamped.
