Description
FLOOR PLANS
We customize our house plans for all building materials and wall widths, tie the plans to the ground before selling them FREE of charge.
Edit the house plan according to your needs – Details.
SPECIFICATIONS & FEATURES
| Dimension | |||||
| Width: | Depth: | Height: | |||
| m | ft' in" | m | ft' in" | m | ft' in" |
| 12.0 | 39' 4" | 15.5 | 50' 10" | 8.2 | 26' 11" |
| Rooms | |||||
| Room Names: | Width: | Depth: | |||
| m | ft' in" | m | ft' in" | ||
| Bath | 1.8 | 5' 11" | 1.6 | 5' 3" | |
| Bathroom | 2.1 | 6' 11" | 3.0 | 9' 10" | |
| Bedroom #2 | 2.9 | 9' 6" | 3.4 | 11' 2" | |
| Bedroom #3 | 3.7 | 12' 2" | 5.2 | 17' 1" | |
| Bedroom #4 | 3.7 | 12' 2" | 4.4 | 14' 5" | |
| Bedroom #5 | 4.9 | 16' 1" | 3.4 | 11' 2" | |
| M.Closet | 2.1 | 6' 11" | 2.0 | 6' 7" | |
| Closet | 2.1 | 6' 11" | 1.9 | 6' 3" | |
| Entry | 1.6 | 5' 3" | 1.0 | 3' 3" | |
| Foyer | 2.2 | 7' 3" | 1.2 | 3' 11" | |
| Garaje | 3.7 | 12' 2" | 5.8 | 19' 0" | |
| Hall | 2.2 | 7' 3" | 2.6 | 8' 6" | |
| Hall 2fl | 4.1 | 13' 5" | 2.5 | 8' 2" | |
| Kitchen/Dining | 4.0 | 13' 1" | 5.5 | 18' 1" | |
| Living Room | 7.2 | 23' 7" | 6.3 | 20' 8" | |
| Master Bedroom | 4.9 | 16' 1" | 5.6 | 18' 4" | |
| Patio | 10.0 | 32' 10" | 3.0 | 9' 10" | |
| Technical room | 1.8 | 5' 11" | 3.2 | 10' 6" | |
| Ceiling | |||||
| Ground Floor: | Main Floor: | Upper floor: | |||
| m | ft' in" | m | ft' in" | m | ft' in" |
| 0.0 | 0' 0" | 3.0 | 9' 10" | 2.8 | 9' 2" |
| Roof | |||||
| Primary Tilt Angle: | Secondary Tilt Angle: | ||||
| 20 | 4/12 | 20 | 4/12 | ||
ABOUT THIS PLAN
2nd storey house design 5 bedroom 3d house plans
This plan is designed for both urban and suburban development. The 2nd storey house design 5 bedroom 12 by 14 can be located even on small plots. If the entrance of the protruding part of the garage is placed on the edge of the plot – you can save a significant amount of space on the land plot for the construction of a residential house. The distance from the edge of the house to the edge of the garage is 2 meters, which allows you to do this. The house is quite spacious, its size allows you to accommodate a large family with personal space for each family member. And the garage built into part of the house will always keep your car dry and clean, even if it is not heated.
Arrangement of rooms in the house (2nd storey house design)

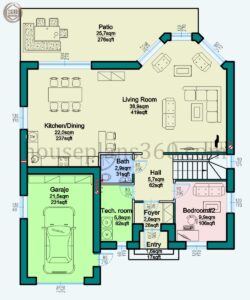

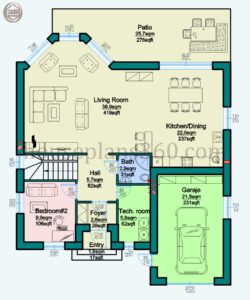

First of all, it is necessary to talk about the spacious living room, kitchen and dining room, combined into a kitchen-studio. In this room there are all the things necessary for the stay of the whole family. These are all the attributes of the living room, such as a TV zone with a soft corner opposite, and a bright place to rest in the bay window of the house. The dining area is opposite a wide stained glass window overlooking the terrace. Which is quite convenient for passing the kitchen utensils to the patio area. Also on the first floor is a bedroom that could be converted into a study or small gym. Bathroom, boiler room and partially built in garage to the house.

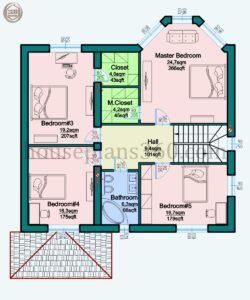

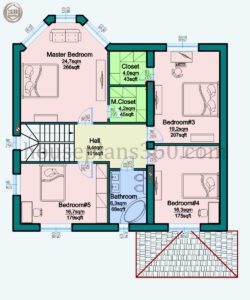

On the second floor 4 spacious bedrooms, total with the first floor turns out to be five bedrooms. Of which a spacious master bedroom of 25 square meters located in the bay window. Both the master bedroom and the adjoining bedroom have a walk-in closet each. It is approximately the same size, which can be combined into a common room or can be realized near the master bedroom with a master bathroom. On this floor there is a bathroom between the other two bedrooms, isolating them from each other. The bathroom is spacious, where you can place a lot of necessary interior items. For example, a double washbasin will be very useful for such a large number of bedrooms located on the second floor of this two-story house.
