Plan #1.5-03


  • 85,8 sq m/924 sq ft
  • 7,5×8,5 m/24’7″×27’11”
  • 2 Beds
  • 1.5 Baths
  • 0 Garages
Floors: Feature:



Main Floor

Image 1 of 2

Floor Area: 43.7sqm/470sqft

We customize our house plans for all building materials and wall widths, tie the plans to the ground before selling them FREE of charge.

Edit the house plan according to your needs – Details.


mft' in"mft' in"mft' in"
7.524' 7"8.527' 11"7.725' 3"
Room Names:Width:Depth:
mft' in"mft' in"
Balcony4.414' 5"0.61' 12"
Balcony#21.85' 11"0.61' 12"
Bath1.96' 3"1.44' 7"
Bedroom #23.09' 10"4.715' 5"
Closet1.54' 11"1.96' 3"
Entry1.85' 11"1.03' 3"
Foyer1.75' 7"2.99' 6"
Hall2.27' 3"2.99' 6"
Kitchen/Dining6.721' 12"4.414' 5"
Laundry2.37' 7"1.44' 7"
Master Bedroom3.611' 10"4.715' 5"
W|C2.37' 7"1.44' 7"
W|C 2fl1.96' 3"1.44' 7"
Ground Floor:Main Floor:Upper floor:
mft' in"mft' in"mft' in"
0.00' 0"3.09' 10"2.89' 2"
Primary Tilt Angle:Secondary Tilt Angle:


Small 2 bedroom house plans

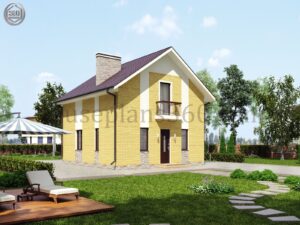

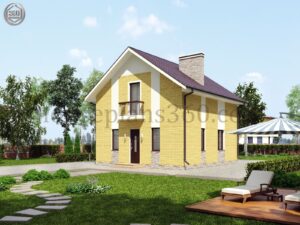

Comfortable small 2 bedroom house plans with attic, economical in construction, simple in plan. The house is thought out to the smallest detail, all necessary rooms with their purpose are located on the sides of the world. Also this plan of a small house for 2 rooms is ideal for a narrow plot, because on the right side there are no front windows, which allows you to place the structure 1 meter from the border of the plot. For all other boundaries, the standard distance is 3 meters. Another solution would be to extend the roof overhang and place either a carport or a garage for a car or other household needs underneath. If necessary, a symmetrical project can be done at no extra charge.

Arrangement of rooms in the house (small 2 bedroom house plans)

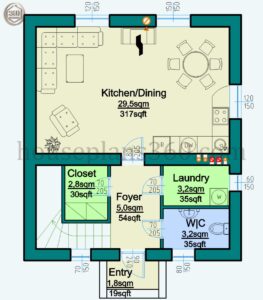

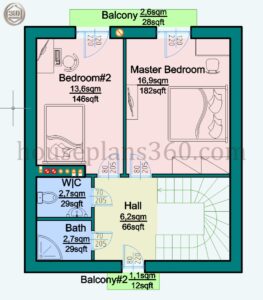

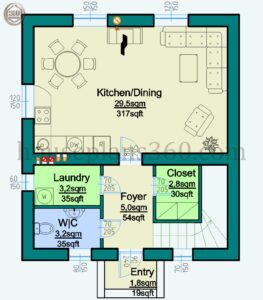

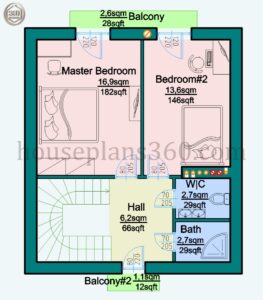

On the first floor there is a spacious kitchen-dining room, an oven room that can be used as a laundry room or pantry for the kitchen, a bathroom, a small storage room and a staircase leading to the attic. On the second floor there are two rooms, a separate toilet and a shower room. If necessary, the toilet and shower room can be combined into one large bathroom.

The space inside the staircase on the second floor can be used in two ways. The first is to make a decorative zone with the placement of decorative plants, the second option to carry out in the form of a built-in closet or bookshelf. This will serve as an additional space that is always missing. The height of the attic walls of this attic floor is 1.7m at the very edge, which is enough to place a shower room. Do not forget that this parameter can be changed if necessary.

Thus, the plan of a small cozy house with 2 rooms for a small plot of land includes everything that is necessary for a comfortable stay. Combining the simplicity of the design solution with significant savings in construction, this plan of a one-storey house with an attic will undoubtedly receive high marks from future users.



What's included?

All plans are at a scale of 1:50 or ¼”=1′-0″ or larger, such as architectural nodes.

The following pages are included:

  • A site plan showing where the house will be located on the property (developed even before the selected project is paid for).
  • Floor plan(s) showing the arrangement of furniture and other appliances shown on the website, as well as a description of the rooms.
  • Floor plan(s), detailed plans with all necessary axis dimensions (as determined by your builder), rooms, window and door openings, floor marks, vent and chimney locations.
  • Roof plan(s) with roof pitch marks and dimensions of all roof ribs.
  • Cross Sections: Vertical view of the house from foundation to roof, showing floor and roof markings. Floor elevations and other dimensions. Stair section, if any, is required.
  • Exterior Views: Drawing showing all four sides with dimensions and elevations.
  • Cross section: Vertical section through groups of ducts and chimneys.
  • Elements for filling door and window openings.
  • 3D views presented on the website.

You may also need beams designed for roof loads, foundations based on an analysis of the soil conditions on the site specific to your region. Your home builder can usually help you with this.

Stock plans do not come with a professional stamp. If your building department requires one, they will only accept a stamp from a professional licensed in the state where you plan to build. In this case, you will need to take your home plans to a local engineer or architect to have them reviewed and stamped.
