Plan #1-03


  • 83,0 sq m/893 sq ft
  • 10,3×11,4 m/33’10″×37’5″
  • 3 Beds
  • 1 Baths
  • 0 Garages
Floors: Feature:

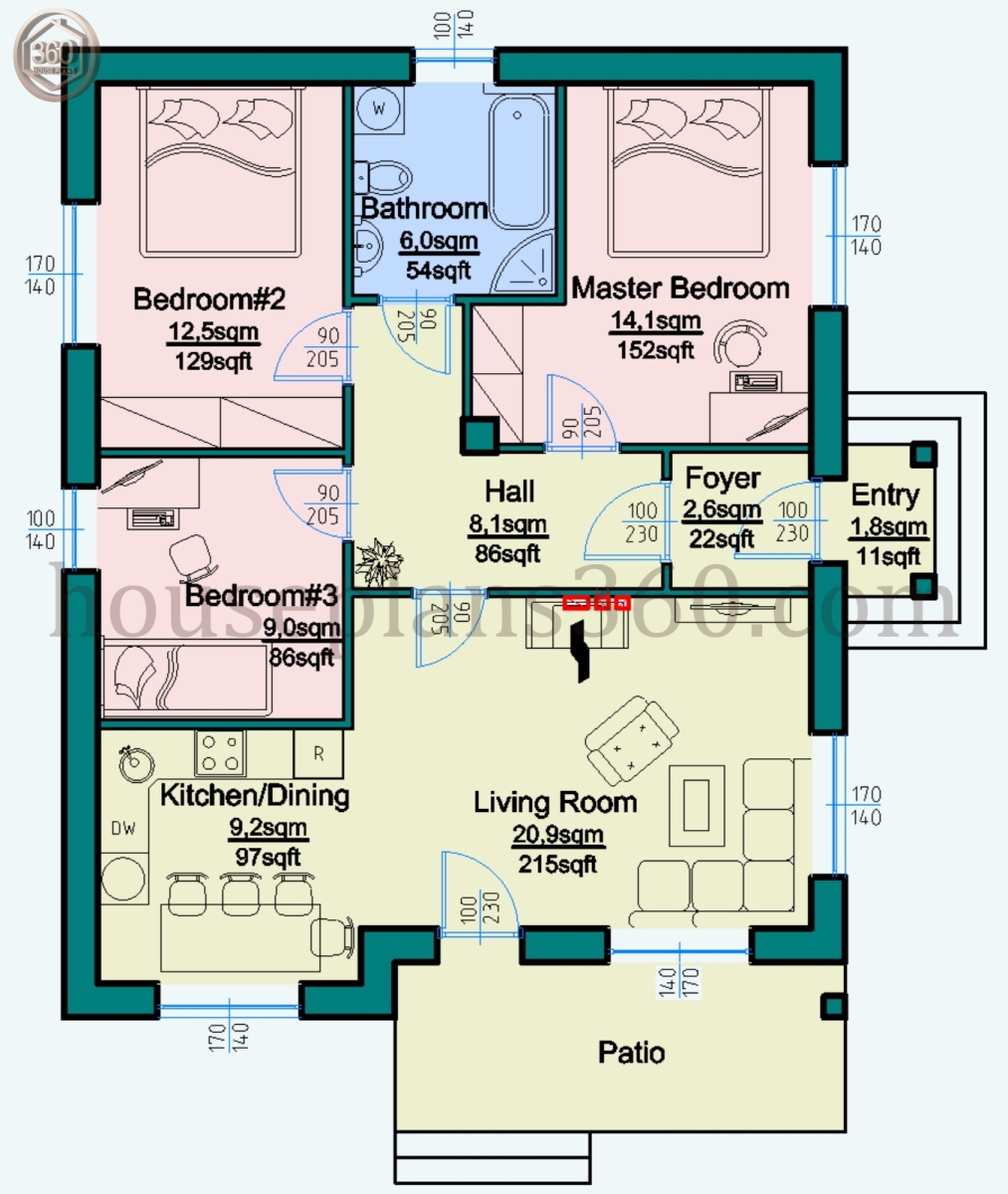

Main Floor

Image 1 of 1

Floor Area: 83.0sqm/893sqft

We customize our house plans for all building materials and wall widths, tie the plans to the ground before selling them FREE of charge.

Edit the house plan according to your needs – Details.


mft' in"mft' in"mft' in"
10.333' 10"11.437' 5"5.819' 0"

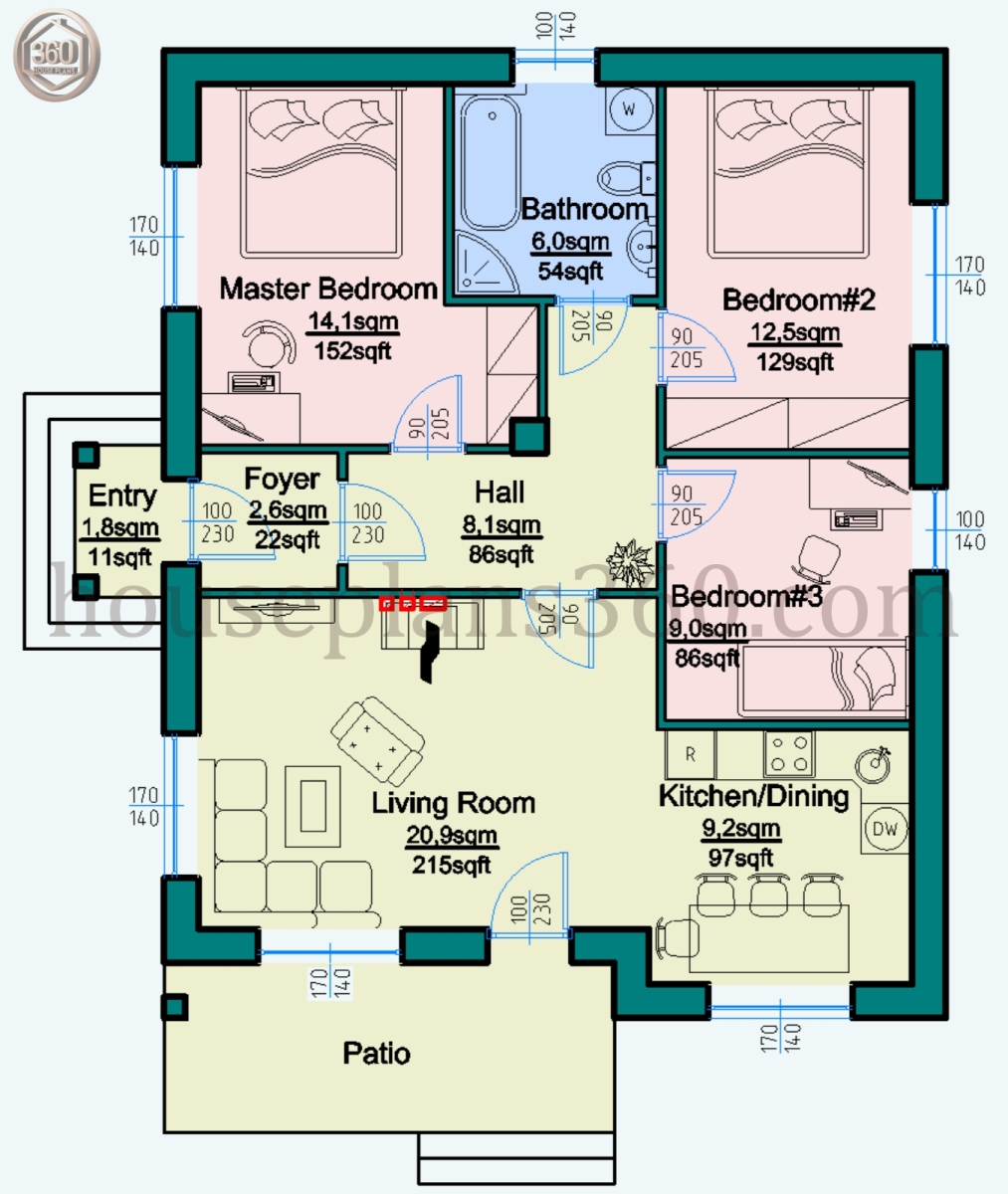

Room Names:Width:Depth:
mft' in"mft' in"
Bathroom2.47' 10"2.58' 2"
Bedroom #22.99' 6"4.314' 1"
Bedroom #32.99' 6"3.110' 2"
Entry1.13' 7"1.85' 11"
Foyer1.75' 7"1.65' 3"
Hall3.712' 2"3.411' 2"
Kitchen/Dining3.110' 2"3.09' 10"
Living Room5.417' 9"3.912' 10"
Master Bedroom4.013' 1"4.314' 1"
Patio5.317' 5"2.06' 7"
Ground Floor:Main Floor:Upper floor:
mft' in"mft' in"mft' in"
0.00' 0"3.09' 10"0.00' 0"
Primary Tilt Angle:Secondary Tilt Angle:


3 bedroom one floor house plans

A small house, which is quite suitable both for permanent residence and as a dacha option. 3 bedroom one floor house plans (three bedrooms) economical in construction. Also economical in operation country project of a one-storey house, which will find a place for all members of the family. The dimensions of the house are made taking into account the minimum waste of wall materials. Three bedrooms are enough to accommodate all owners and even guests of this one-story house. Placing a fireplace in the center of the house – you can spread heat channels to literally every room. Closed firebox, even the most minimal, at 10 kW will be able to provide this house with heat and will help in any situation. In the absence of other heat sources, such as gas or unwillingness to heat with a solid fuel boiler, the house can be safely heated with a single-phase electric boiler, 6 kW and above. The electric boiler does not take up much space and can even be placed in the kitchen, behind the false facade of the kitchen wall. Ventilation ducts of the house are combined into one group, which greatly simplifies their construction. A ventilation duct from the bathroom can be placed both in the ceiling space and in the attic. If the attic is to be used, it only needs to be insulated to prevent condensation due to temperature differences. An open terrace can be of any size, as long as the land allows it.

Arrangement of rooms in the house (3 bedroom one floor house plans)

The entrance to the house is through a small covered porch. From there we get to the hallway, which is a barrier from the cold air that enters the house with the arrival of his household. Then the hall that unites all the rooms of the house, as usual in the projects of one-story houses. Quite spacious living room and kitchen united together, with a total area of thirty square meters. Of all the bedrooms, a master bedroom can be distinguished, which has the largest area of all. The shared bathroom has all the necessary attributes of a bathroom and more. Bath and separate shower cubicle, also in the corner of the free fit washing machine. Exit to the terrace is made between the living room and kitchen, conventionally divided, which is quite convenient both for guests and the mistress of the house. Especially during meals in the open air.



What's included?

All plans are at a scale of 1:50 or ¼”=1′-0″ or larger, such as architectural nodes.

The following pages are included:

  • A site plan showing where the house will be located on the property (developed even before the selected project is paid for).
  • Floor plan(s) showing the arrangement of furniture and other appliances shown on the website, as well as a description of the rooms.
  • Floor plan(s), detailed plans with all necessary axis dimensions (as determined by your builder), rooms, window and door openings, floor marks, vent and chimney locations.
  • Roof plan(s) with roof pitch marks and dimensions of all roof ribs.
  • Cross Sections: Vertical view of the house from foundation to roof, showing floor and roof markings. Floor elevations and other dimensions. Stair section, if any, is required.

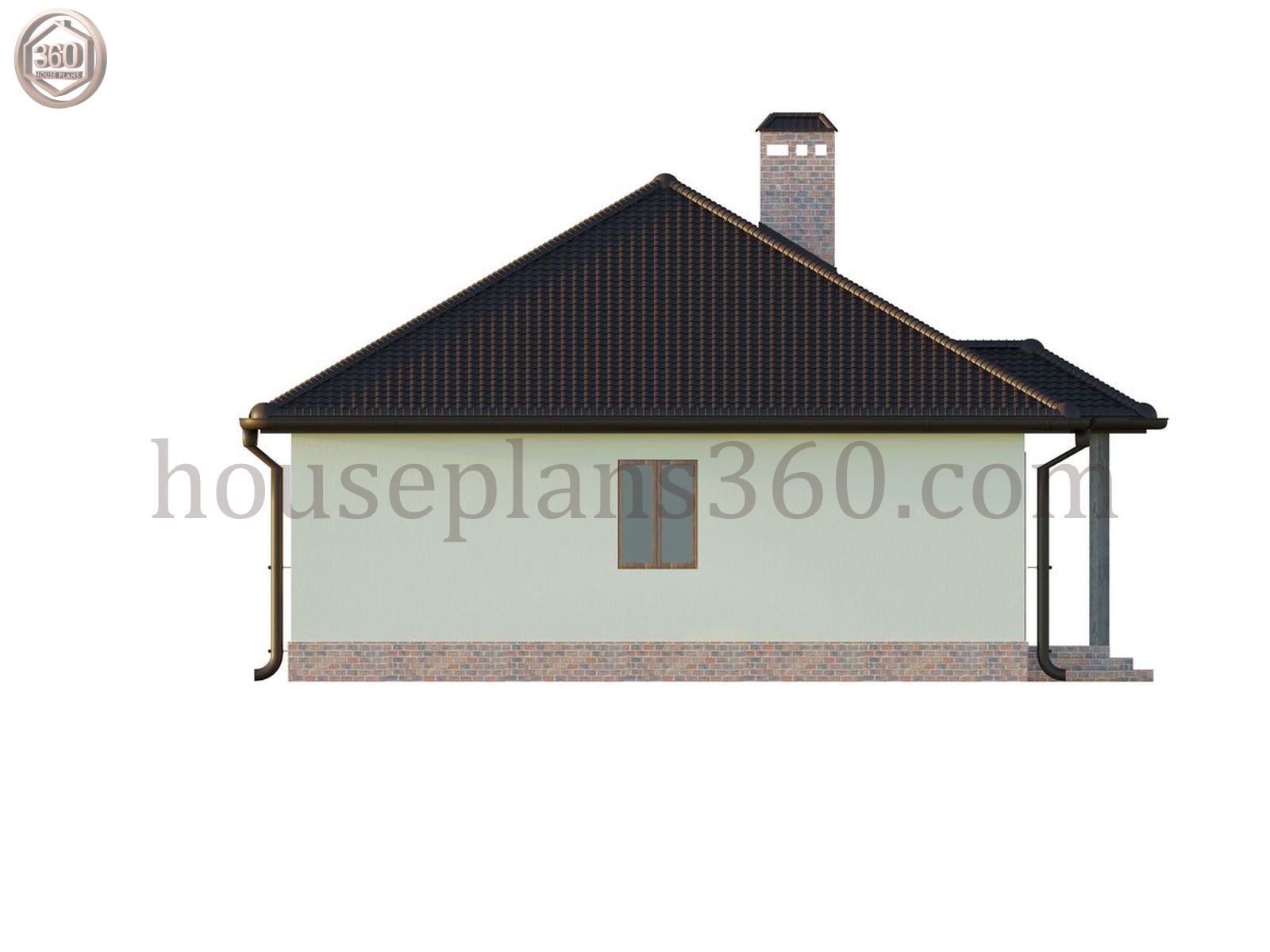

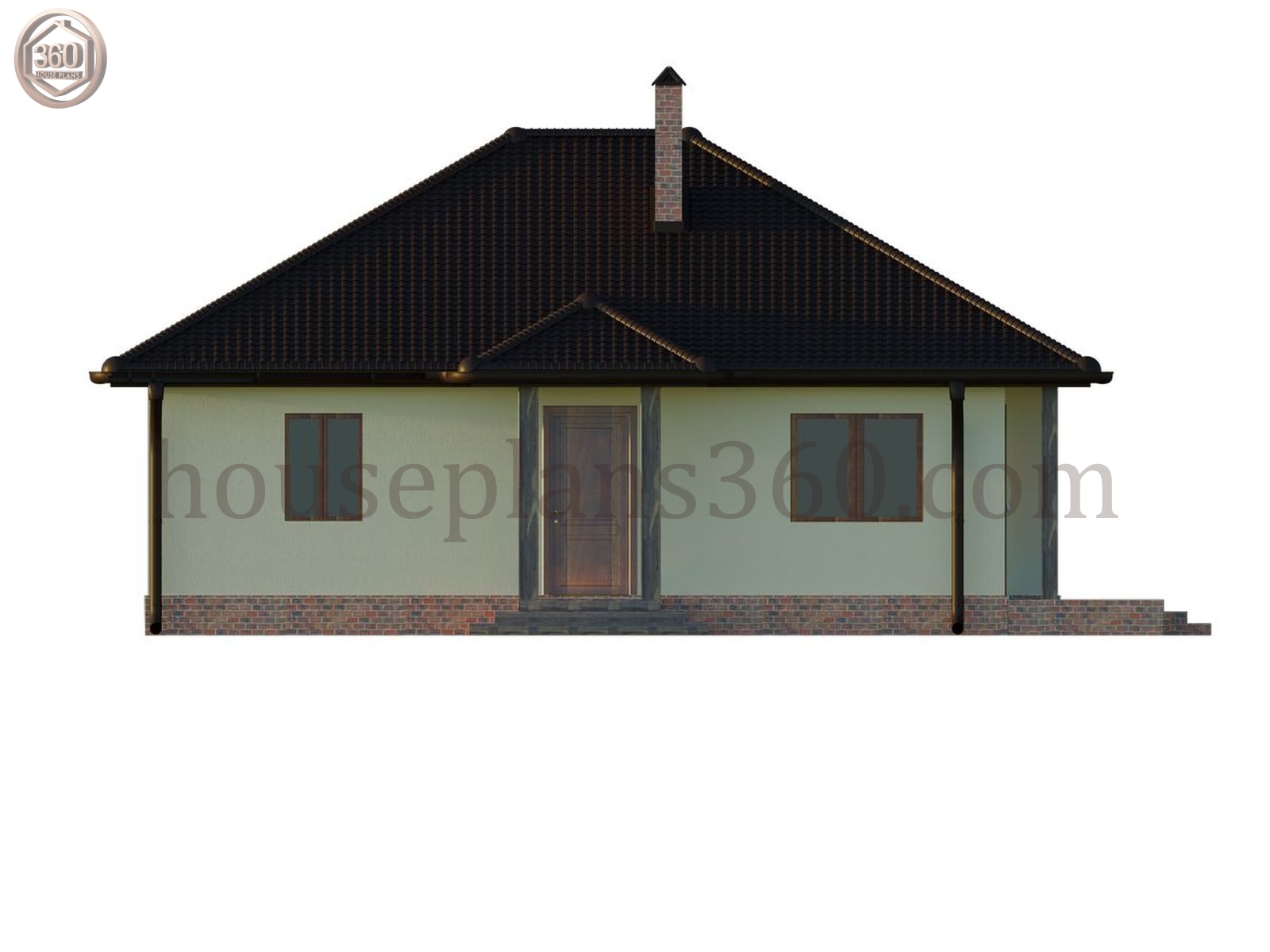

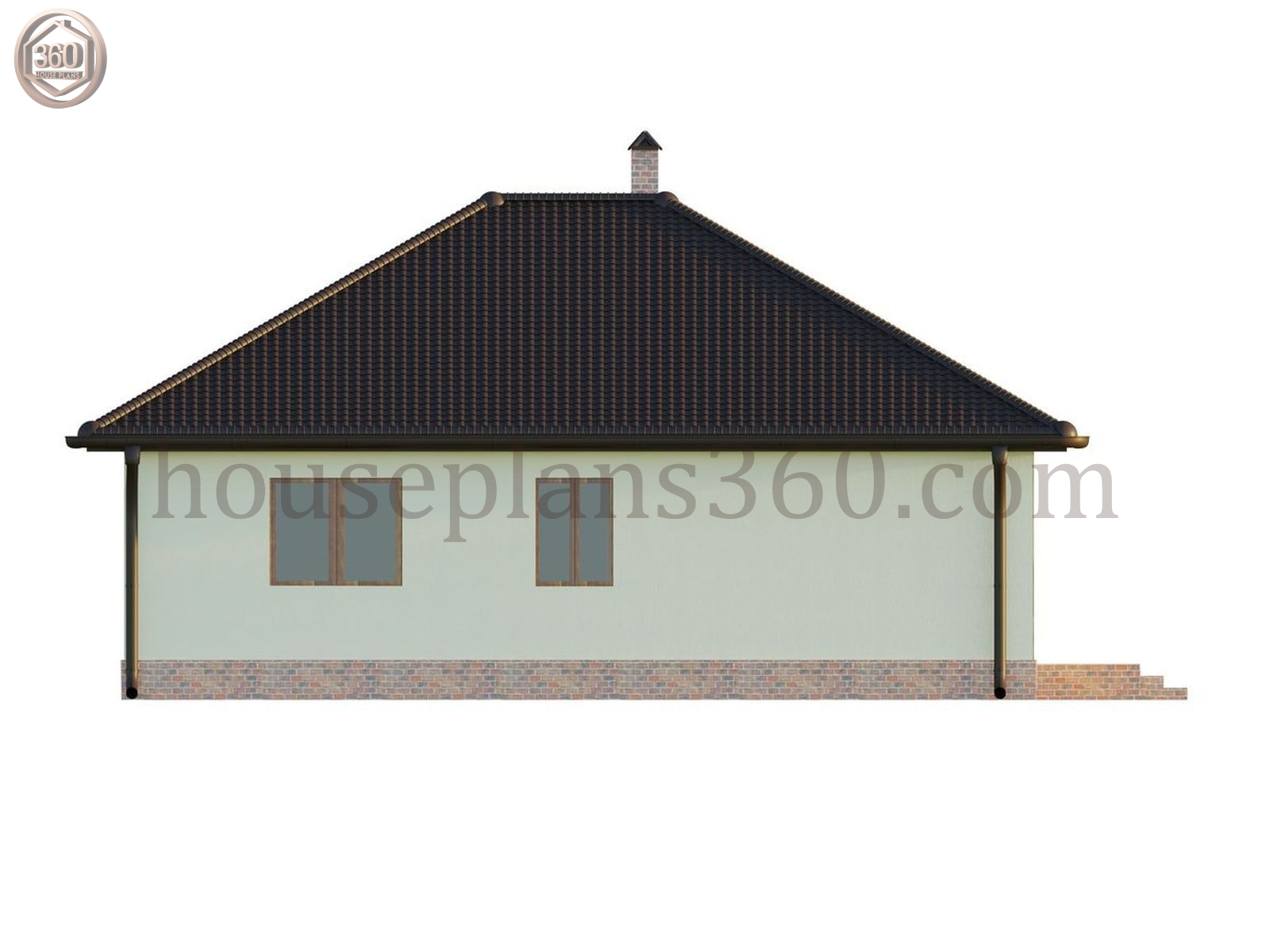

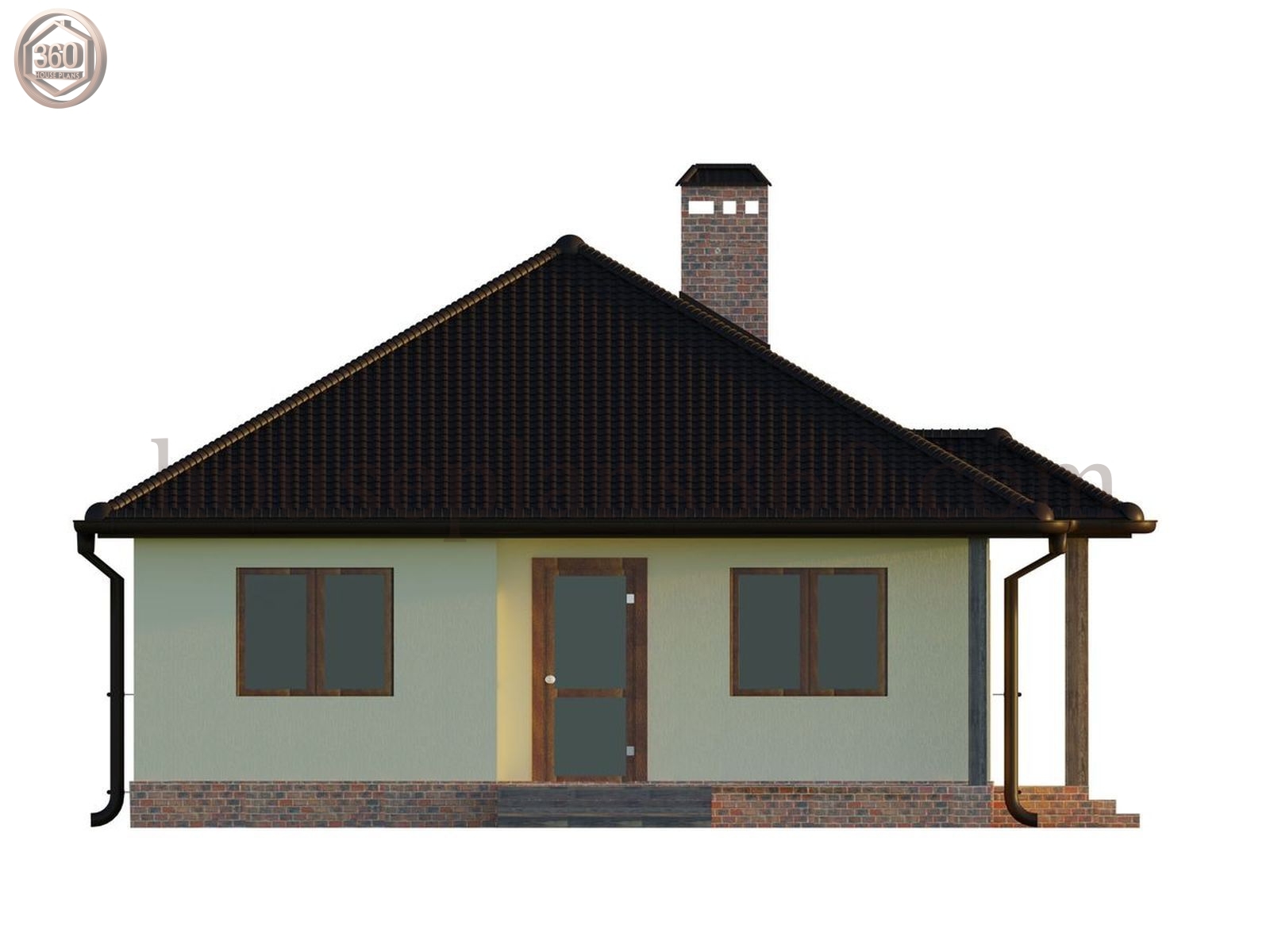

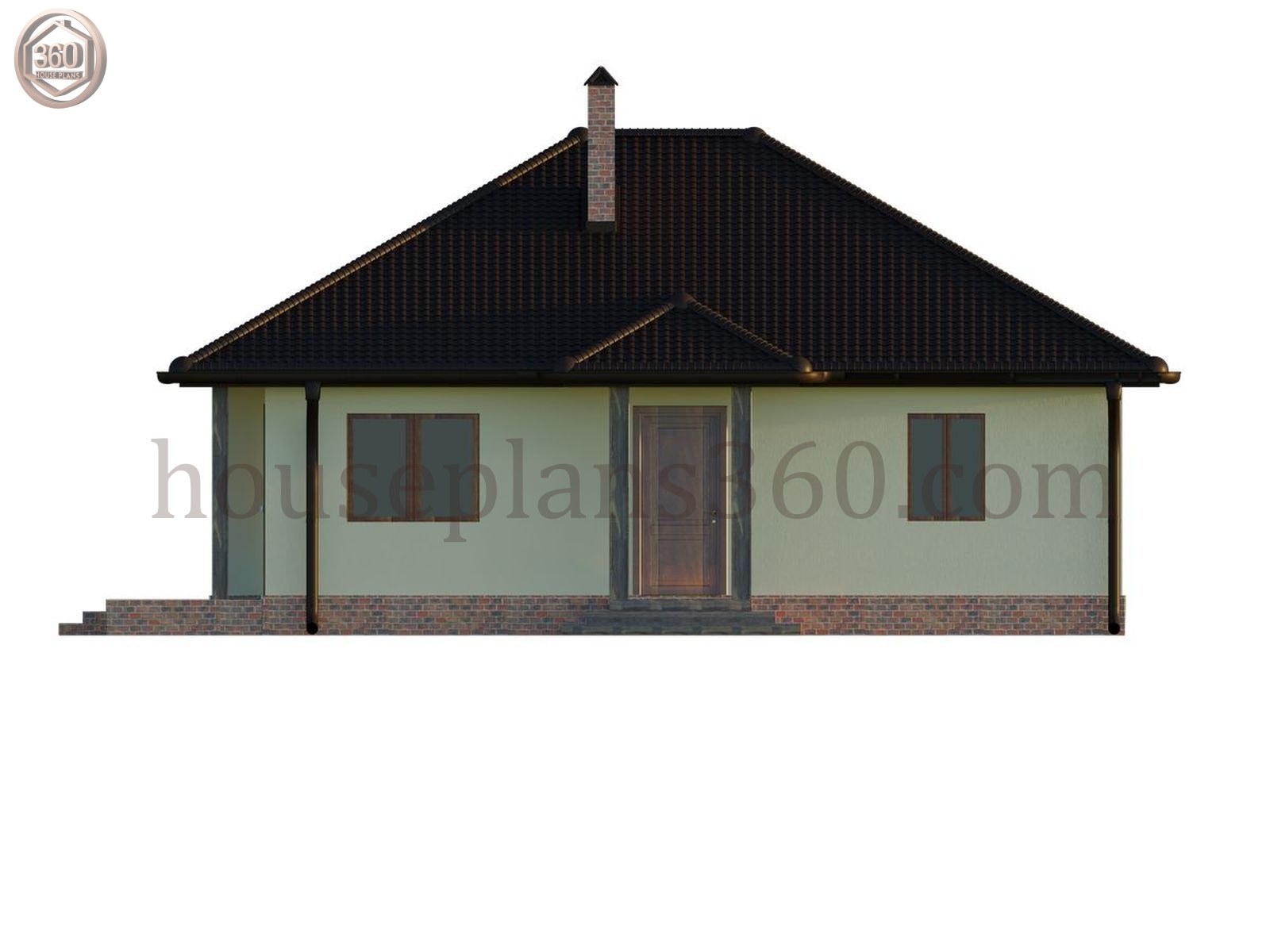

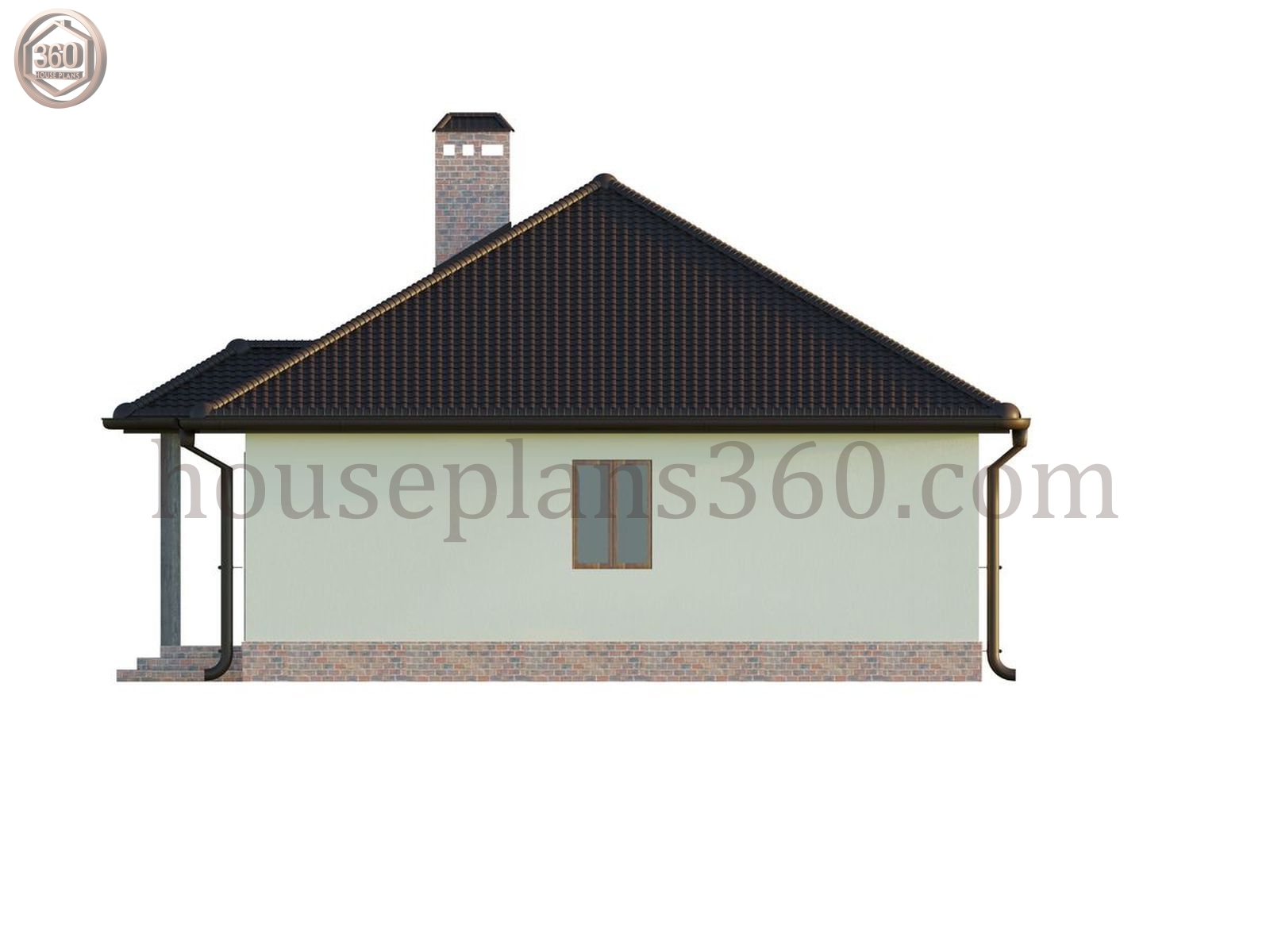

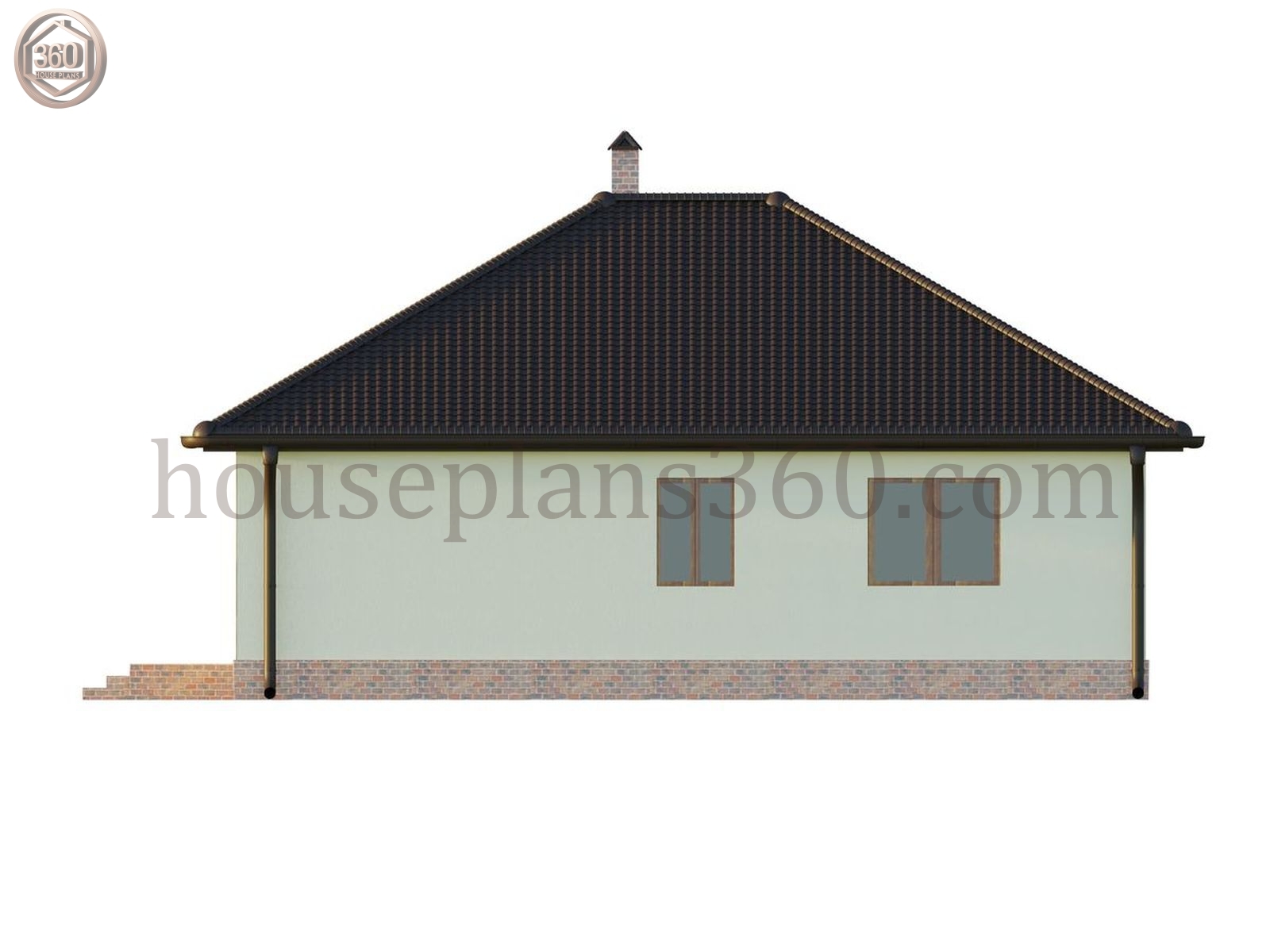

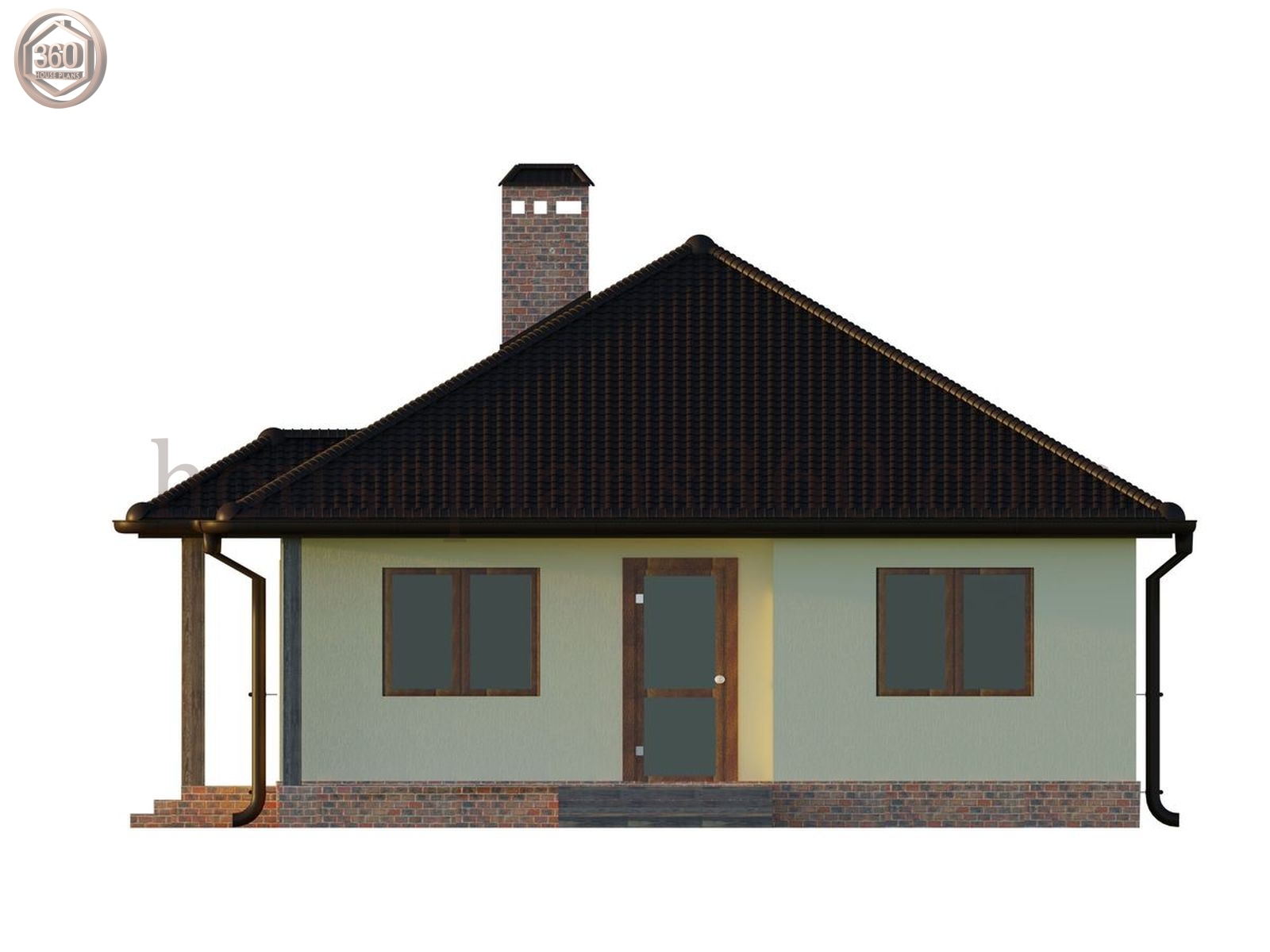

  • Exterior Views: Drawing showing all four sides with dimensions and elevations.
  • Cross section: Vertical section through groups of ducts and chimneys.
  • Elements for filling door and window openings.

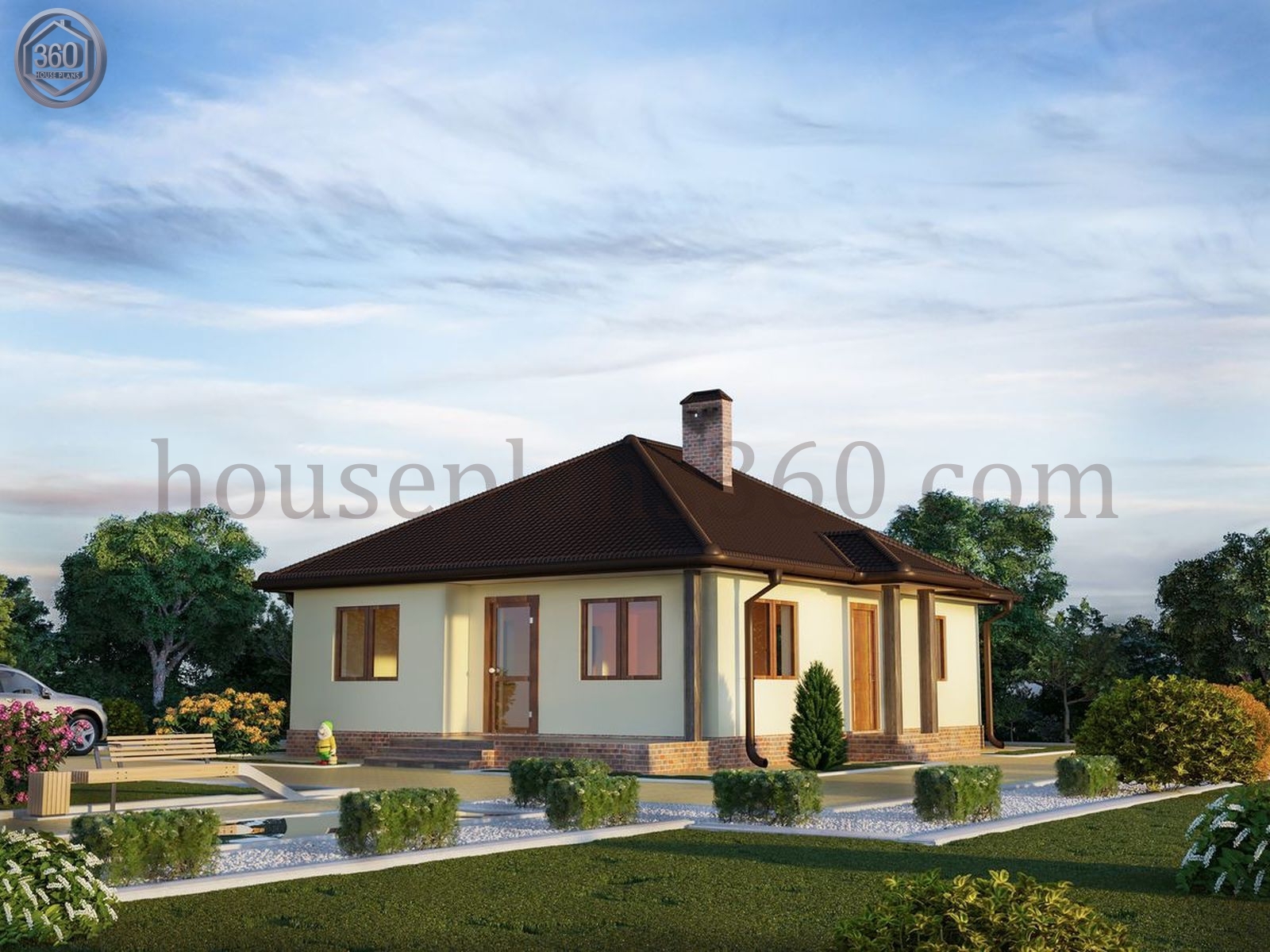

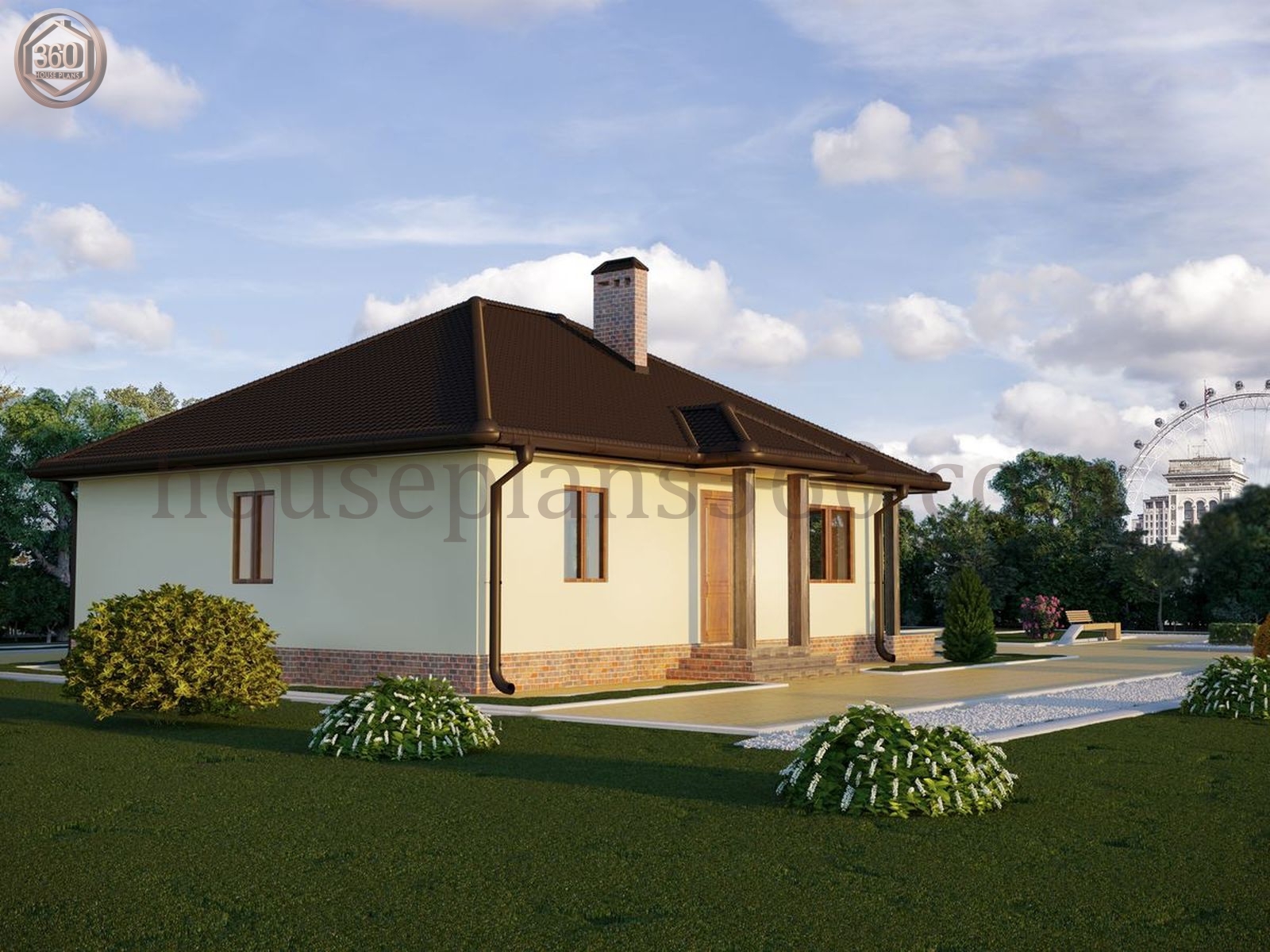

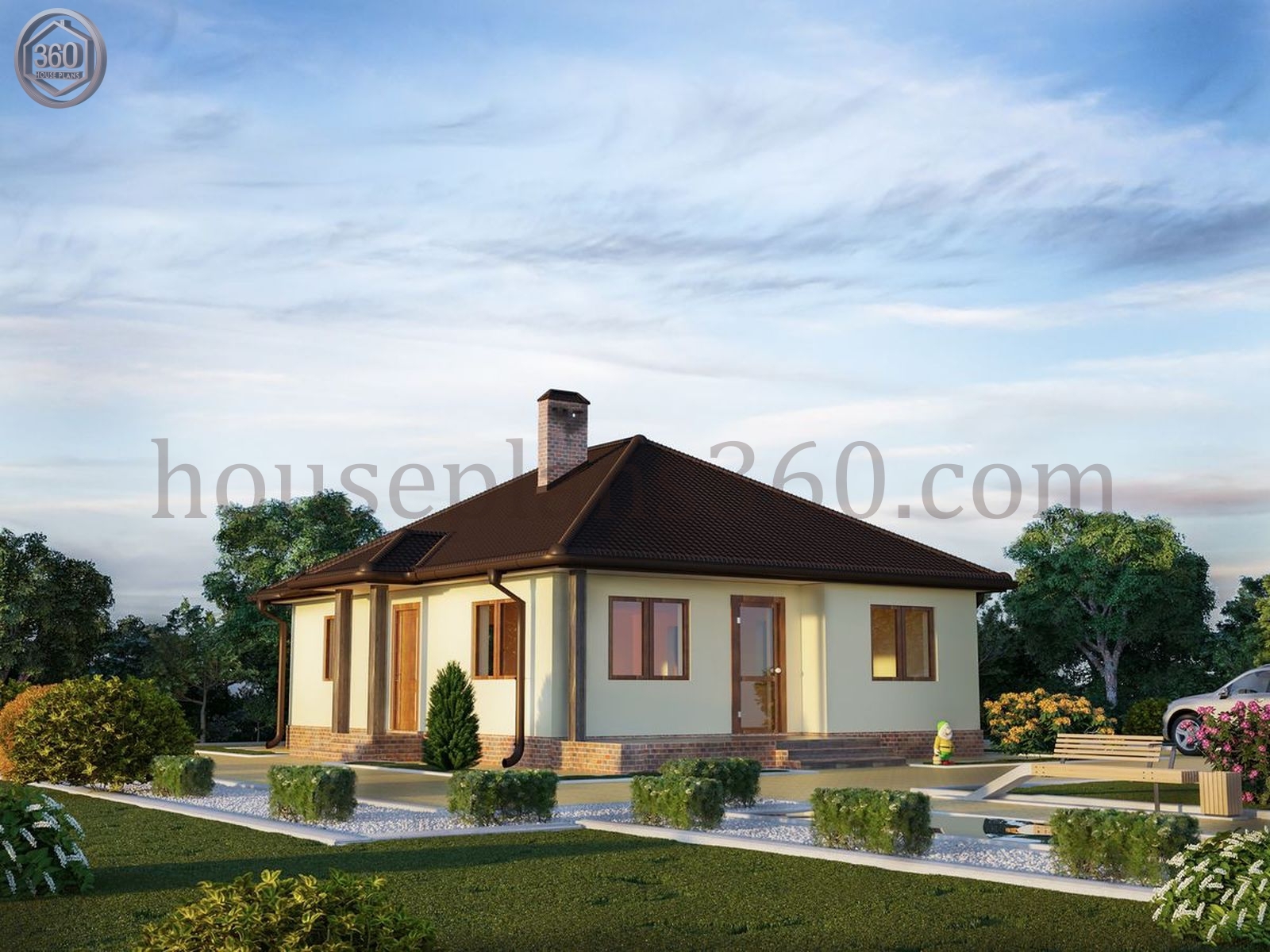

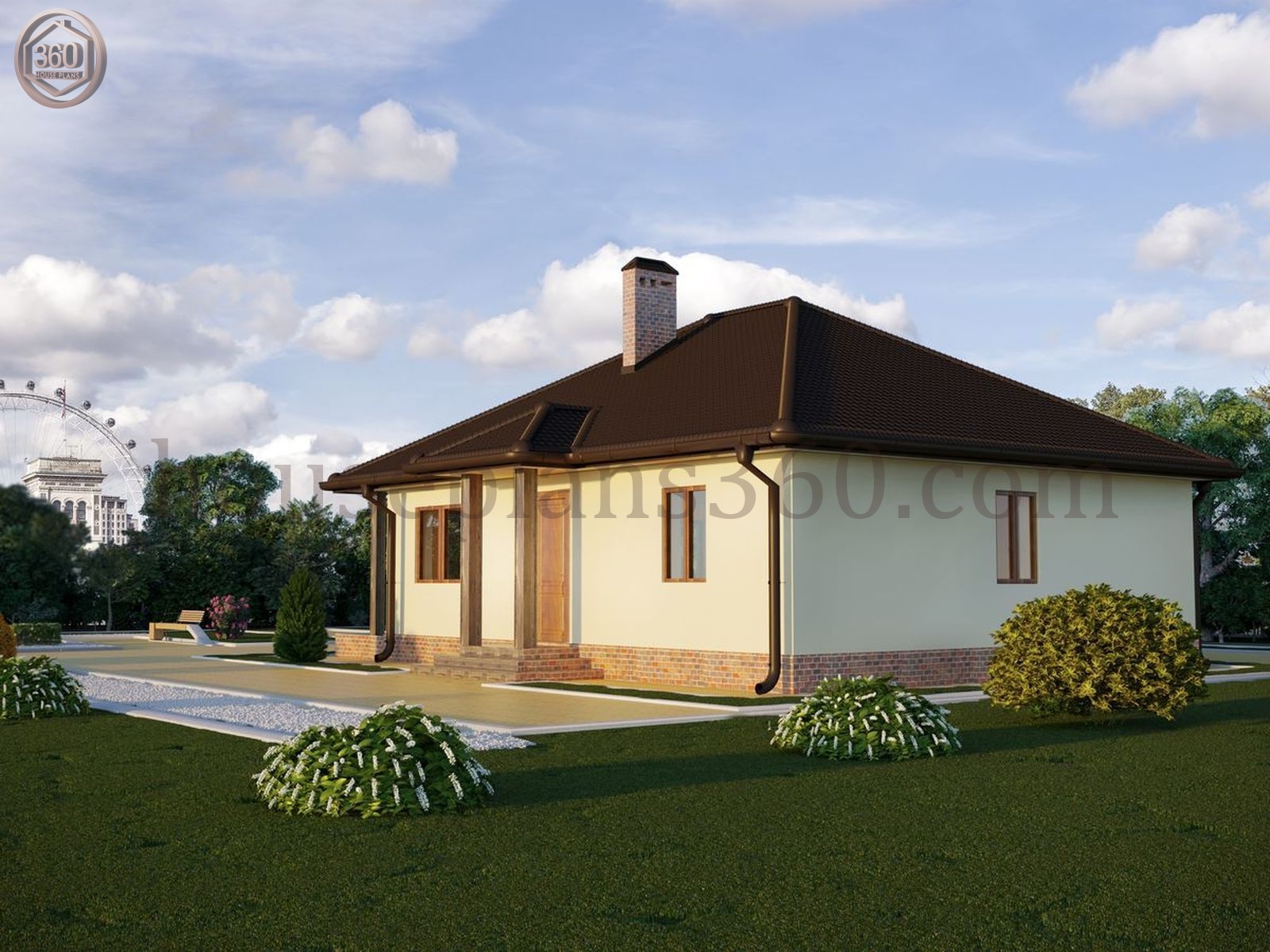

  • 3D views presented on the website.

You may also need beams designed for roof loads, foundations based on an analysis of the soil conditions on the site specific to your region. Your home builder can usually help you with this.

Stock plans do not come with a professional stamp. If your building department requires one, they will only accept a stamp from a professional licensed in the state where you plan to build. In this case, you will need to take your home plans to a local engineer or architect to have them reviewed and stamped.
