Plan #1-103

Original price was: $1,000.0.Current price is: $850.0.

  • 232,9 sq m/2507 sq ft
  • 17,6×17,3 m/57’9″×56’9″
  • 4 Beds
  • 3.5 Baths
  • 2 Garages
Category: Tag:

Description

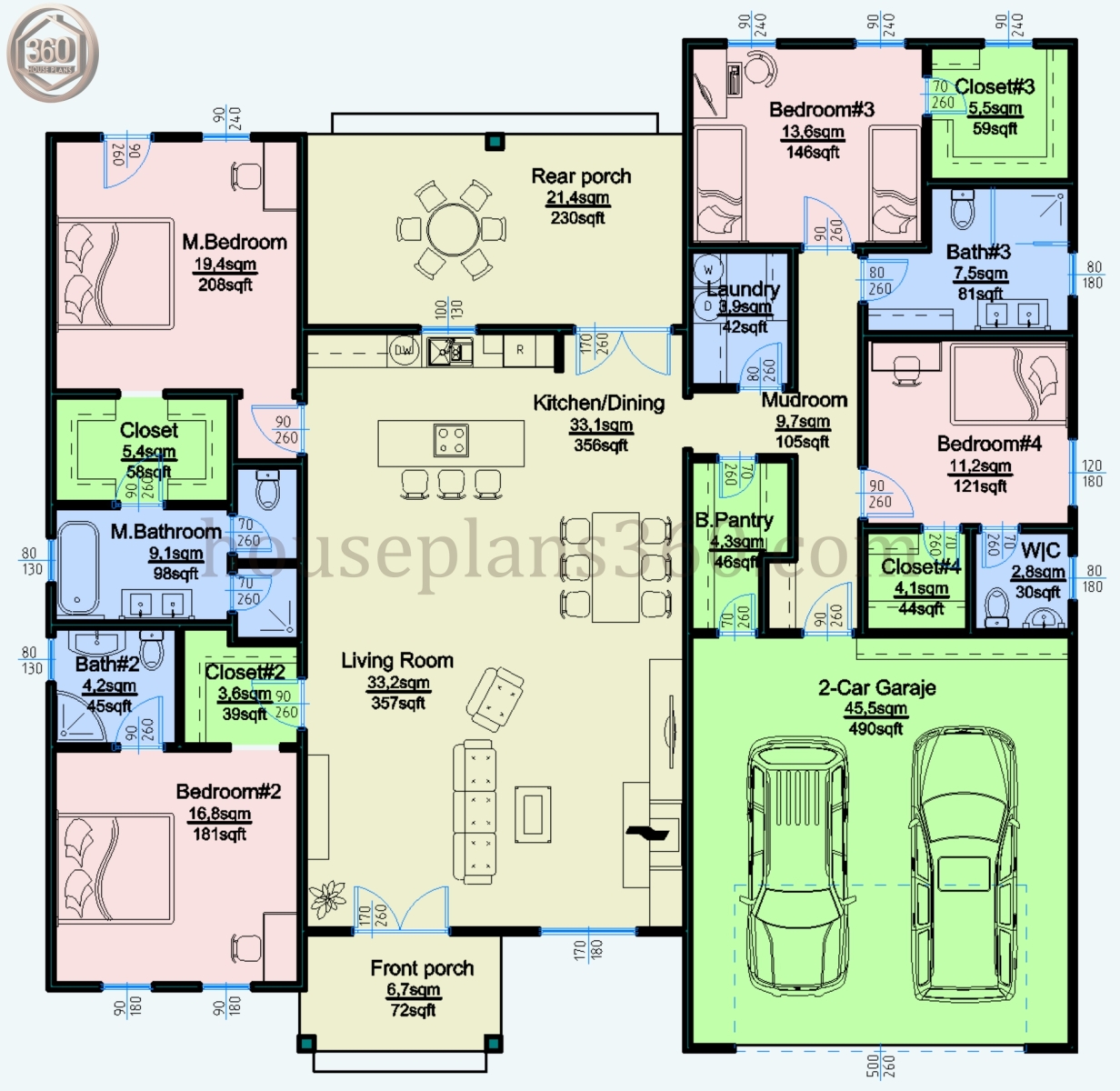

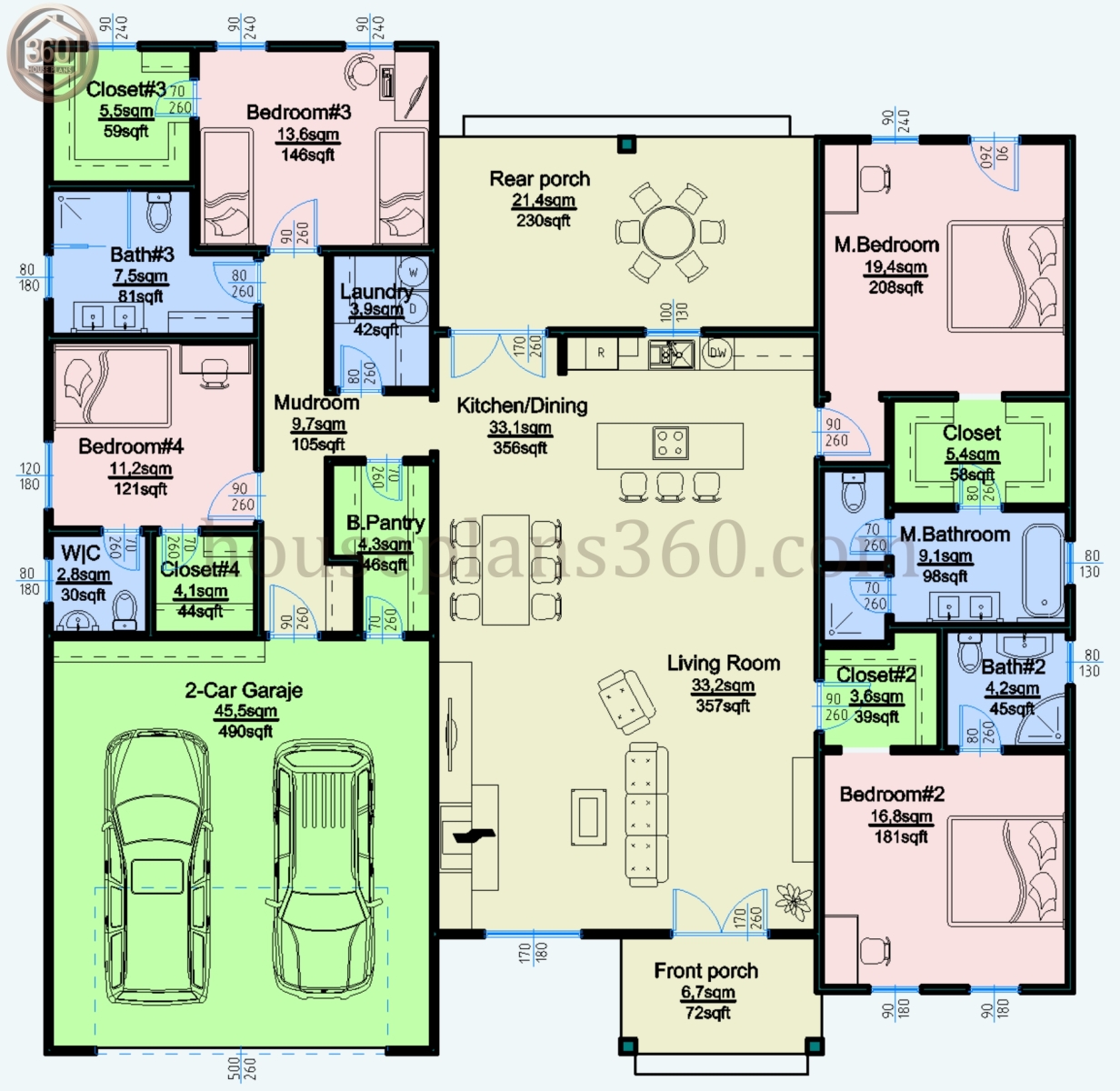

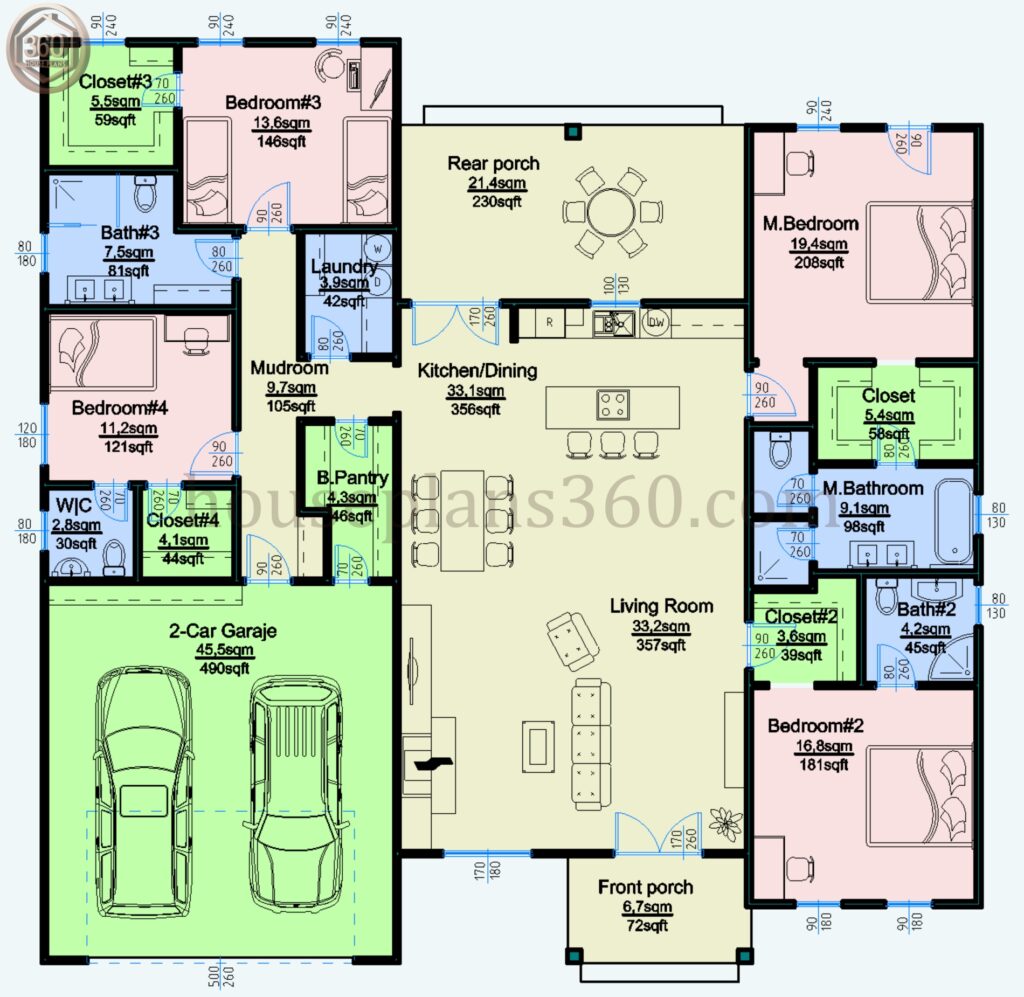

Main Floor

Image 1 of 1

Floor Area: 232.9sqm/2507sqft

We customize our house plans for all building materials and wall widths, tie the plans to the ground before selling them FREE of charge.

Edit the house plan according to your needs – Details.

If you are interested in a custom home plan – we invite you to fill out a simple form on the Customize Home page and we will design a custom home for the price of a standard home.

SPECIFICATIONS & FEATURES

Dimension
Width:Depth:Height:
mft' in"mft' in"mft' in"
17.657' 9"17.356' 9"8.527' 11"
Rooms
Room Names:Width:Depth:
mft' in"mft' in"
M.Bathroom4.213' 9"3.09' 10"
Bathroom3.09' 10"2.16' 11"
Bathroom#21.65' 3"2.47' 10"
Bathroom#31.85' 11"2.58' 2"
M.Bedroom4.314' 1"4.314' 1"
Bedroom #23.110' 2"4.113' 5"
Bedroom #34.013' 1"4.213' 9"
Bedroom #44.013' 1"4.213' 9"
Closet2.47' 10"1.44' 7"
Closet#22.47' 10"1.75' 7"
Closet#31.85' 11"2.16' 11"
Closet#42.89' 2"3.110' 2"
Front porch6.019' 8"2.06' 7"
Garaje6.521' 4"7.022' 12"
Kitchen/Dining6.521' 4"5.116' 9"
Laundry2.16' 11"3.812' 6"
Living Room5.919' 4"5.116' 9"
Mudroom1.75' 7"6.621' 8"
Pantry1.65' 3"2.99' 6"
Rear porch11.036' 1"3.310' 10"
W|C1.54' 11"1.54' 11"
Ceiling
Ground Floor:Main Floor:Upper floor:
mft' in"mft' in"mft' in"
0.00' 0"3.09' 10"0.00' 0"
Roof
Primary Tilt Angle:Secondary Tilt Angle:
379/1200/12

ABOUT THIS PLAN

Farmhouse 4 bedroom house plans

The one-story house with four bedrooms and four bathrooms is a conveniently designed project ideal for a large family.

It features thoughtful zoning for everyone.

The main focus when creating this plan was ensuring comfort and privacy. The children’s bedrooms are designed so that one can accommodate a child of one gender and one of the opposite gender. Each of these rooms has its own wardrobe and a separate bathroom located across the hall for maximum convenience and independence. Additionally, one of these bedrooms can easily be converted into a guest room, offering flexibility in how the space is used. The house is also beautifully and compactly designed to include all the necessary rooms for residential and secondary purposes.

Arrangement of rooms in the house (Farmhouse 4 bedroom house plans)

This single-story house design includes a spacious two-car garage, which is highly relevant today. There are two convenient entrances from the garage into the house: one leads through the hall, where you can place a wardrobe for outerwear, and the other leads through the pantry. The pantry entrance is especially convenient for unloading groceries and for quick access to food while cooking.

Further along is a bathroom that can serve as a guest bathroom or be associated with one of the bedrooms. The project includes two smaller guest or children’s bedrooms and one master bedroom. The master bedroom has its own spacious bathroom with a shower, as well as direct access to a walk-in closet.

The spacious living room, combined with the kitchen and dining room, creates a common space divided into functional areas where every member of a large family can find their place. The exit to the terrace is near the kitchen, which makes it easy to organize feasts and celebrations on the covered terrace. A second covered terrace can be added at the entrance to the house on the non-sunny side. This will be especially useful in hot or windy weather, ensuring a comfortable time outdoors.

The laundry room is conveniently located in the central part of the house.

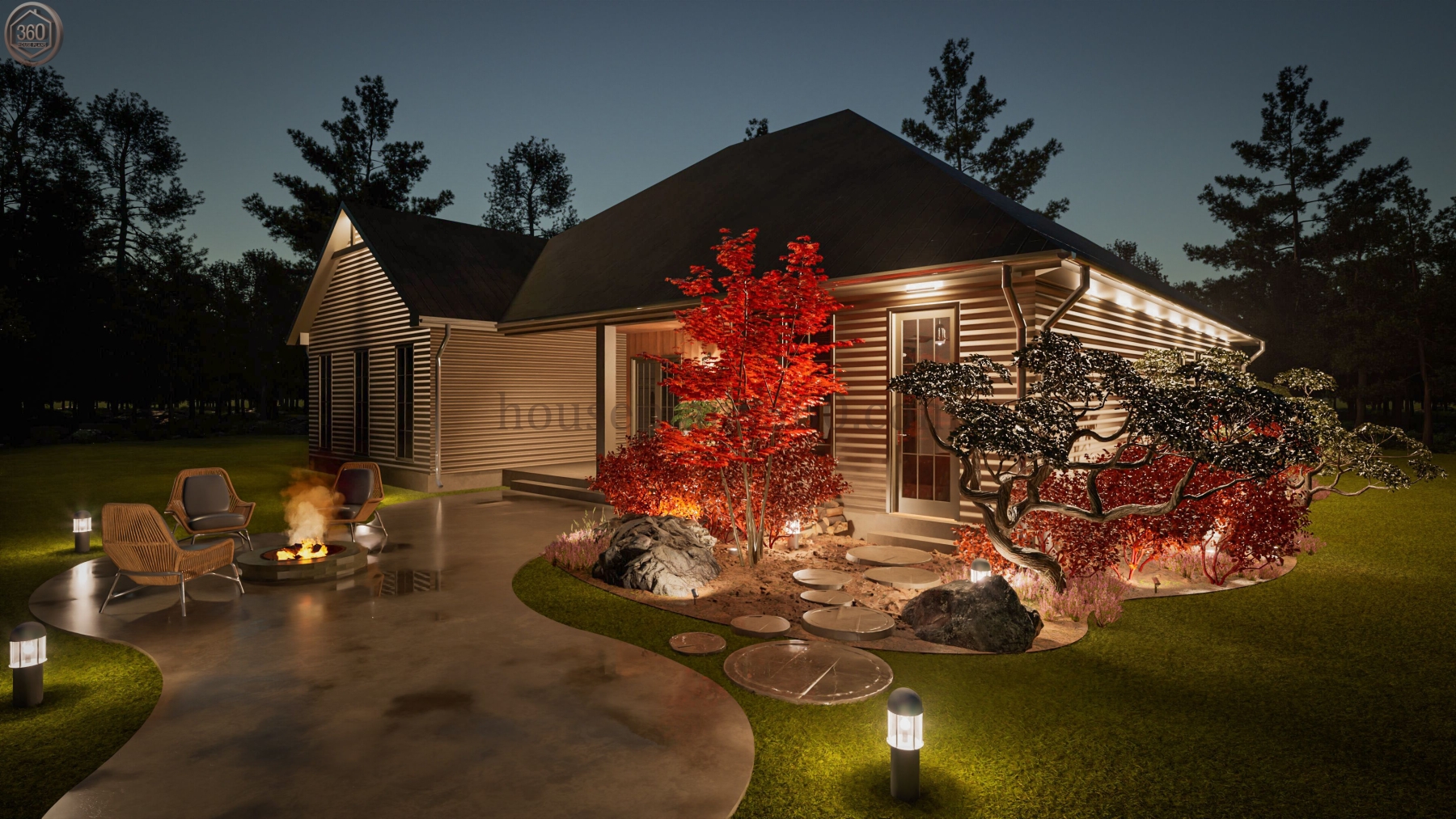

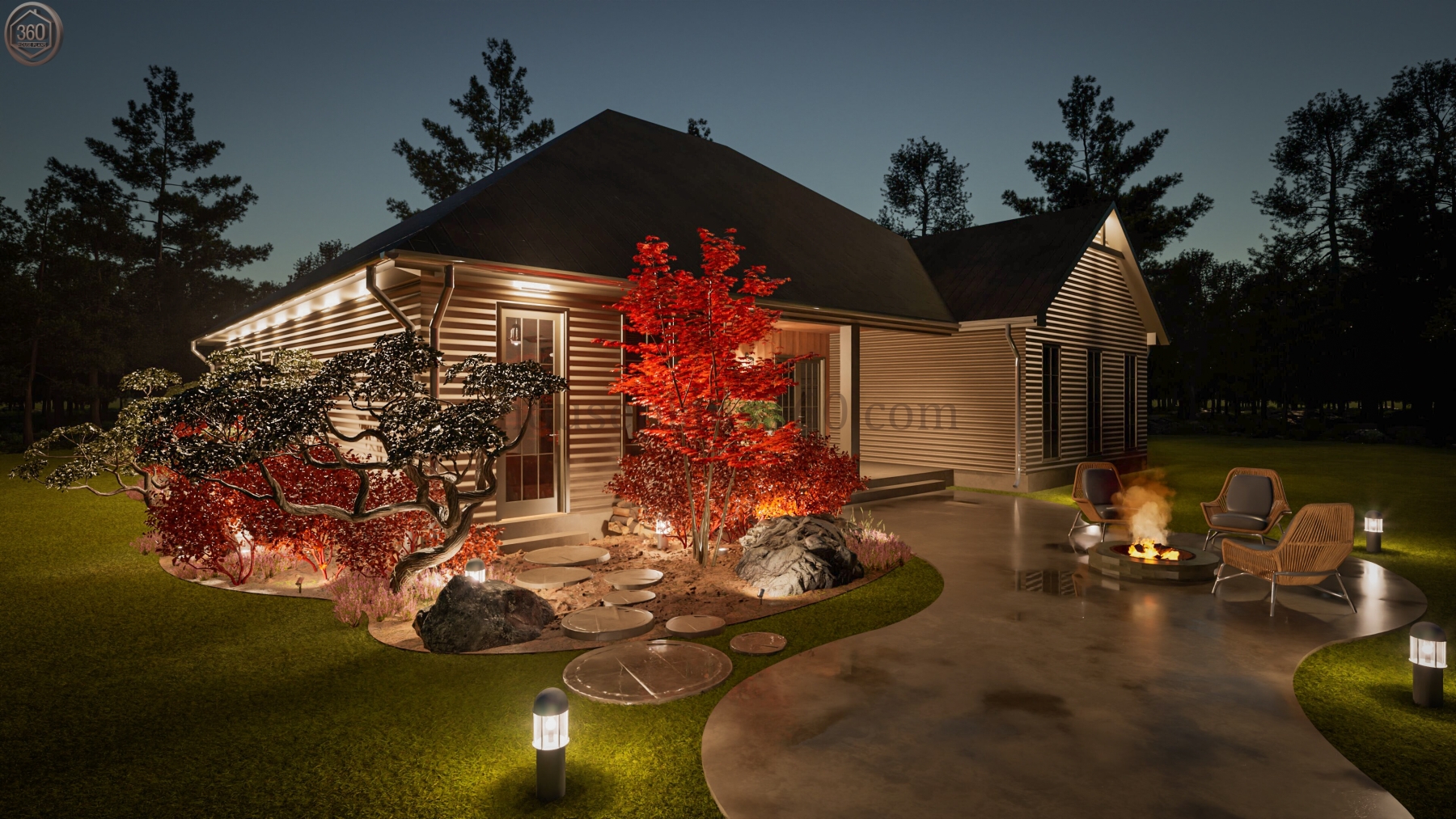

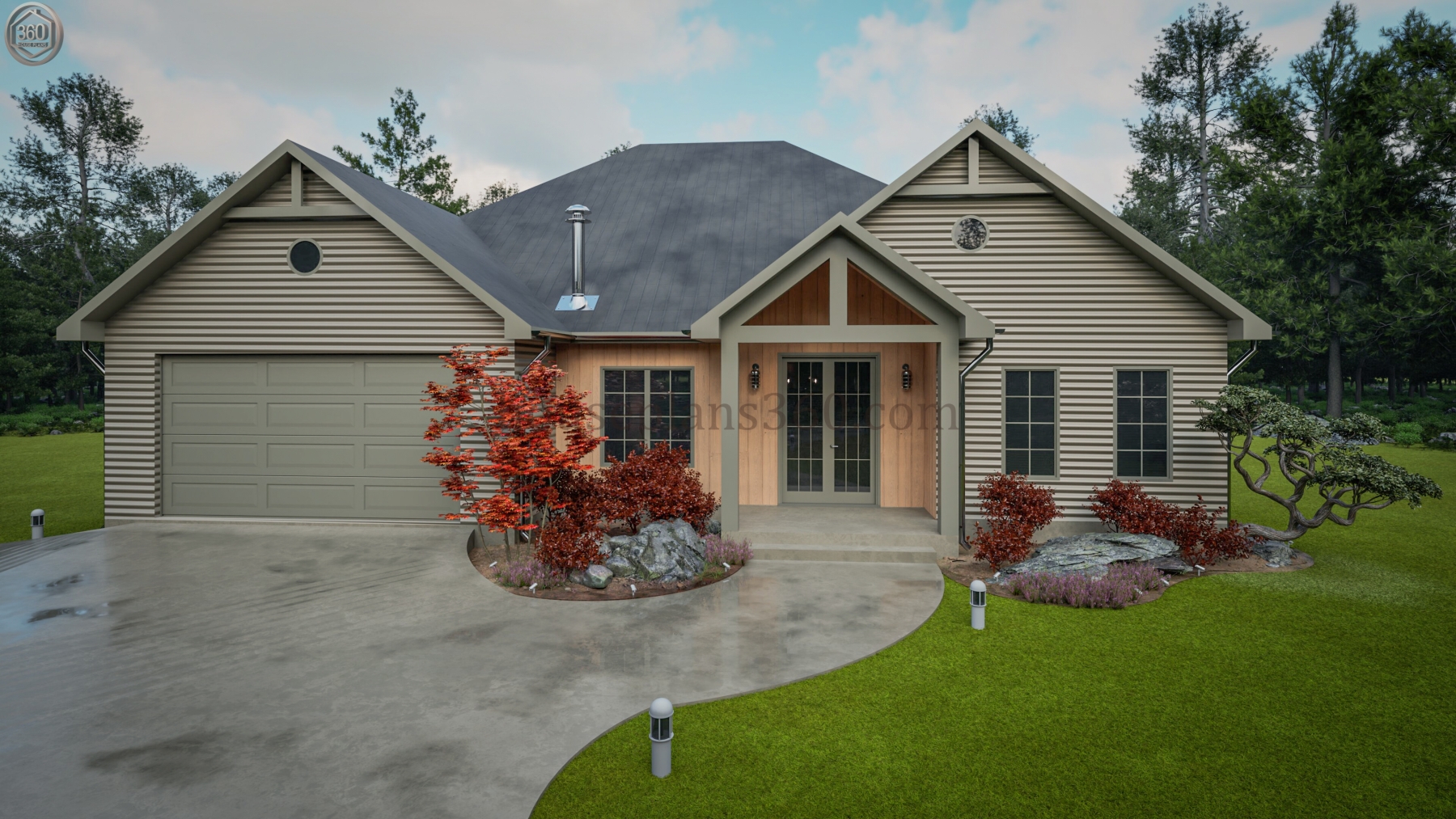

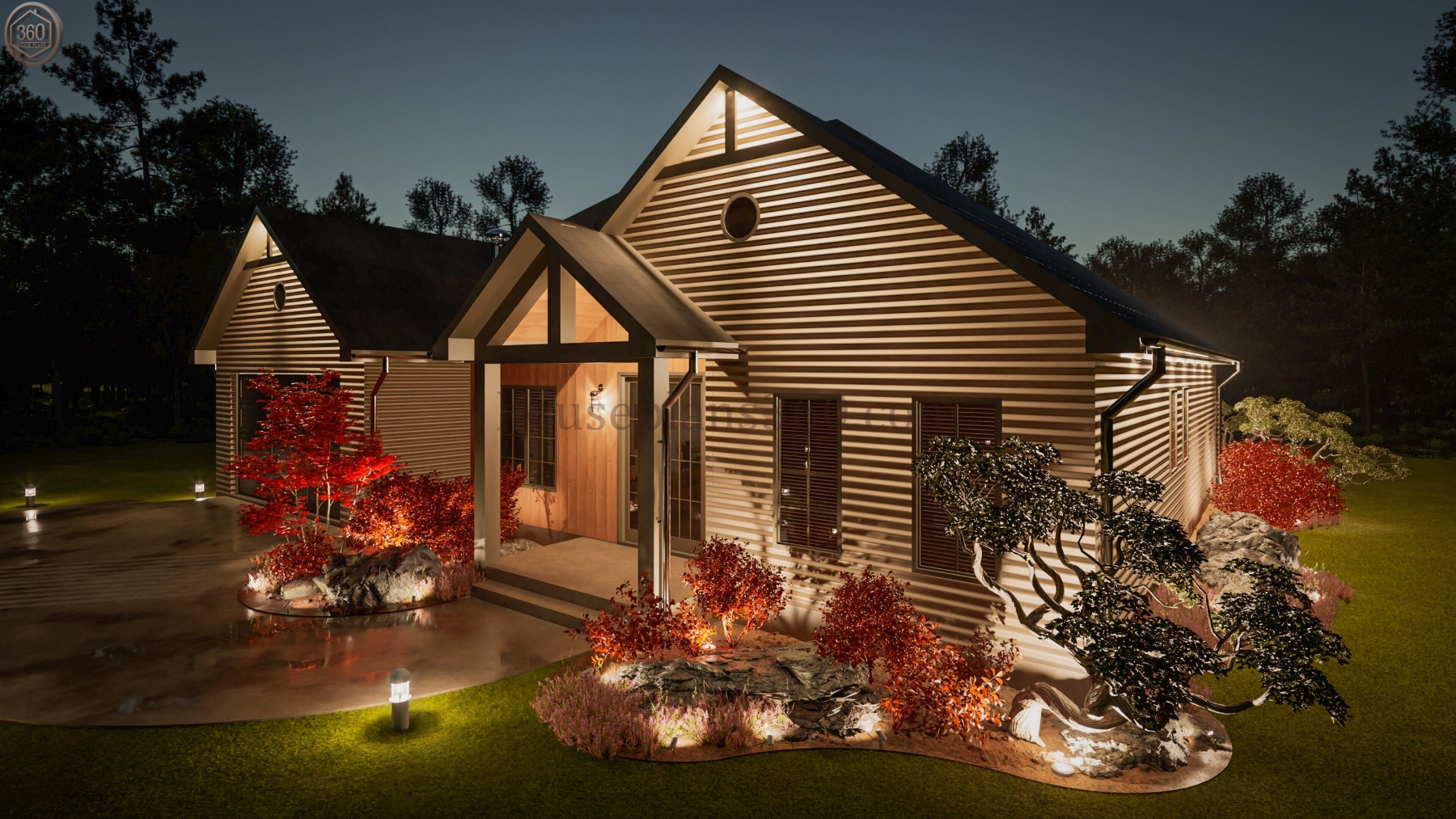

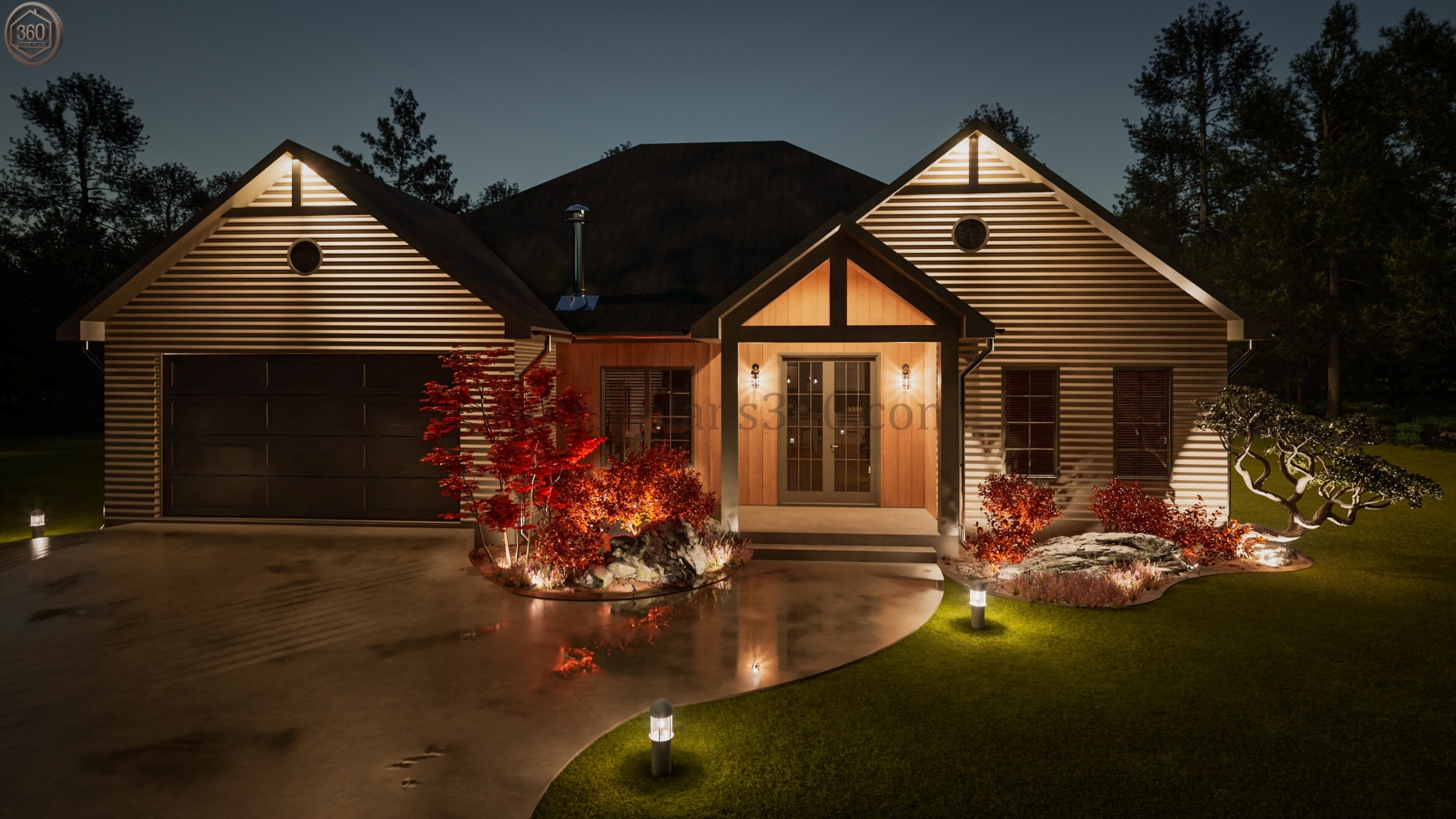

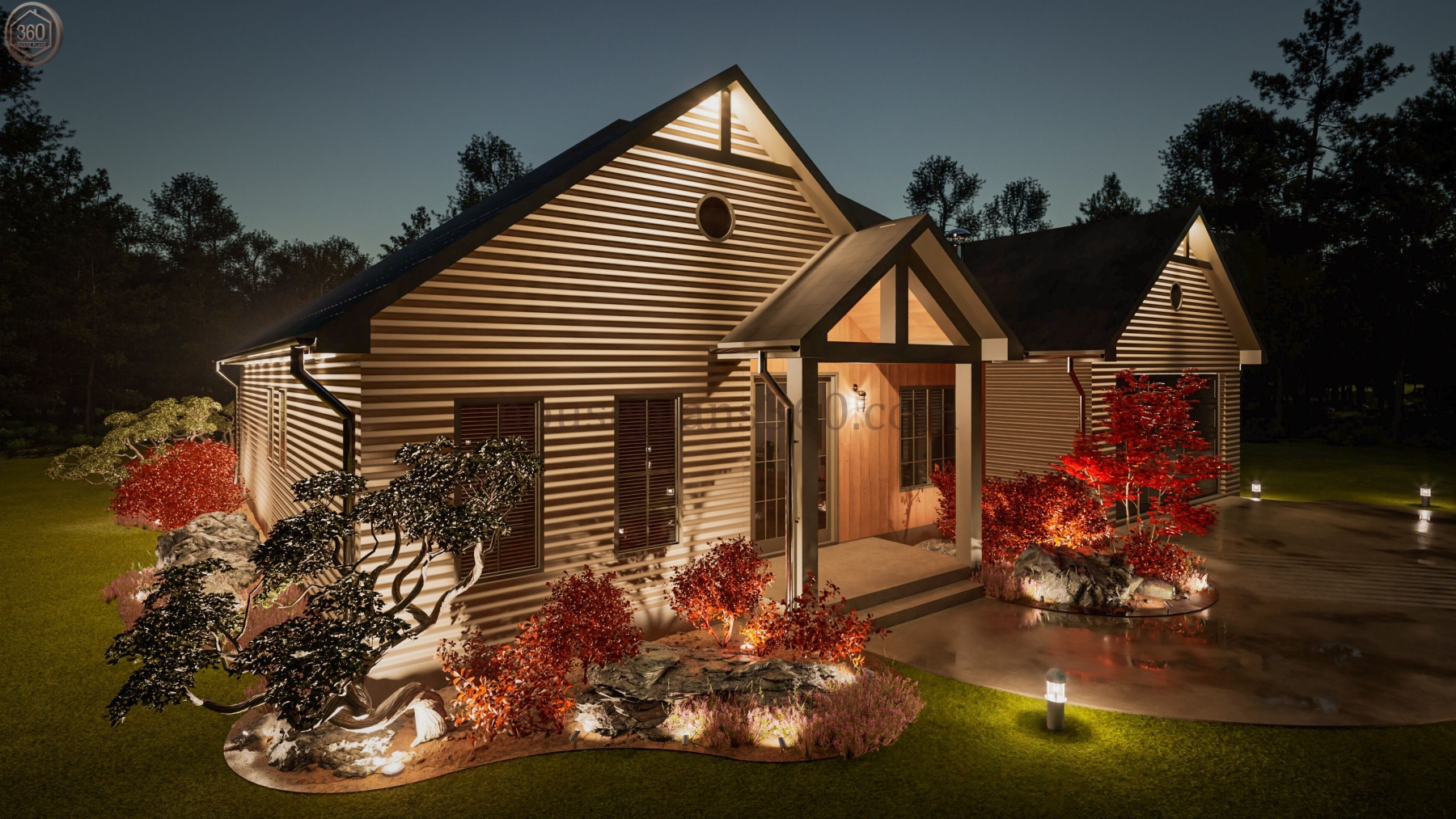

Exterior

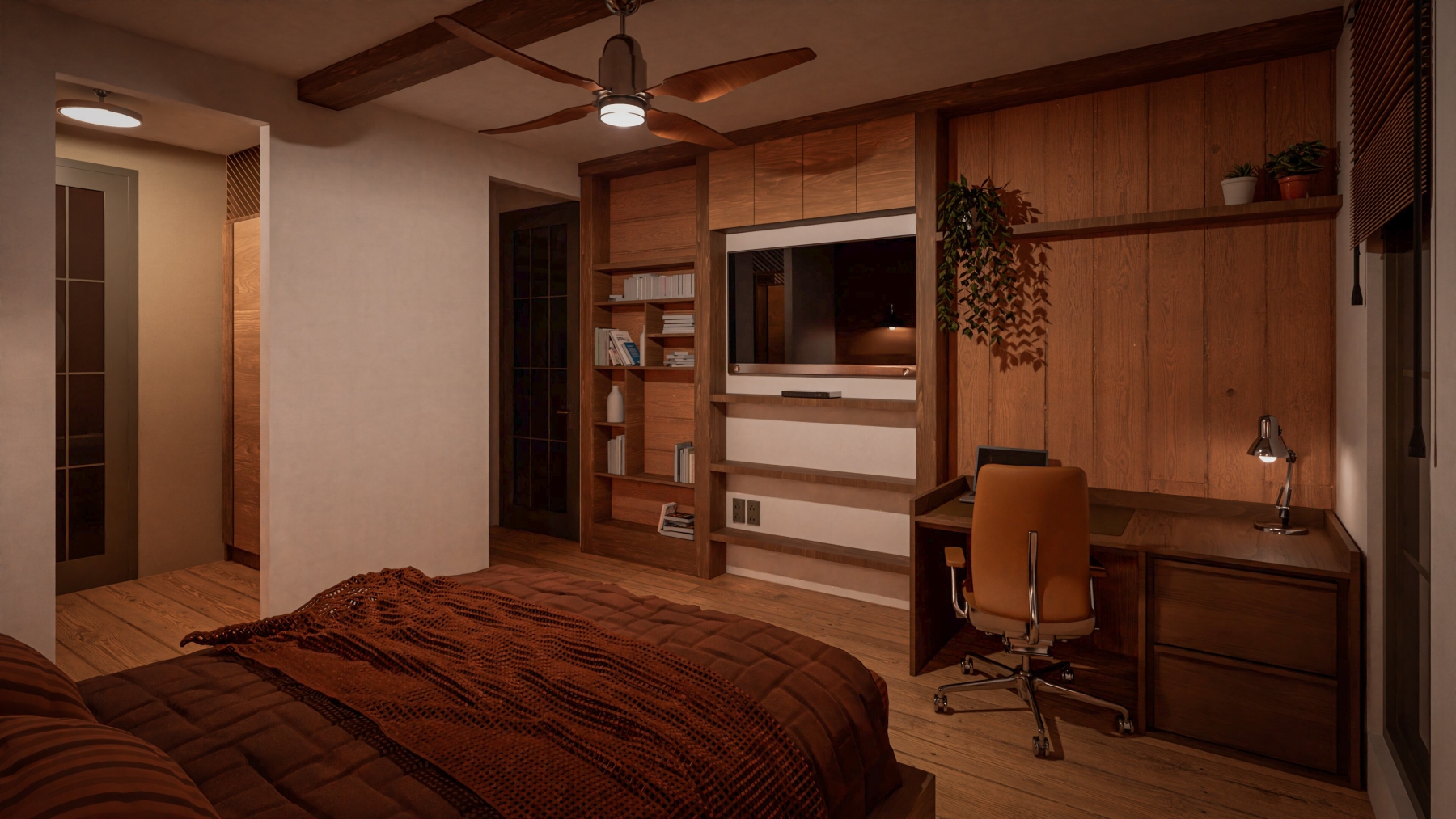

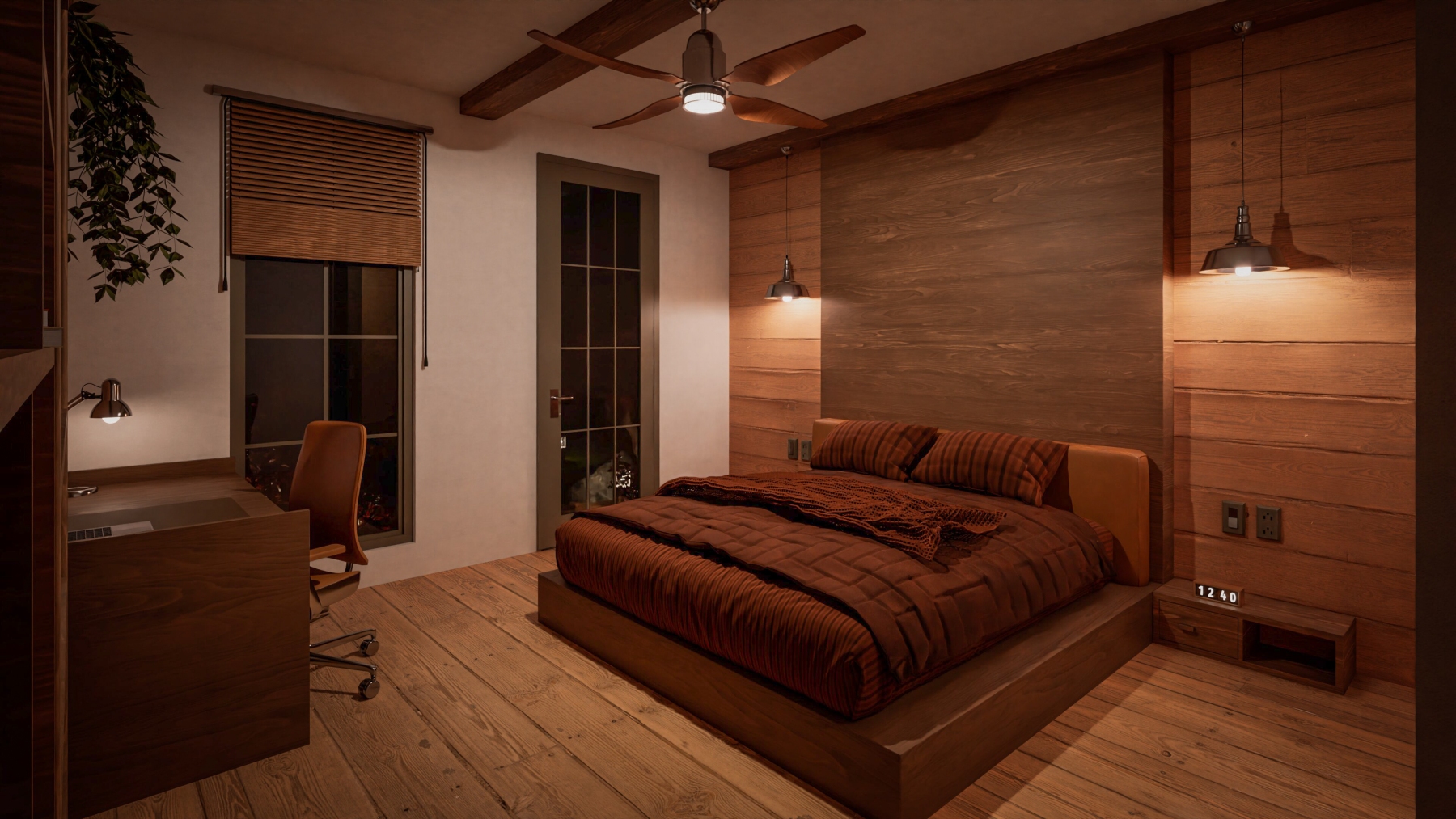

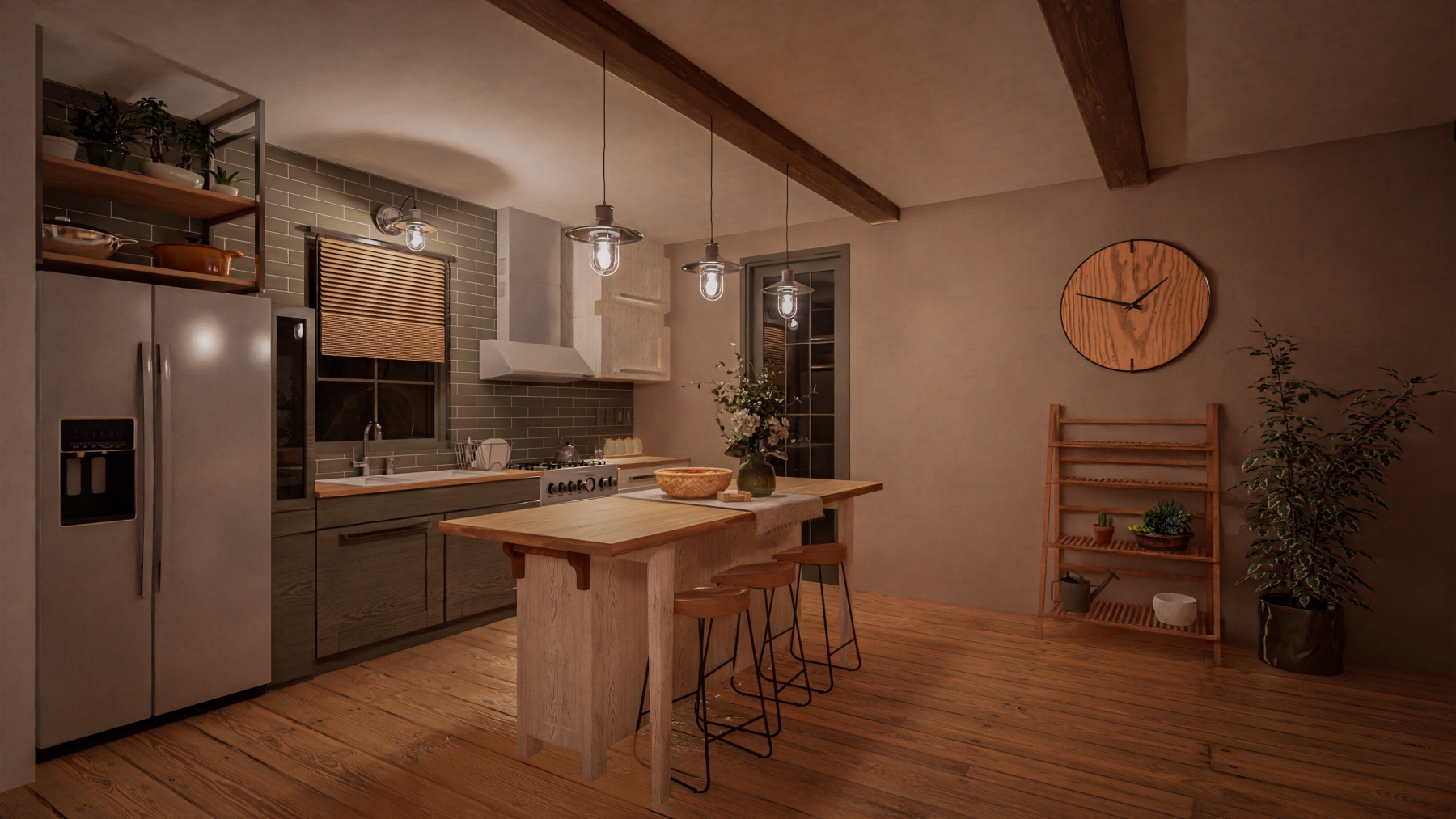

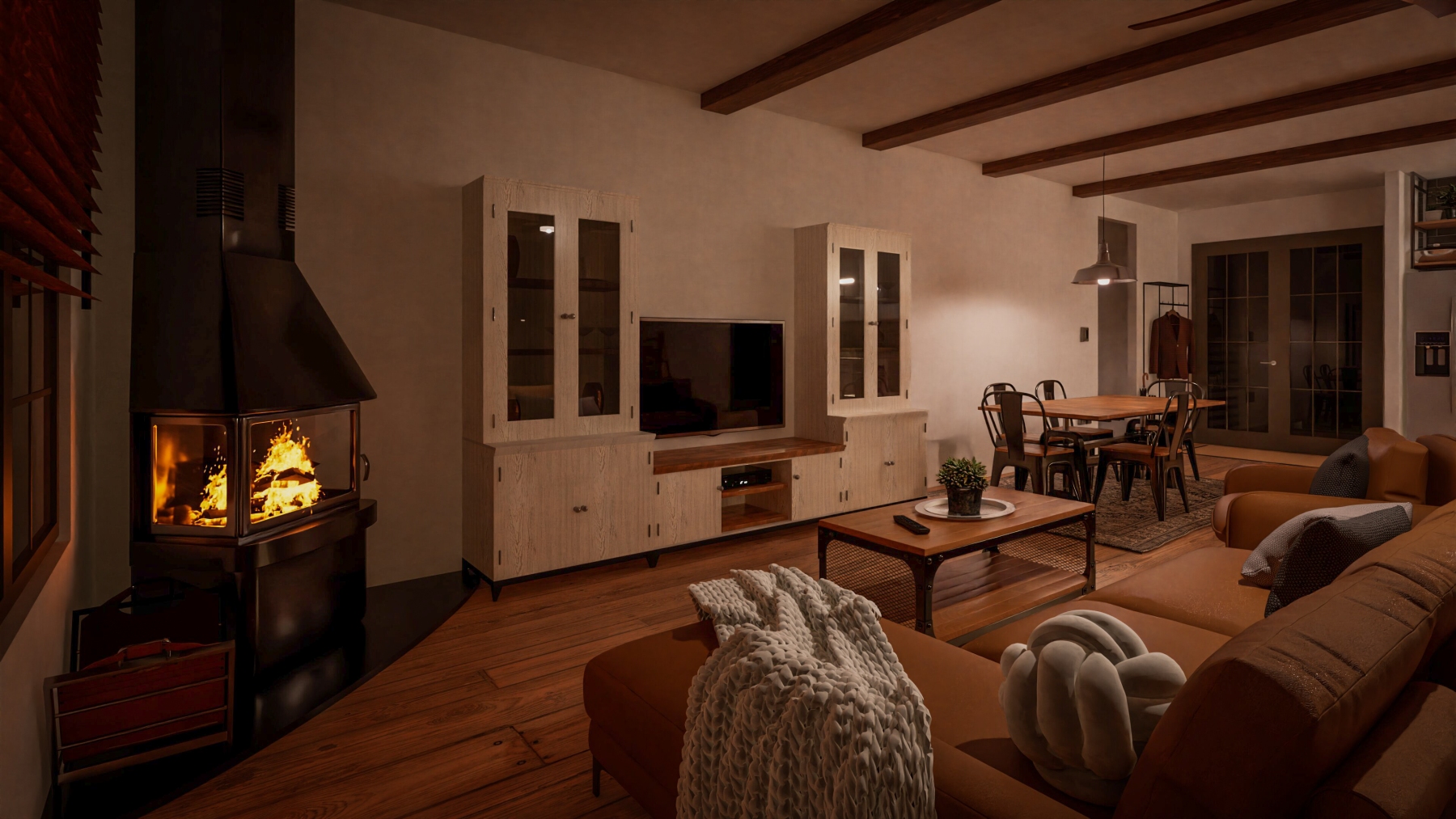

Interior

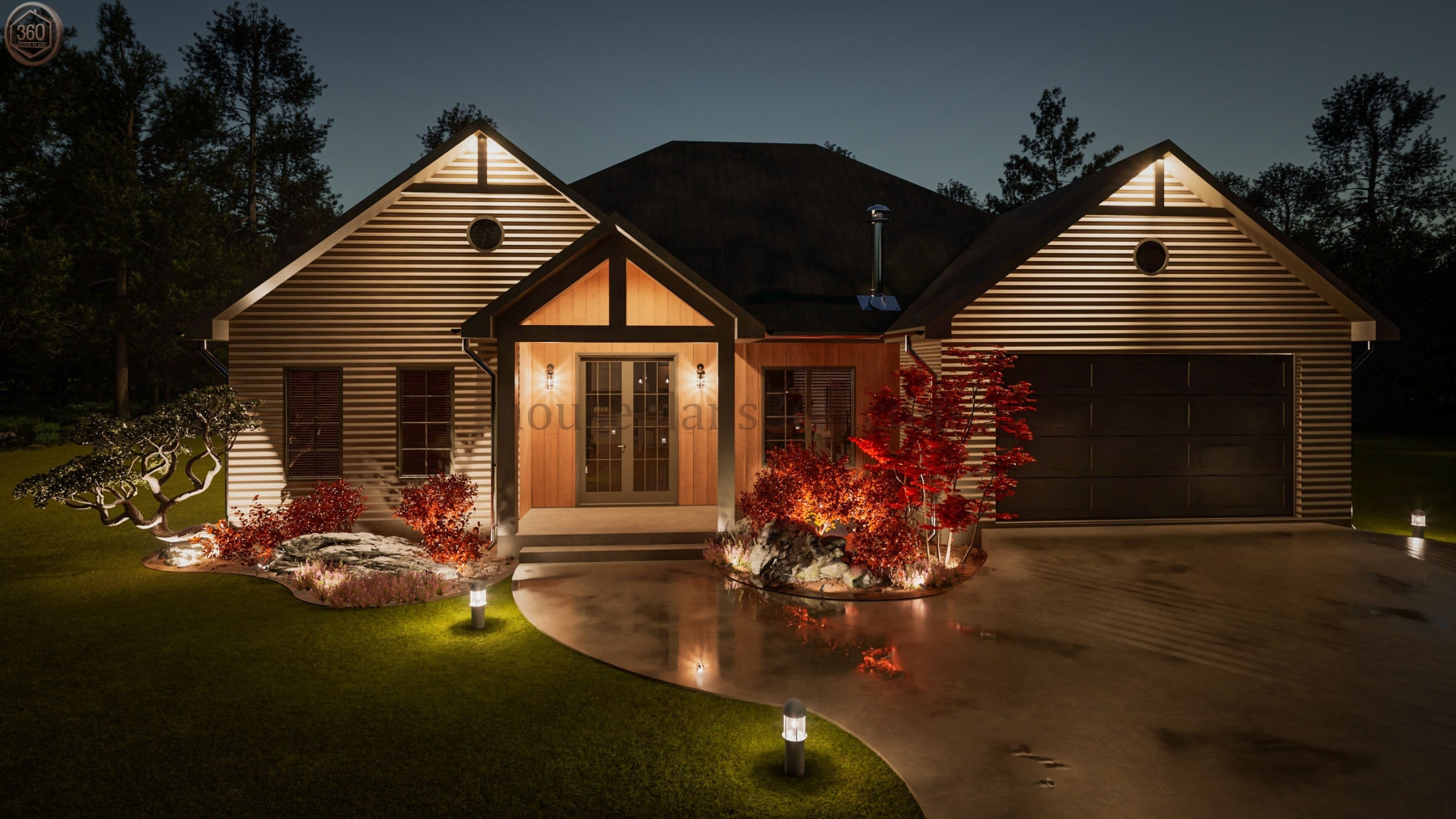

Reverse

What's included?

All plans are at a scale of 1:50 or ¼”=1′-0″ or larger, such as architectural nodes.

The following pages are included:

  • A site plan showing where the house will be located on the property (developed even before the selected project is paid for).
  • Floor plan(s), detailed plans with all necessary axis dimensions (as determined by your builder), rooms, window and door openings, floor marks, vent and chimney locations.
  • Furniture plan(s) showing the arrangement of furniture and other appliances shown on the website, as well as a description of the rooms.
  • Roof plan(s) with roof pitch marks and dimensions of all roof ribs.
  • Exterior Views: Drawing showing all four sides with dimensions and elevations.
  • Cross Sections: Vertical view of the house from foundation to roof, showing floor and roof markings. Floor elevations and other dimensions. Stair section, if any, is required.
  • Cross section: Vertical section through groups of ducts and chimneys.
  • Elements for filling door and window openings.
  • 3D views presented on the website.

As an example, you can download House Plan #1-17 using this link at the bottom of the page.

You may also need beams designed for roof loads, foundations based on an analysis of the soil conditions on the site specific to your region. Your home builder can usually help you with this.

Stock plans do not come with a professional stamp. If your building department requires one, they will only accept a stamp from a professional licensed in the state where you plan to build. In this case, you will need to take your home plans to a local engineer or architect to have them reviewed and stamped.
